YR29LV-MRSEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

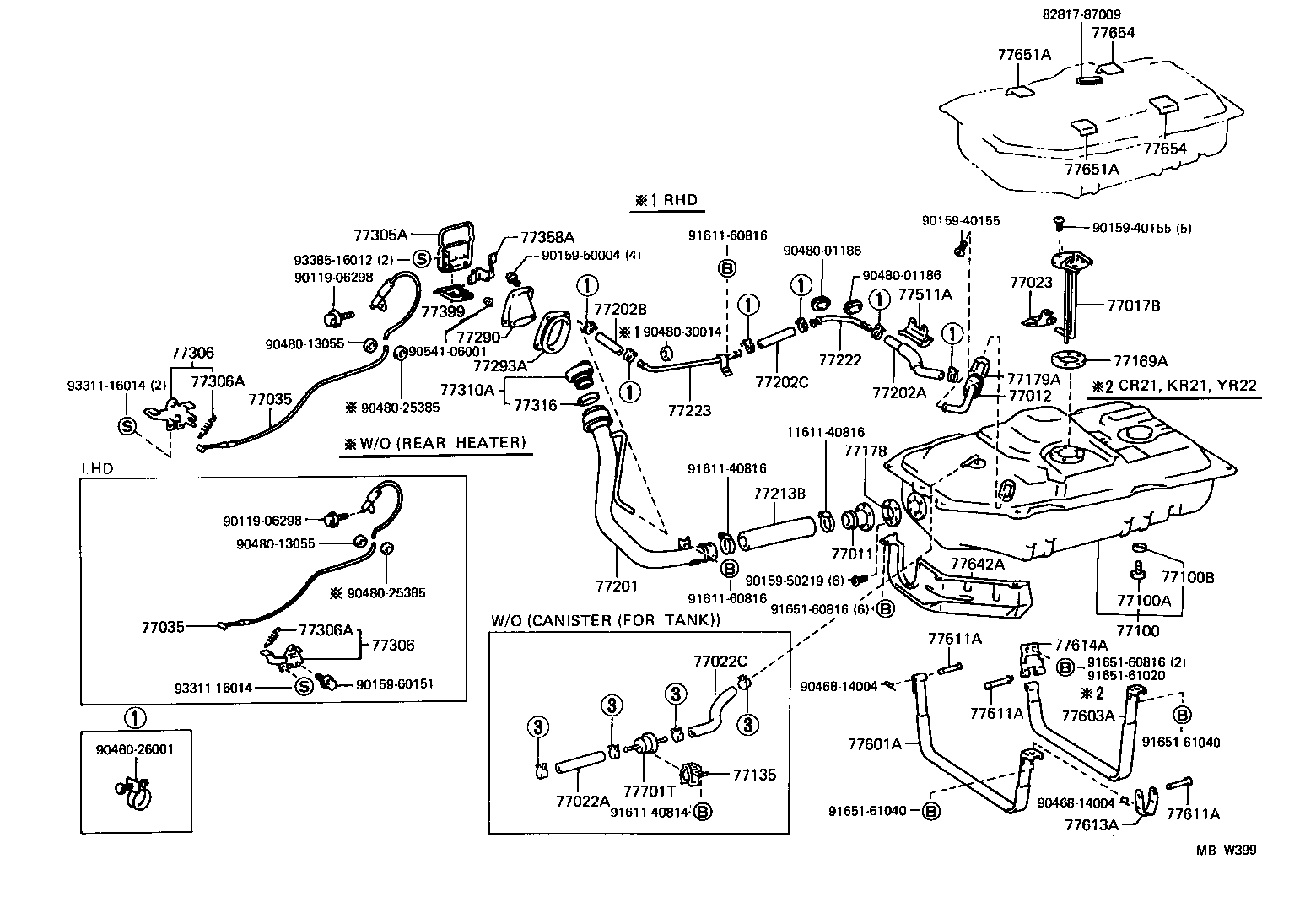

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

diagram 1161140816 77011 77012 77017B 77022A 77022C 77023 77035 77035 77100 77100A 77100B 77135 77169A 77178 77179A 77201 77202A 77202B 77202C 77213B 77222 77223 77290 77293A 77305A 77306 77306 77306A 77306A 77310A 77316 77358A 77399 77511A 77601A 77603A 77611A 77611A 77611A 77613A 77614A 77642A 77651A 77651A 77654 77654 77701T 8281787009 9011906298 9011906298 9015940155 9015940155 9015950004 9015950219 9015960151 9046026001 9046814004 9046814004 9048001186 9048001186 9048013055 9048013055 9048025385 9048025385 9048030014 9054106001 9161140814 9161140816 9161160816 9161160816 9165160816 9165160816 9165161020 9165161040 9165161040 9331116014 9331116014 9338516012
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-13010

CR2#,KR2#,YR2#

 1
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-28020

CR2#,KR2#,YR2#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06020

YR2#

*H,L=200

 1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06010

CR2#,KR2#,YR2#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-28050

CR2#,KR2#,YR2#..LHD

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-28050

CR2#,KR2#,YR2#..LHD

 1
77100 - TANK ASSY, FUEL
77001-28370

YR2#

 1
77001-28430

YR2#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

CR2#,KR2#,YR2#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

CR2#,KR2#,YR2#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-13020

CR2#,KR2#,YR2#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-14030

CR2#,KR2#,YR2#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-28070

YR2#

 1
77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77259-28030

CR2#,KR2#,YR2#

L=290

 1
77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
90445-24029

CR2#,KR2#,YR2#

 1
77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE)
90445-24010

CR2#,KR2#,YR2#

L=130

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77217-28010

CR2#,KR2#,YR2#

 1
77222 - TUBE, FUEL TANK BREATHER, NO.2
77222-28030

CR2#,KR2#,YR2#

 1
77223 - TUBE, FUEL TANK BREATHER, NO.3
77014-28010

CR2#,KR2#,YR2#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-28010

CR2#,KR2#,YR2#

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-28010

CR2#,KR2#,YR2#

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-28010

CR2#,KR2#,YR2#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28010

CR2#,KR2#,YR2#..LHD

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28010

CR2#,KR2#,YR2#..LHD

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

CR2#,KR2#,YR2#

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

CR2#,KR2#,YR2#

 1
77310A - CAP ASSY, FUEL TANK
77310-16011

KR2#,YR2#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

CR2#,KR2#,YR2#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-28030

CR2#,KR2#,YR2#

 1
77399 - HANGER, FUEL TANK CAP
77399-28020

CR2#,KR2#,YR2#

 1
77511A - BRACKET, FUEL TANK
77511-28050

CR2#,KR2#,YR2#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-28040

CR2#,KR2#,YR2#

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-28050

CR2#,KR2#,YR2#

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-28010

CR2#,KR2#,YR2#

L=77

 1
90240-08020

CR2#,KR2#,YR2#

L=73

 1
90240-08047

CR2#,KR2#,YR2#

L=85

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-28010

CR2#,KR2#,YR2#

L=77

 1
90240-08020

CR2#,KR2#,YR2#

L=73

 1
90240-08047

CR2#,KR2#,YR2#

L=85

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-28010

CR2#,KR2#,YR2#

L=77

 1
90240-08020

CR2#,KR2#,YR2#

L=73

 1
90240-08047

CR2#,KR2#,YR2#

L=85

 1
77613A - BRACKET, FUEL TANK BAND, NO.1
77613-28040

CR2#,KR2#,YR2#

 1
77614A - BAND, FUEL TANK, NO.2 RH
77614-28020

CR27,KR27,YR29

 1
77642A - PROTECTOR, FUEL TANK, NO.2
77606-28030

CR2#,KR2#,YR2#

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-28010

CR27,KR27,YR29

 3
77651A - CUSHION, FUEL TANK, NO.1
77651-28010

CR27,KR27,YR29

 3
77654 - CUSHION, FUEL TANK, NO.2
77651-28020

CR2#,KR2#,YR2#

 2
77654 - CUSHION, FUEL TANK, NO.2
77651-28020

CR2#,KR2#,YR2#

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069

YR2#

 1
90917-10082

YR2#

 1
Common parts
11611-40816
82817-87009
90119-06298
90159-40155
90159-50004
90159-50219
90159-60151
90460-26001
90468-14004
90480-01186
90480-13055
90480-25385
90480-30014
90541-06001
91611-40814
91611-40816
91611-60816
91651-60816
91651-61020
91651-61040
93311-16014
93385-16012

ILLUST NO. 2 OF 2(9201- )YR2#

Click highlighted areas on diagram

diagram 77022A 77022C 77249 77251B 77255D 77263 77277A 77277B 77281 77282 77701T 77740 77740A 77755 9046106156 9046110186 9046110769 9046112261 9046112262 9046400452 9046711009 9048001182 9048001182 9161160616 9161160814 9161160814 9161160814 9161160816 9161160816 9161160816 9165140816 9165140816 9613230600 9613230800
