YR29LV-MRSEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

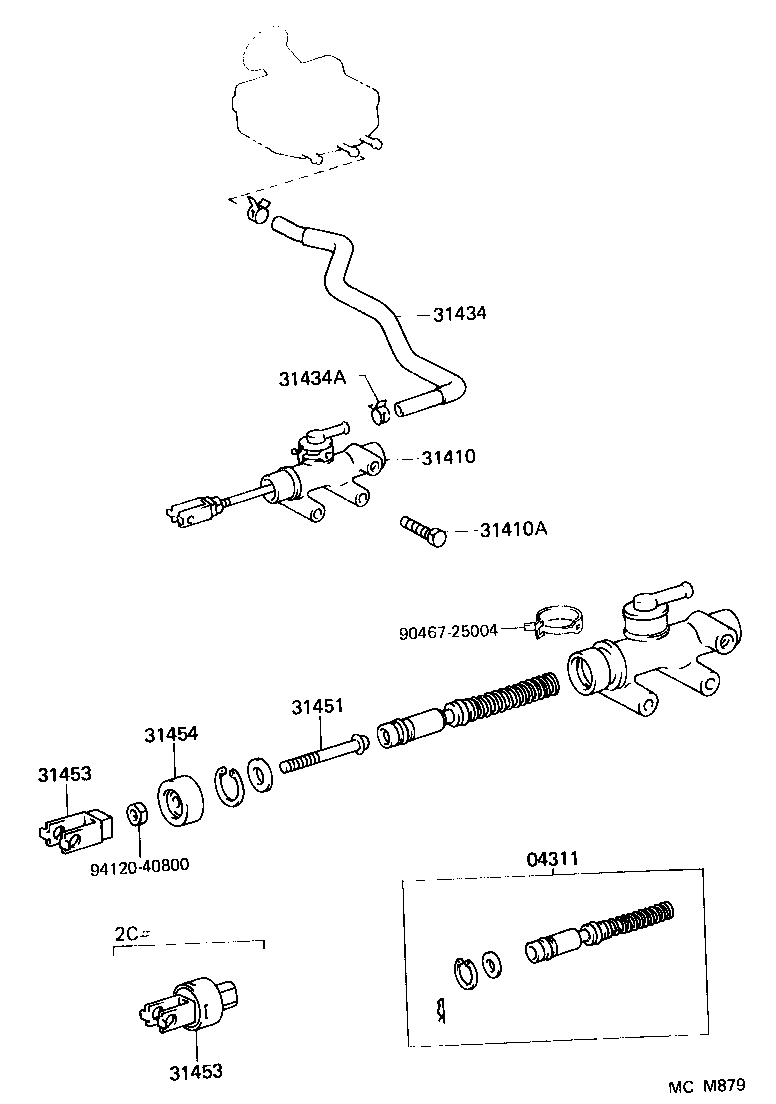

Click highlighted areas on diagram

diagram 04311 31410 31410A 31434 31434A 31451 31453 31453 31454 9046725004 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-30110

CR2#,YR2#..LHD

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-28130

CR2#,YR2#..LHD

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91611-60865

CR2#,KR2#,YR2#

 2
31434 - TUBE, CLUTCH RESERVOIR
31434-28060

CR2#,KR2#,YR2#..LHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96132-30800

CR2#,KR2#,YR2#..LHD

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35080

CR2#,YR2#

 1
31451-35080

CR2#,YR2#..LHD

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-28020

CR2#,YR2#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-28020

CR2#,YR2#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

CR2#,KR2#,YR2#

 1
Common parts
90467-25004
94120-40800
