YR29LV-MRSEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )4YEC

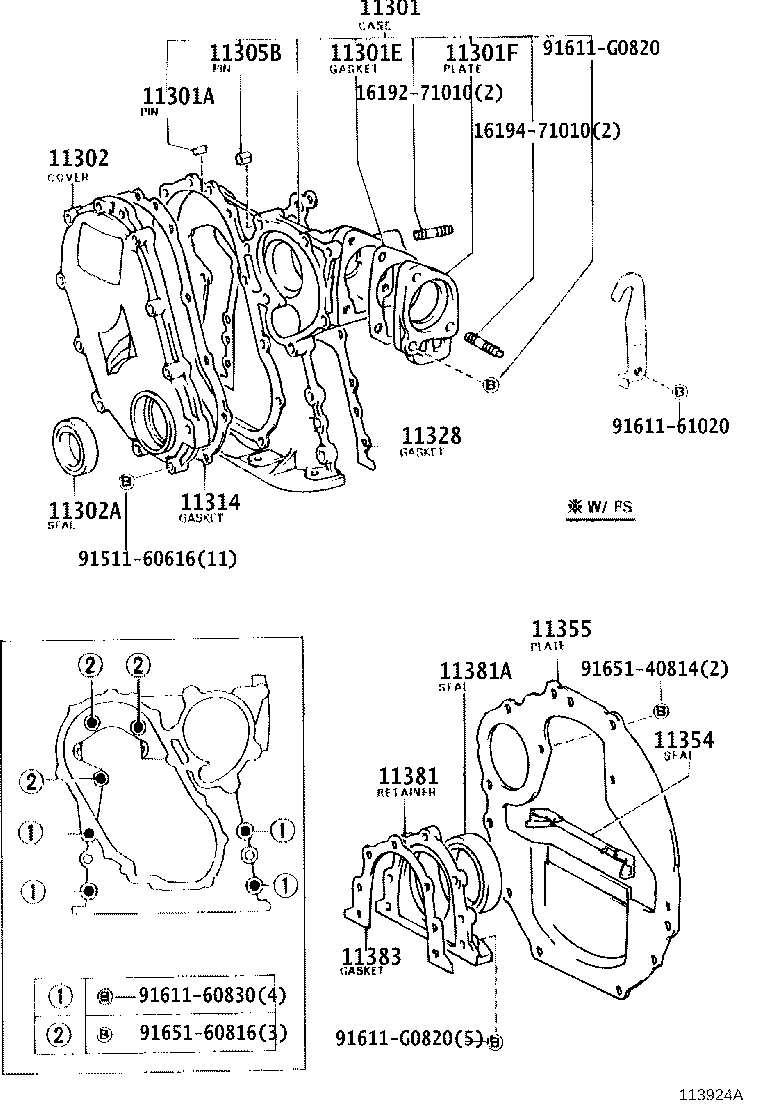

Click highlighted areas on diagram

diagram 11301 11301A 11301E 11301F 11302 11302A 11305B 11314 11328 11354 11355 11381 11381A 11383 1619271010 1619471010 9151160616 9161160830 9161161020 91611G0820 91611G0820 9165140814 9165160816
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-71010

4YEC..YR2#

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-06001

4YEC..YR2#

L=14,OD=6

 2
11301E - GASKET, THERMOSTAT GUIDE
16119-71011

4YEC..YR2#

 1
11301F - PLATE, WATER PUMP THERMOSTAT GUIDE
16128-71010

4YEC..YR2#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-71010

4YEC..YR2#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-42019

4YEC..YR2#

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
16159-71010

4YEC..YR2#

 2
11314 - GASKET, TIMING CHAIN NO.2 COVER
11329-71011

4YEC..YR2#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-71012

4YEC..YR2#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-71010

4YEC..YR2#

 1
11355 - PLATE, REAR END
11355-71010

4YEC..YR2#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-71010

4YEC..YR2#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80009

4YEC..YR2#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-71010

4YEC..YR2#

 1
Common parts
16192-71010
16194-71010
91511-60616
91611-60830
91611-61020
91611-G0820
91651-40814
91651-60816
