YR29LV-MRSBEEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

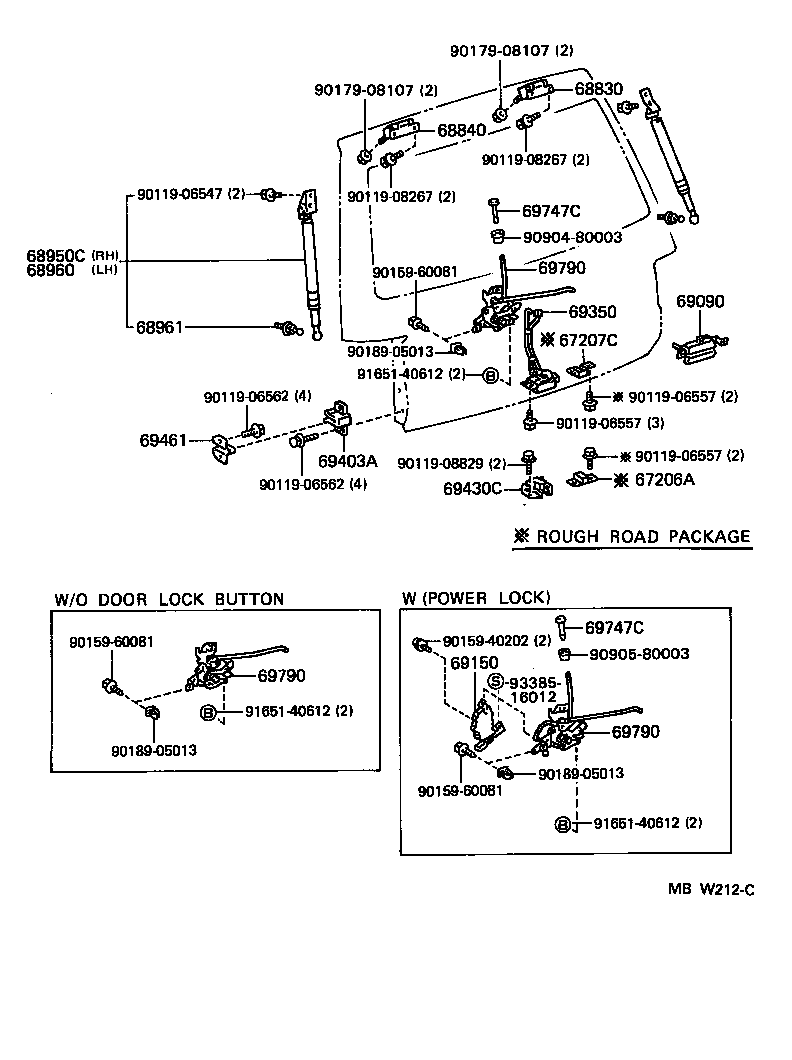

Click highlighted areas on diagram

diagram 67206A 67207C 68830 68840 68950C 68960 68961 69090 69150 69350 69403A 69430C 69461 69747C 69747C 69790 69790 69790 9011906547 9011906557 9011906557 9011906557 9011906562 9011906562 9011908267 9011908267 9011908829 9015940202 9015960081 9015960081 9015960081 9017908107 9017908107 9018905013 9018905013 9018905013 9090480003 9090580003 9165140612 9165140612 9165140612 9338516012
Part # Description Qty Price
67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER
67206-95J00

CR2#,KR2#,YR2#

 1
67207C - STOPPER SUB-ASSY, BACK DOOR
67207-95J01

CR2#,KR2#,YR2#

 1
68830 - HINGE ASSY, BACK DOOR, RH
68801-87003

CR2#,KR2#,YR2#

 1
68840 - HINGE ASSY, BACK DOOR, LH
68801-87003

CR27,KR27,YR29

 1
68801-87004

CR27,KR27,YR29

W(REAR WIPER)

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-80011

CR27,KR27,YR29

W(REAR WIPER)

 1
68950-80012

CR27,KR27,YR29

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-29775

CR27,KR27,YR29

 1
68960-29765

CR27,KR27,YR29

W(REAR WIPER)

 1
68961 - BOLT, BACK DOOR STAY
68961-87003

CR2#,KR2#,YR2#

 2
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-28010

CR2#,KR2#,YR2#

 1
69090-28020

CR2#,KR2#,YR2#

 1
69150 - ACTUATOR ASSY, BACK DOOR LOCK
69150-28010

CR2#,KR2#,YR2#..LHD

 1
69350 - LOCK ASSY, BACK DOOR
69350-28030

CR2#,KR2#,YR2#

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95J05

CR2#,KR2#,YR2#

 2
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-28020

CR2#,KR2#,YR2#

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69461-95J03

CR2#,KR2#,YR2#

 2
69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR)
69743-87001

CR2#,KR2#,YR2#

 1
69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR)
69743-87001

CR2#,KR2#,YR2#

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-28070

CR27,KR27,YR29

W(EMERGENCY LEVER)

 1
69709-28020

CR27,KR27,YR29..LHD

W(POWER LOCK)

 1
69709-28010

CR27,KR27,YR29..LHD

W(POWER LOCK & EMERGENCY LEVER)

 1
69790-28090

CR27,KR27,YR29

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-28070

CR27,KR27,YR29

W(EMERGENCY LEVER)

 1
69709-28020

CR27,KR27,YR29..LHD

W(POWER LOCK)

 1
69709-28010

CR27,KR27,YR29..LHD

W(POWER LOCK & EMERGENCY LEVER)

 1
69790-28090

CR27,KR27,YR29

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-28070

CR27,KR27,YR29

W(EMERGENCY LEVER)

 1
69709-28020

CR27,KR27,YR29..LHD

W(POWER LOCK)

 1
69709-28010

CR27,KR27,YR29..LHD

W(POWER LOCK & EMERGENCY LEVER)

 1
69790-28090

CR27,KR27,YR29

 1
Common parts
90119-06547
90119-06557
90119-06562
90119-08267
90119-08829
90159-40202
90159-60081
90179-08107
90189-05013
90904-80003
90905-80003
91651-40612
93385-16012
