YR29LV-MRSBEEW (1992)
Toyota Liteace Van Wagon

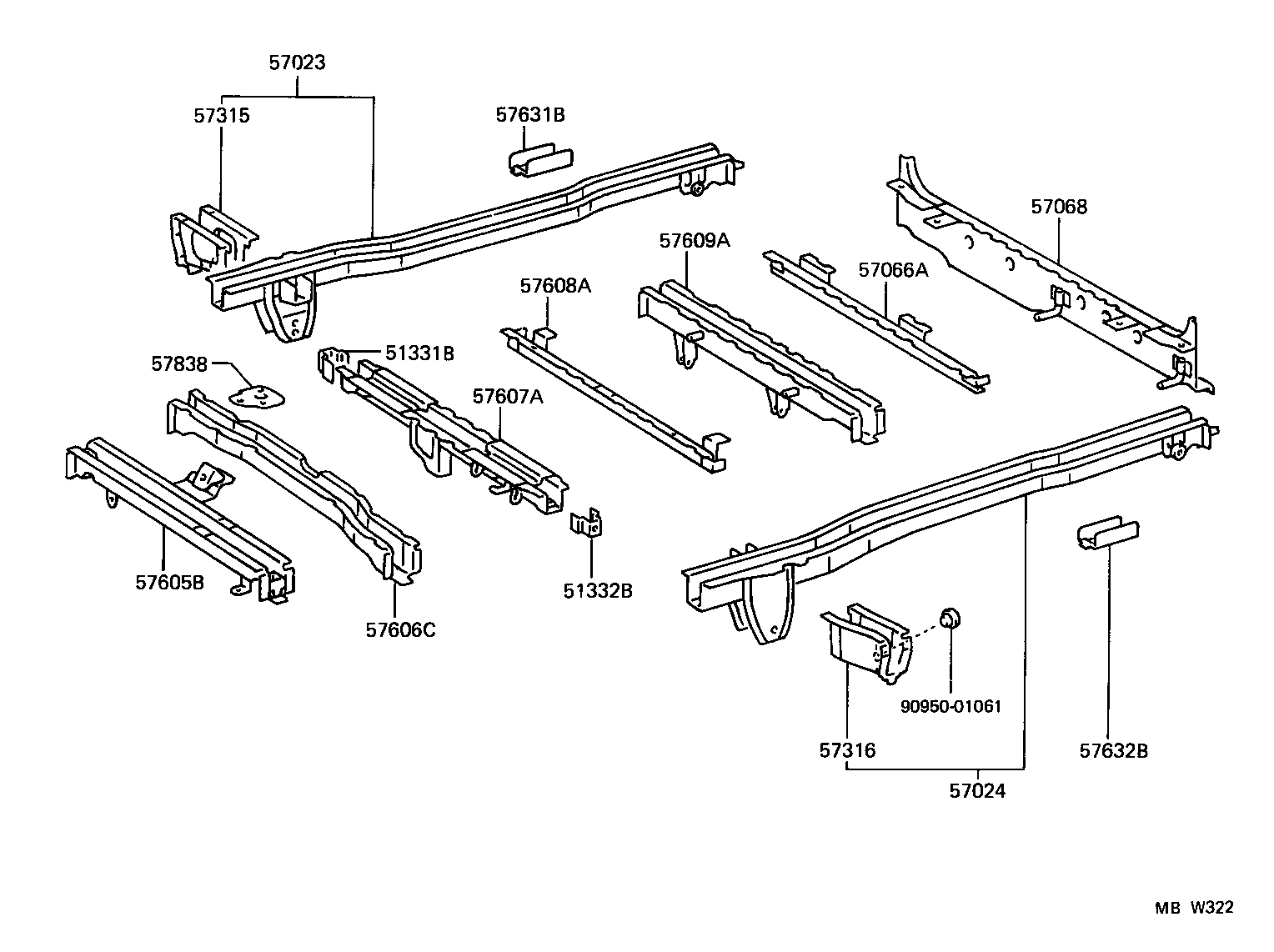

ILLUST NO. 1 OF 2(9201- )CR27,KR27,YR29
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51331B - GUSSET, FRAME NO.3 CROSSMEMBER, RH | ||||
| 51331-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 51332B - GUSSET, FRAME NO.3 CROSSMEMBER, LH | ||||
| 51332-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-28320 |
YR29..02S;CR27,KR27..LHD ROUGH ROAD PACKAGE |
1 | ||
| 57023-28330 |
CR27,KR27,YR29..LHD W(4 TIE DOWN HOOK) |
1 | ||
| 57023-28180 |
CR27,KR27,YR29..LHD |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-28270 |
CR27,KR27,YR29..LHD..4D |
1 | ||
| 57024-28330 |
YR29..02S;CR27,KR27..LHD..4D W(4 TIE DOWN HOOK) & ROUGH ROAD PACKAGE |
1 | ||
| 57024-28280 |
CR27,KR27,YR29..LHD..4D ROUGH ROAD PACKAGE |
1 | ||
| 57066A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-28020 |
CR27,KR27,YR29 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-28130 |
YR29 |
1 | ||
| 57068-28140 |
YR29 ROUGH ROAD PACKAGE |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-28080 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57315-87004 |
CR2#,KR2#,YR2#..LHD..4D |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-28220 |
CR27,KR27,YR29 |
1 | ||
| 57605-28250 |
CR27,KR27,YR29 ROUGH ROAD PACKAGE |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-28230 |
CR27,KR27,YR29 |
1 | ||
| 57606-28250 |
CR27,YR29 |
1 | ||
| 57606-28250 |
CR2#,KR2#,YR2# ROUGH ROAD PACKAGE |
1 | ||
| 57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-28090 |
KR27,YR29..02S |
1 | ||
| 57608A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-28060 |
CR27,KR27,YR29 |
1 | ||
| 57609A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-28060 |
CR27,KR27,YR29 ROUGH ROAD PACKAGE |
1 | ||
| 57609-28020 |
CR27,KR27,YR29 |
1 | ||
| 57609-28070 |
CR27,KR27,YR29 ROUGH ROAD PACKAGE |
1 | ||
| 57631B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH | ||||
| 57631-28020 |
CR27,KR27,YR29 |
1 | ||
| 57632B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH | ||||
| 57632-28020 |
CR27,KR27,YR29 |
1 | ||
| Common parts | ||||
| 90950-01061 | ||||

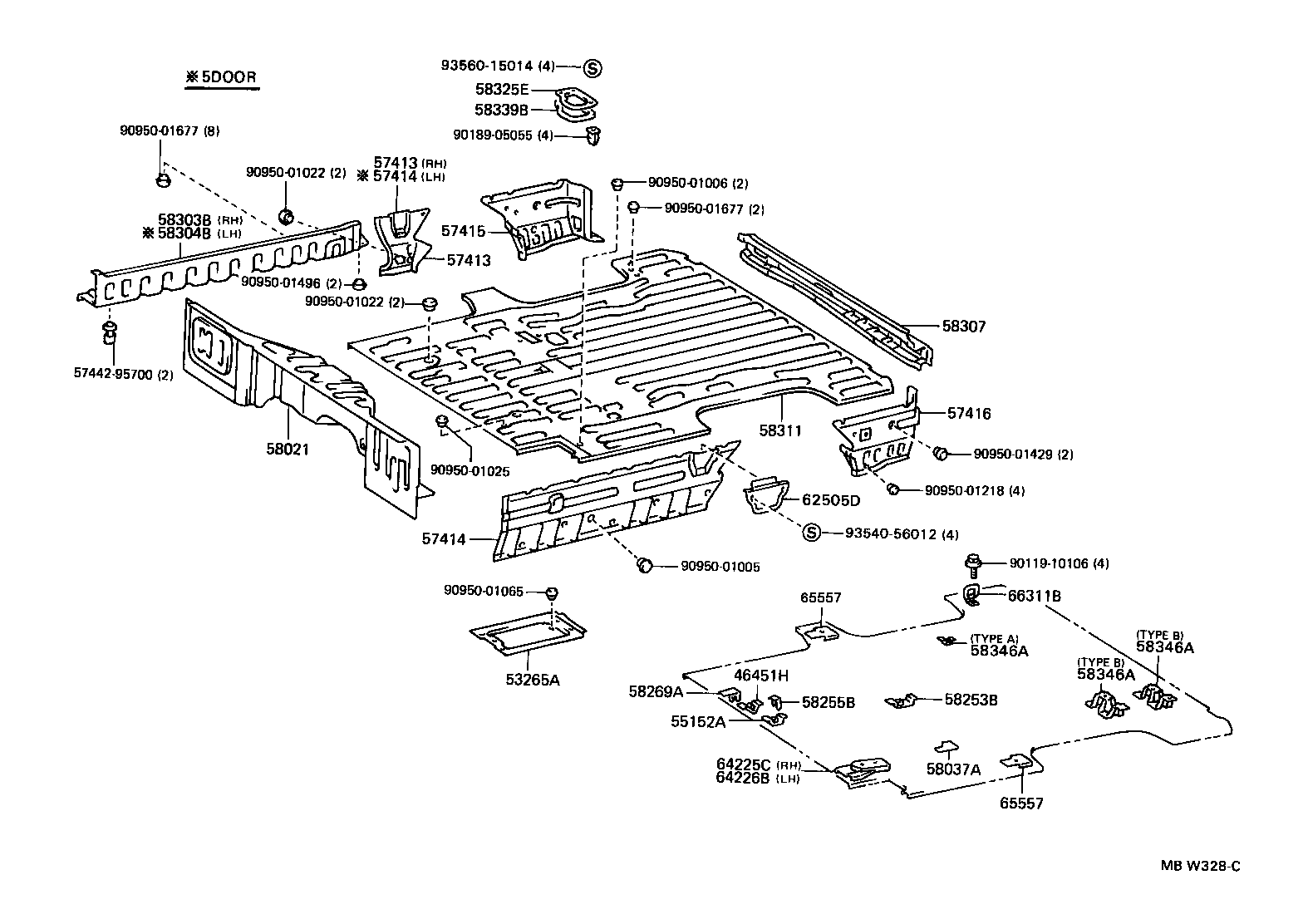

ILLUST NO. 2 OF 2(9201- )CR27,KR27,YR29
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46451H - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-87005 |
CR2#,KR2#,YR2# |
1 | ||
| 53265A - REINFORCEMENT, BATTERY CARRIER MOUNTING | ||||
| 53266-28050 |
CR27,KR27,YR29..LHD..4D |
1 | ||
| 55152A - BRACKET, 3 WAY ATTACHING | ||||
| 55152-87001 |
CR27,KR27,YR29 |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-28150 |
CR27,KR27,YR29..LHD..02S |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-28150 |
CR27,KR27,YR29..LHD..02S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-28060 |
CR27,KR27,YR29..LHD..4D..02S |
1 | ||
| 57406-28120 |
CR27,KR27,YR29..LHD..4D..02S ROUGH ROAD PACKAGE |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-28060 |
CR27,KR27,YR29..LHD..4D..02S |
1 | ||
| 57406-28120 |
CR27,KR27,YR29..LHD..4D..02S ROUGH ROAD PACKAGE |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-28040 |
CR27,KR27,YR29 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-28080 |
CR27,KR27,YR29 |
1 | ||
| 57048-28040 |
CR2#,YR2# |
1 | ||
| 58021 - PANEL SUB-ASSY, HEADER | ||||
| 58021-28190 |
YR29 |
1 | ||
| 58021-28580 |
YR29 W(ROOM SEPARATOR BOARD) |
1 | ||
| 58037A - RETAINER SUB-ASSY, REAR FLOOR SEAT LOCK | ||||
| 58253-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 58253B - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58267-87003 |
CR2#,KR2#,YR2# |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-28020 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-28020 |
CR2#,KR2#,YR2# ROUGH ROAD PACKAGE |
1 | ||
| 58307-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-28380 |
CR27,KR27,YR29..LHD..4D..02S |
1 | ||
| 58311-28420 |
CR27,KR27,YR29..LHD..4D..02S W(4 TIE DOWN HOOK) |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 58339B - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 44797-28020 |
CR27,KR27,YR29 TYPE A |
1 | ||
| 44797-28040 |
CR27,KR27,YR29 TYPE B |
2 | ||
| 44797-87004 |
CR27,KR27,YR29 TYPE B |
2 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 44797-28020 |
CR27,KR27,YR29 TYPE A |
1 | ||
| 44797-28040 |
CR27,KR27,YR29 TYPE B |
2 | ||
| 44797-87004 |
CR27,KR27,YR29 TYPE B |
2 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 44797-28020 |
CR27,KR27,YR29 TYPE A |
1 | ||
| 44797-28040 |
CR27,KR27,YR29 TYPE B |
2 | ||
| 44797-87004 |
CR27,KR27,YR29 TYPE B |
2 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-28030 |
CR27,KR27;YR29..02S |
2 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-28030 |
CR27,KR27;YR29..02S |
2 | ||
| 66311B - HOOK, ROPE | ||||
| 66311-28010 |
CR27,KR27;YR29..02S |
4 | ||
| 66311-95J00 |
CR27,KR27;YR29..02S |
4 | ||
| Common parts | ||||
| 57442-95700 | ||||
| 90119-10106 | ||||
| 90189-05055 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01022 | ||||
| 90950-01025 | ||||
| 90950-01065 | ||||
| 90950-01218 | ||||
| 90950-01429 | ||||
| 90950-01496 | ||||
| 90950-01677 | ||||
| 93540-56012 | ||||
| 93560-15014 | ||||
