YR29LV-MRSBEEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

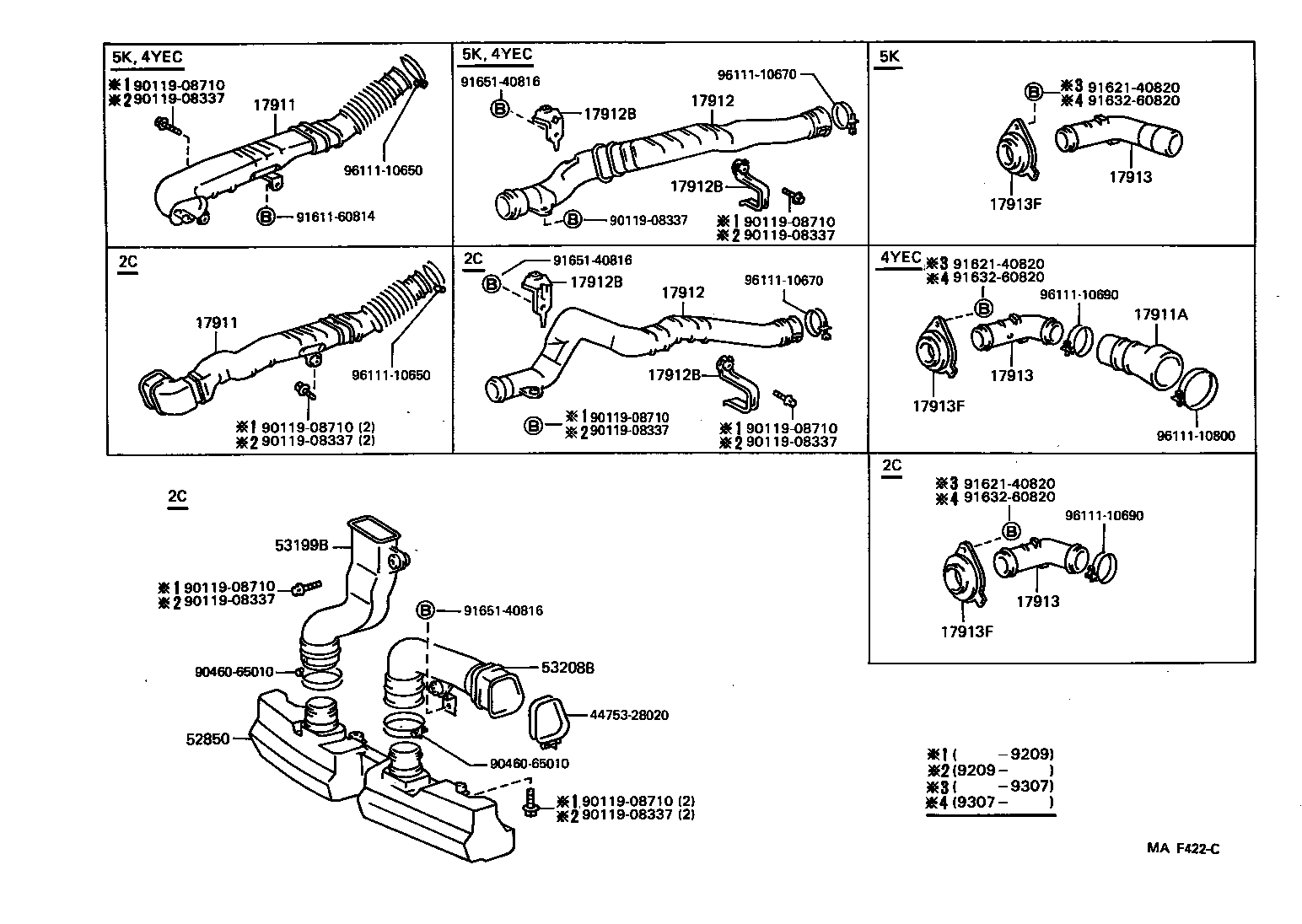

ILLUST NO. 2 OF 2(9201- )4YEC

Click highlighted areas on diagram

diagram 17911 17911 17911A 17912 17912 17912B 17912B 17912B 17912B 17913 17913 17913 17913F 17913F 17913F 4475328020 52850 53199B 53208B 9011908337 9011908337 9011908337 9011908337 9011908337 9011908337 9011908337 9011908337 9011908710 9011908710 9011908710 9011908710 9011908710 9011908710 9011908710 9046065010 9046065010 9161160814 9162140820 9162140820 9162140820 9163260820 9163260820 9163260820 9165140816 9165140816 9165140816 9611110650 9611110650 9611110670 9611110670 9611110690 9611110690 9611110800
Part # Description Qty Price
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-87002

4YEC..YR2#

 1
52810-87002

4YEC..YR2#

 1
52810-87002

4YEC..YR2#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-87002

4YEC..YR2#

 1
52810-87002

4YEC..YR2#

 1
52810-87002

4YEC..YR2#

 1
17911A - HOSE, COOL AIR INTAKE, NO.1
52831-87002

4YEC..YR2#

 1
52831-87002

4YEC..YR2#

 1
52831-87002

4YEC..YR2#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-87005

4YEC..YR2#

 1
52820-87005

4YEC..YR2#

 1
52820-87005

4YEC..YR2#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-87005

4YEC..YR2#

 1
52820-87005

4YEC..YR2#

 1
52820-87005

4YEC..YR2#

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52852-87002

4YEC..YR2#

NO.2

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
52805-87002

4YEC..YR2#

NO.1

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52815-87001

4YEC..YR2#

 1
52815-87001

4YEC..YR2#

 1
52815-87001

4YEC..YR2#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52815-87001

4YEC..YR2#

 1
52815-87001

4YEC..YR2#

 1
52815-87001

4YEC..YR2#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52815-87001

4YEC..YR2#

 1
52815-87001

4YEC..YR2#

 1
52815-87001

4YEC..YR2#

 1
17913F - FLANGE, COOL AIR INTAKE DUCT, NO.3
52809-28020

4YEC..YR2#

 1
52809-28020

4YEC..YR2#

 1
52809-28020

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
17913F - FLANGE, COOL AIR INTAKE DUCT, NO.3
52809-28020

4YEC..YR2#

 1
52809-28020

4YEC..YR2#

 1
52809-28020

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
17913F - FLANGE, COOL AIR INTAKE DUCT, NO.3
52809-28020

4YEC..YR2#

 1
52809-28020

4YEC..YR2#

 1
52809-28020

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
52809-87001

4YEC..YR2#

 1
Common parts
44753-28020
90119-08337
90119-08710
90460-65010
91611-60814
91621-40820
91632-60820
91651-40816
96111-10650
96111-10670
96111-10690
96111-10800

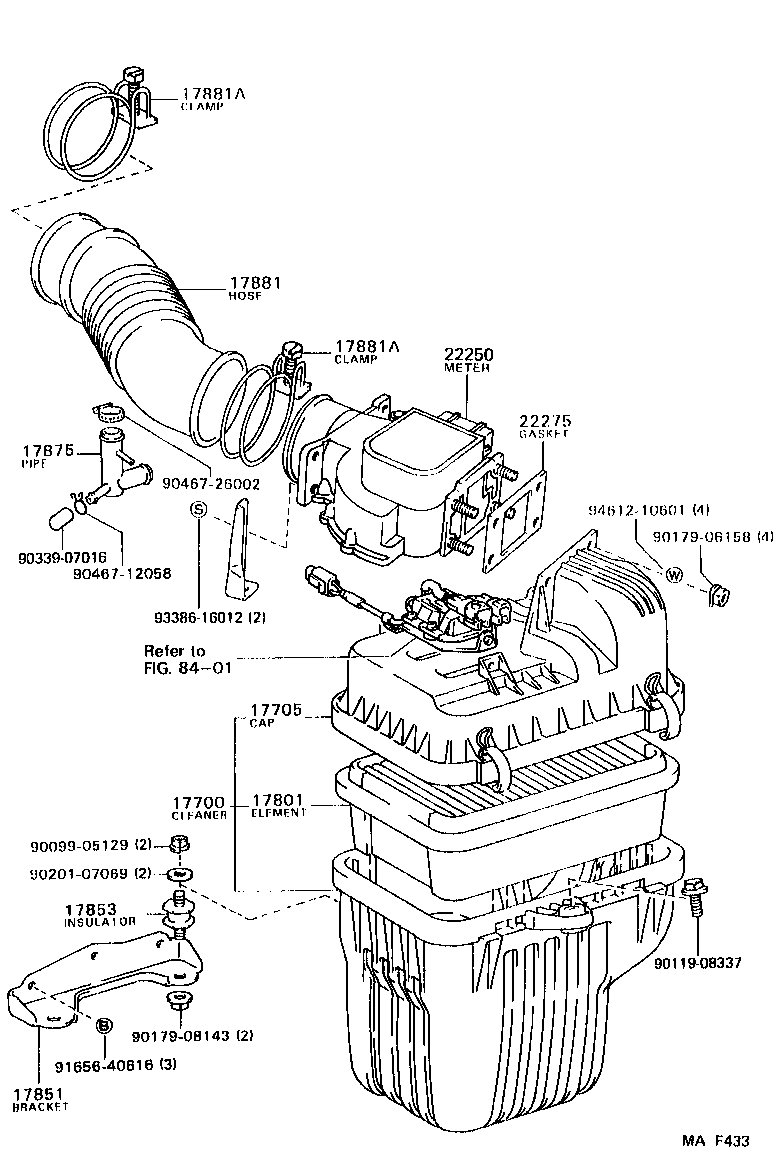

ILLUST NO. 1 OF 2(9201- )4YEC

Click highlighted areas on diagram

diagram 17700 17705 17801 17851 17853 17875 17881 17881A 17881A 22250 22275 8401 9009905129 9011908337 9017906158 9017908143 9020107069 9033907016 9046712058 9046726002 9165640616 9338616012 9461210601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-73043

4YEC..YR2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-73011

4YEC..YR2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-70010

4YEC..YR2#

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-73020

4YEC..YR2#

 1
17853 - INSULATOR, AIR CLEANER BRACKET
17853-73020

4YEC..YR2#

 2
17875 - PIPE, INTAKE AIR CONNECTOR
17875-73011

4YEC..YR2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-73020

4YEC..YR2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4YEC..YR2#

THROTTLE BODY SIDE

 1
96111-10800

4YEC..YR2#

AIR FLOW METER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4YEC..YR2#

THROTTLE BODY SIDE

 1
96111-10800

4YEC..YR2#

AIR FLOW METER SIDE

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-73010

4YEC..YR2#

 1
22275 - GASKET, AIR FLOW METER
22275-41010

4YEC..YR2#

 1
Common parts
90099-05129
90119-08337
90179-06158
90179-08143
90201-07069
90339-07016
90467-12058
90467-26002
91656-40616
93386-16012
94612-10601
Linked diagrams
8401
