YR29LV-MRSBEEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )4YEC

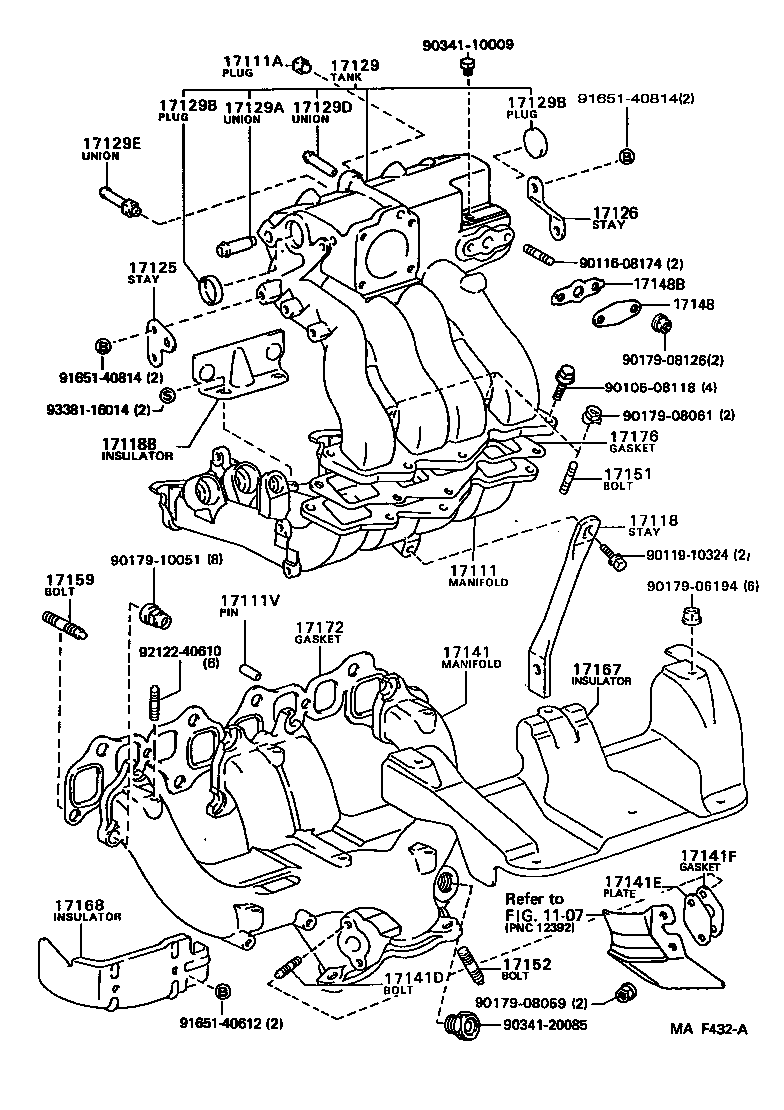

Click highlighted areas on diagram

diagram 1107 17111 17111A 17111V 17118 17118B 17125 17126 17129 17129A 17129B 17129B 17129D 17129E 17141 17141D 17141E 17141F 17148 17148B 17151 17152 17159 17167 17168 17172 17176 9010508118 9011608174 9011910324 9017906194 9017908059 9017908061 9017908126 9017910051 9034110009 9034120085 9165140612 9165140814 9165140814 9212240610 9338116014
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-73011

4YEC..YR2#

 1
17111A - PLUG, NO.1
90345-51006

4YEC..YR2#

 2
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

4YEC..YR2#

 4
17118 - STAY, MANIFOLD
17118-73010

4YEC..YR2#

 1
17118B - INSULATOR, INTAKE MANIFOLD
17853-73012

4YEC..YR2#

 1
17125 - STAY, SURGE TANK, NO.1
17125-73010

4YEC..YR2#

 1
17126 - STAY, SURGE TANK, NO.2
17126-73010

4YEC..YR2#

 1
17129 - TANK, INTAKE AIR SURGE
17109-73020

4YEC..YR2#

 1
17129A - UNION, NO.1
90405-14003

4YEC..YR2#

 1
17129B - PLUG
96411-43500

4YEC..YR2#

 2
17129B - PLUG
96411-43500

4YEC..YR2#

 2
17129D - UNION, NO.2
90405-10010

4YEC..YR2#

 1
17129E - UNION, NO.3
90404-51237

4YEC..YR2#

 1
17141 - MANIFOLD, EXHAUST
17141-72010

4YEC..YR2#

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

4YEC..YR2#

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-41010

4YEC..YR2#

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-20020

4YEC..YR2#

 1
17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
25617-73010

4YEC..YR2#

 1
17148B - GASKET, EGR INLET
25627-73010

4YEC..YR2#

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92132-40825

4YEC..YR2#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

4YEC..YR2#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

4YEC..YR2#

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-73011

4YEC..YR2#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

4YEC..YR2#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-73010

4YEC..YR2#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-73012

4YEC..YR2#

 1
Common parts
90105-08118
90116-08174
90119-10324
90179-06194
90179-08059
90179-08061
90179-08126
90179-10051
90341-10009
90341-20085
91651-40612
91651-40814
92122-40610
93381-16014
Linked diagrams
1107
