YR22LG-MDSEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

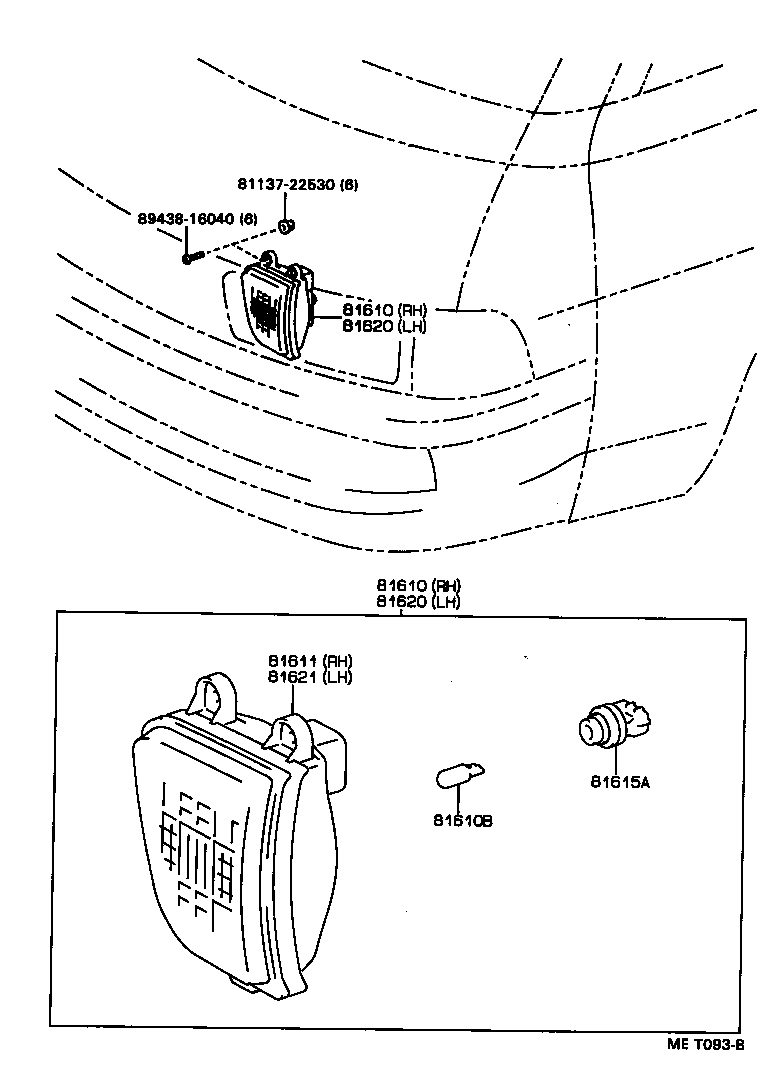

Click highlighted areas on diagram

diagram 8113722530 81610 81610 81610B 81611 81615A 81620 81620 81621 8943816040
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-28030

CR21,KR21,YR22

 1
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-28030

CR21,KR21,YR22

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

CR21,KR21,YR22

12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-28030

CR21,KR21,YR22

 1
81615A - SOCKET PLUG, CLEARANCE LAMP
90075-99085

CR21,KR21,YR22

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-28040

CR21,KR21,YR22

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-28040

CR21,KR21,YR22

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-28040

CR21,KR21,YR22

 1
Common parts
81137-22530
89438-16040
