YR22LG-MDSEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )LHD

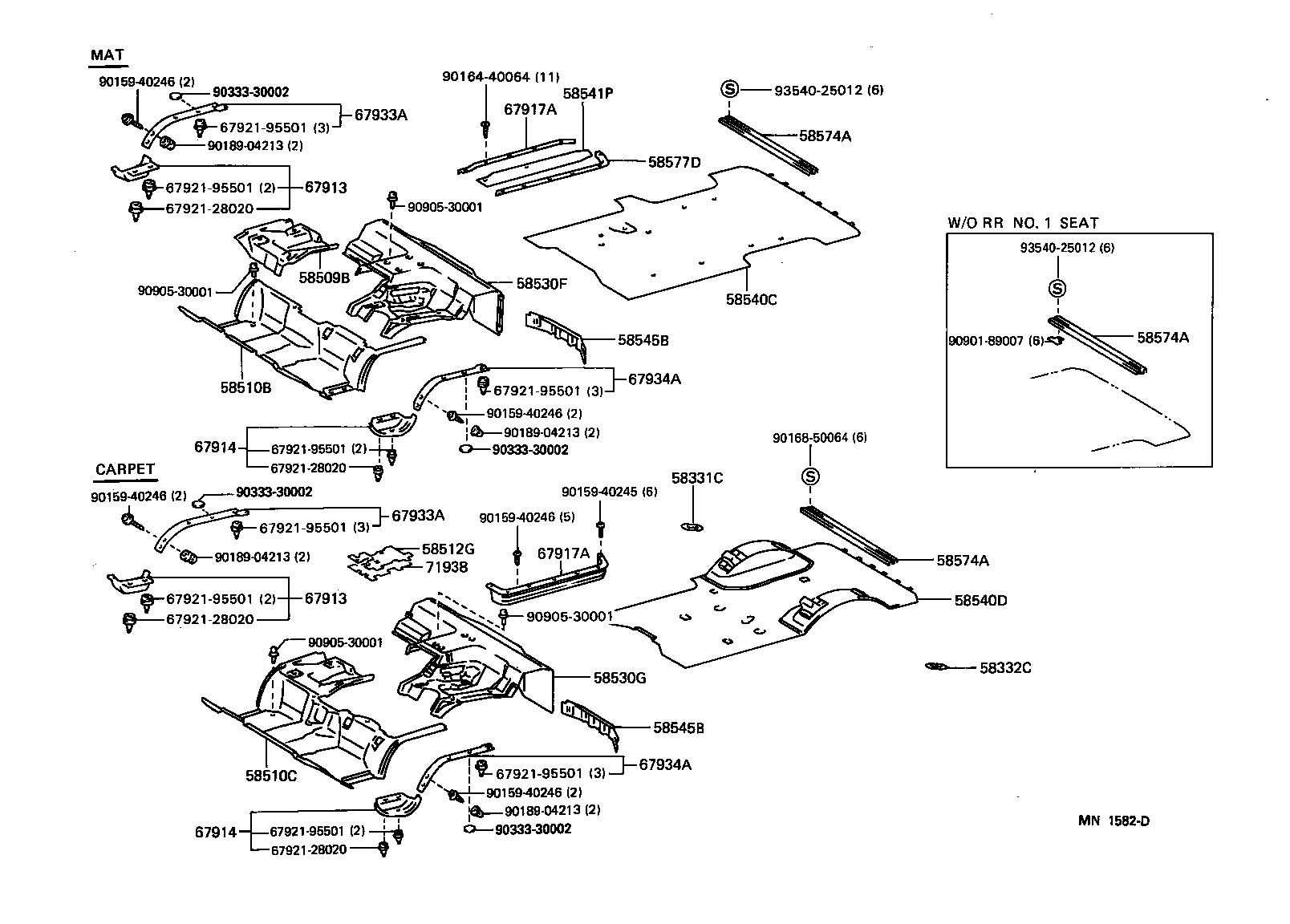

Click highlighted areas on diagram

diagram 58331C 58332C 58509B 58510B 58510C 58512G 58530F 58530G 58540C 58540D 58541P 58545B 58545B 58574A 58574A 58574A 58577D 67913 67913 67914 67914 67917A 67917A 6792128020 6792128020 6792128020 6792128020 6792195501 6792195501 6792195501 6792195501 6792195501 6792195501 6792195501 6792195501 67933A 67933A 67934A 67934A 71938 9015940245 9015940246 9015940246 9015940246 9015940246 9015940246 9016440064 9016850064 9018904213 9018904213 9018904213 9018904213 9033330002 9033330002 9033330002 9033330002 9090189007 9090530001 9090530001 9090530001 9090530001 9354025012 9354025012
Part # Description Qty Price
58331C - COVER, REAR FLOOR SIDE SERVICE HOLE, RH
58331-87001B2

CR21,KR21,YR22

GRAY,TRIM1#

 1
58331-28010

CR21,KR21,YR22

 1
58332C - COVER, REAR FLOOR SIDE SERVICE HOLE, LH
58332-28050

CR21,KR21,YR22

 1
58332-87002B2

CR21,KR21,YR22

GRAY,TRIM1#

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2J040B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58510-2J660B1

CR21,KR21,YR22

GRAY,TRIM1#

 1
58510-2J042B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58510-2J041B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58510-2J041B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58512G - SILENCER, FRONT FLOOR, NO.2
58512-87005

CR21,KR21,YR22

 1
58530G - CARPET ASSY, HEADER
58530-28880B1

CR21,KR21,YR22

GRAY,TRIM1#

 1
58530-28241B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58530-28240B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58530-28241B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-2J010B1

CR21,KR21,YR22

GRAY,TRIM1#

 1
58540-28230B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
58545B - SILENCER, HEADER PANEL
58545-87001

KR27..LHD;CR2#,KR21,YR2#

 1
58545B - SILENCER, HEADER PANEL
58545-87001

KR27..LHD;CR2#,KR21,YR2#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-28020B1

CR21,KR21,YR22

GRAY,TRIM1#

 1
58574-28030

CR2#,KR2#,YR2#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-28020B1

CR21,KR21,YR22

GRAY,TRIM1#

 1
58574-28030

CR2#,KR2#,YR2#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-28020B1

CR21,KR21,YR22

GRAY,TRIM1#

 1
58574-28030

CR2#,KR2#,YR2#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67910-28010B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67910-28010B0

CR21,KR21,YR22

GRAY,TRIM1#

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
67933-28011B0

CR2#,YR2#

GRAY,TRIM1#

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
67933-28011B0

CR2#,YR2#

GRAY,TRIM1#

 1
67934A - PLATE, FRONT DOOR SCUFF, REAR LH
67934-28011B0

CR2#,YR2#

GRAY,TRIM1#

 1
67934-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
67934A - PLATE, FRONT DOOR SCUFF, REAR LH
67934-28011B0

CR2#,YR2#

GRAY,TRIM1#

 1
67934-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
71938 - PAD, ENGINE SERVICE HOLE COVER, NO.2
71938-87003

CR21,KR21,YR22

 1
Common parts
67921-28020
67921-95501
90159-40245
90159-40246
90164-40064
90168-50064
90189-04213
90333-30002
90901-89007
90905-30001
93540-25012
