YR22LG-MDSEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 4YEC
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

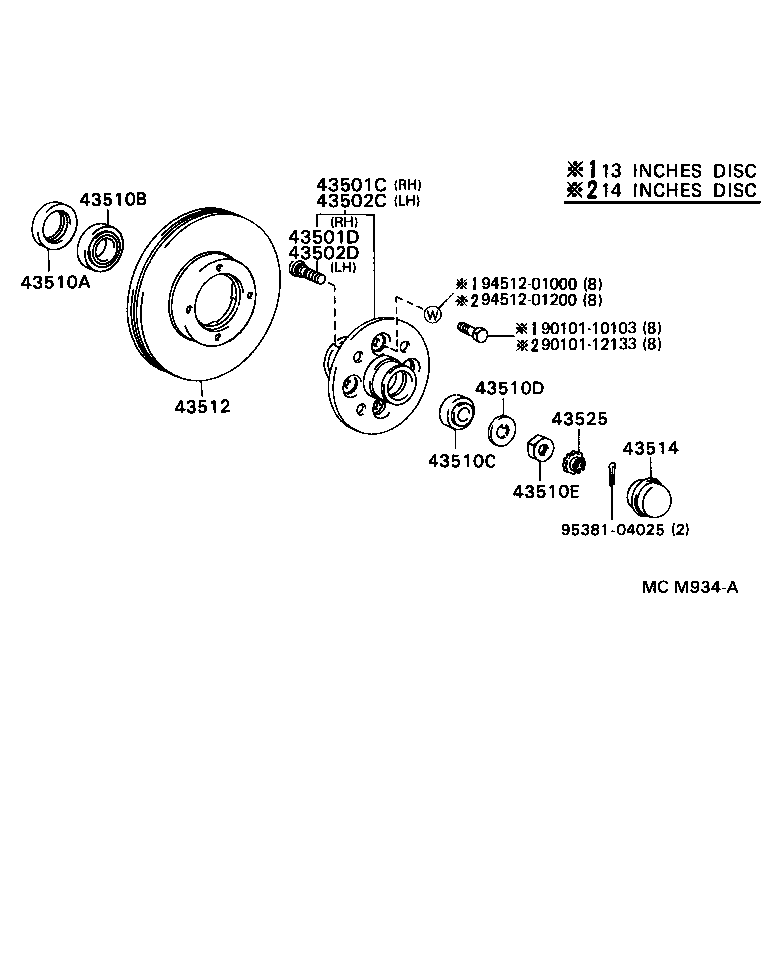

Click highlighted areas on diagram

diagram 43501C 43501D 43502C 43502D 43510A 43510B 43510C 43510D 43510E 43512 43514 43525 9010110103 9010112133 9451201000 9451201200 9538104025
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-28030

CR2#,KR2#,YR2#

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02048

CR2#,KR2#,YR2#

 4
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-28030

CR2#,KR2#,YR2#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02048

CR2#,KR2#,YR2#

 4
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-48001

CR2#,KR2#,YR2#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-31067

CR2#,KR2#,YR2#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-19037

CR2#,KR2#,YR2#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20005

CR2#,KR2#,YR2#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

CR2#,KR2#,YR2#

 2
43512 - DISC, FRONT
43512-28130

CR2#,KR2#,YR2#

 2
43514 - CAP, FRONT HUB GREASE
43514-22020

CR2#,KR2#,YR2#

 2
43514-27010

CR2#,KR2#,YR2#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

CR2#,KR2#,YR2#

 2
Common parts
90101-10103
90101-12133
94512-01000
94512-01200
95381-04025
