KR21LG-MDSW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - May 1994
Engine 5K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )LHD

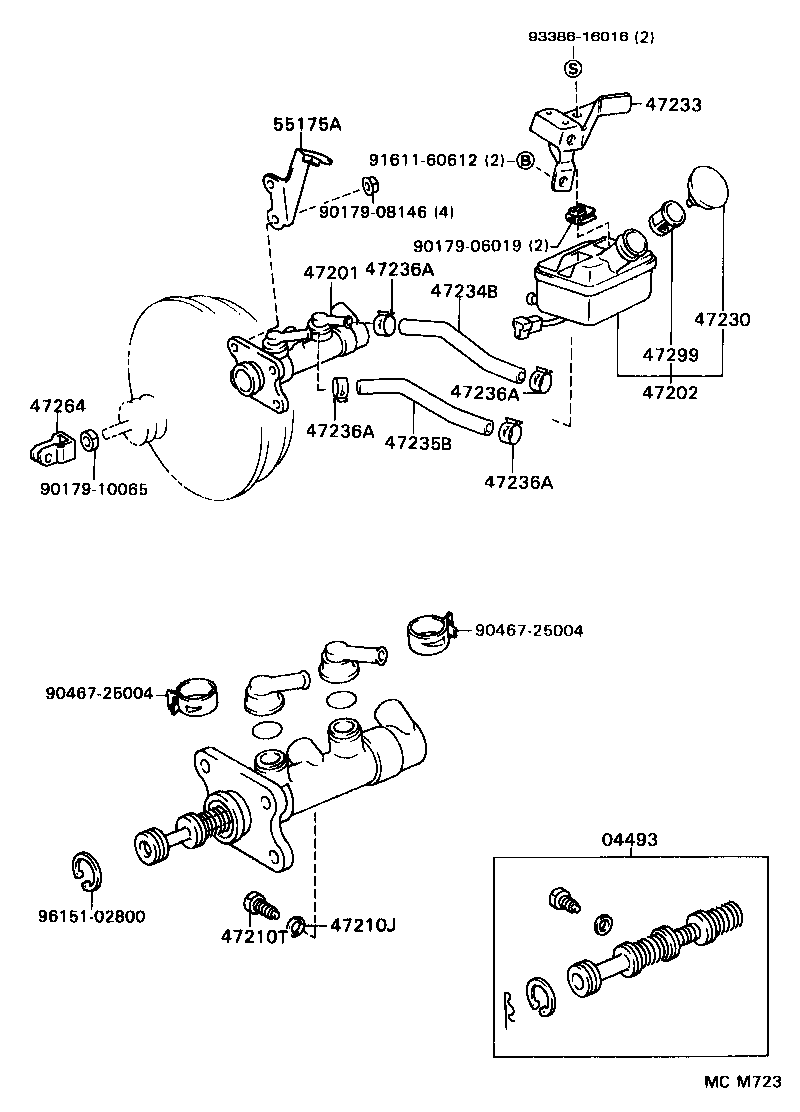

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47233 47234B 47235B 47236A 47236A 47236A 47236A 47264 47299 55175A 9017906019 9017908146 9017910065 9046725004 9046725004 9161160612 9338616016 9615102800
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-28120

CR2#,KR2#,YR2#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-28330

CR2#,KR2#,YR2#..LHD

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-28120

CR2#,KR2#,YR2#..LHD

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

CR2#,KR2#,YR2#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

CR2#,KR2#,YR2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-28010

CR2#,KR2#,YR2#

 1
47233 - BRACKET, RESERVOIR
47233-28070

CR2#,KR2#,YR2#..LHD

 1
47234B - TUBE, RESERVOIR, NO.1
47234-28070

CR2#,KR2#,YR2#..LHD

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-28070

CR2#,KR2#,YR2#..LHD

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

CR2#,KR2#,YR2#

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

CR2#,KR2#,YR2#

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

CR2#,KR2#,YR2#

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16002

CR2#,KR2#,YR2#

 4
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-16020

CR2#,KR2#,YR2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-28010

CR2#,KR2#,YR2#

 1
55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55175-28080

CR2#,KR2#,YR2#..LHD

 1
Common parts
90179-06019
90179-08146
90179-10065
90467-25004
91611-60612
93386-16016
96151-02800
