KR21LG-MDSW (1992)
Toyota Liteace Van Wagon
Production
Jan 1992
-
May 1994
Engine
5K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )5K

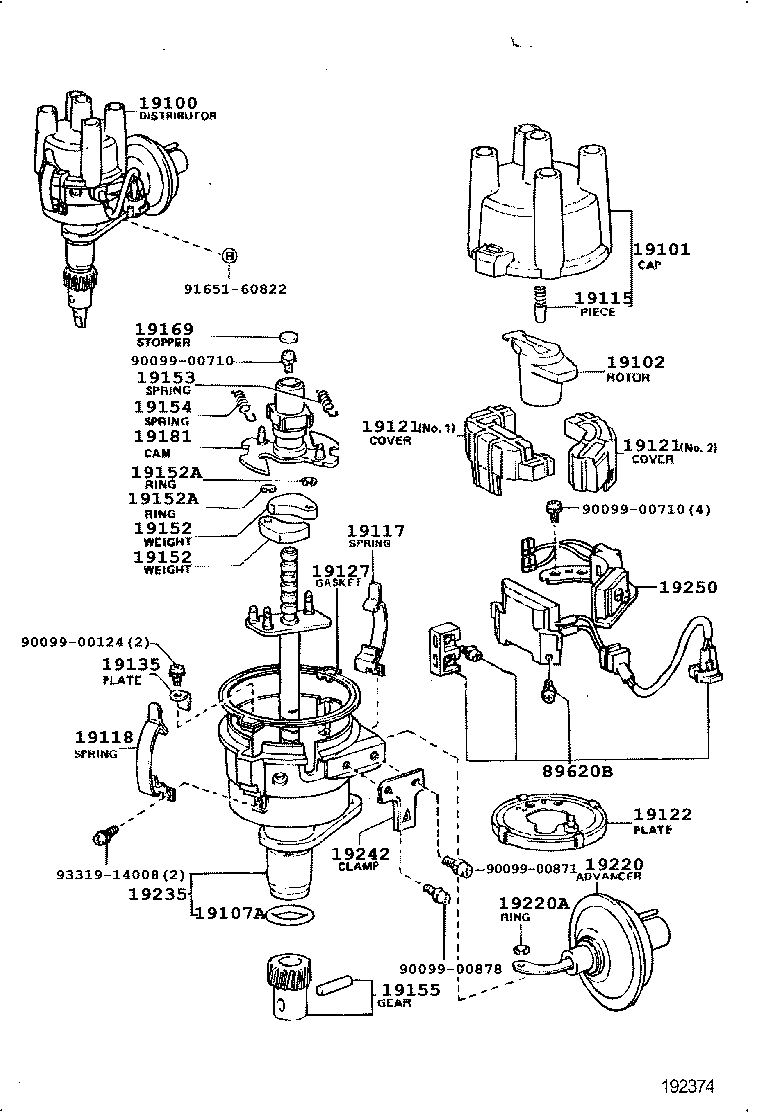

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19060-13160 |
5K..KR2# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-13010 |
5K..KR2# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-26151 |
5K..KR2# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14090 |
5K..KR2# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-88280 |
5K..KR2# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-24080 |
5K..KR2# |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19117-24080 |
5K..KR2# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-88260 |
5K..KR2# NO.2 |
1 | ||
| 19121-88261 |
5K..KR2# NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-88260 |
5K..KR2# NO.2 |
1 | ||
| 19121-88261 |
5K..KR2# NO.1 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88263 |
5K..KR2# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
5K..KR2# |
1 | ||
| 19135 - PLATE, HOLDER | ||||
| 19135-24080 |
5K..KR2# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K..KR2# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K..KR2# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K..KR2# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K..KR2# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-13110 |
5K..KR2# |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-13110 |
5K..KR2# |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-13060 |
5K..KR2# |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
5K..KR2# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-13110 |
5K..KR2# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-13050 |
5K..KR2# |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
5K..KR2# |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-13030 |
5K..KR2# |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-13080 |
5K..KR2# |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-13030 |
5K..KR2# |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-27031 |
KR2# |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 91651-60822 | ||||
| 93319-14008 | ||||
