CR27RV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

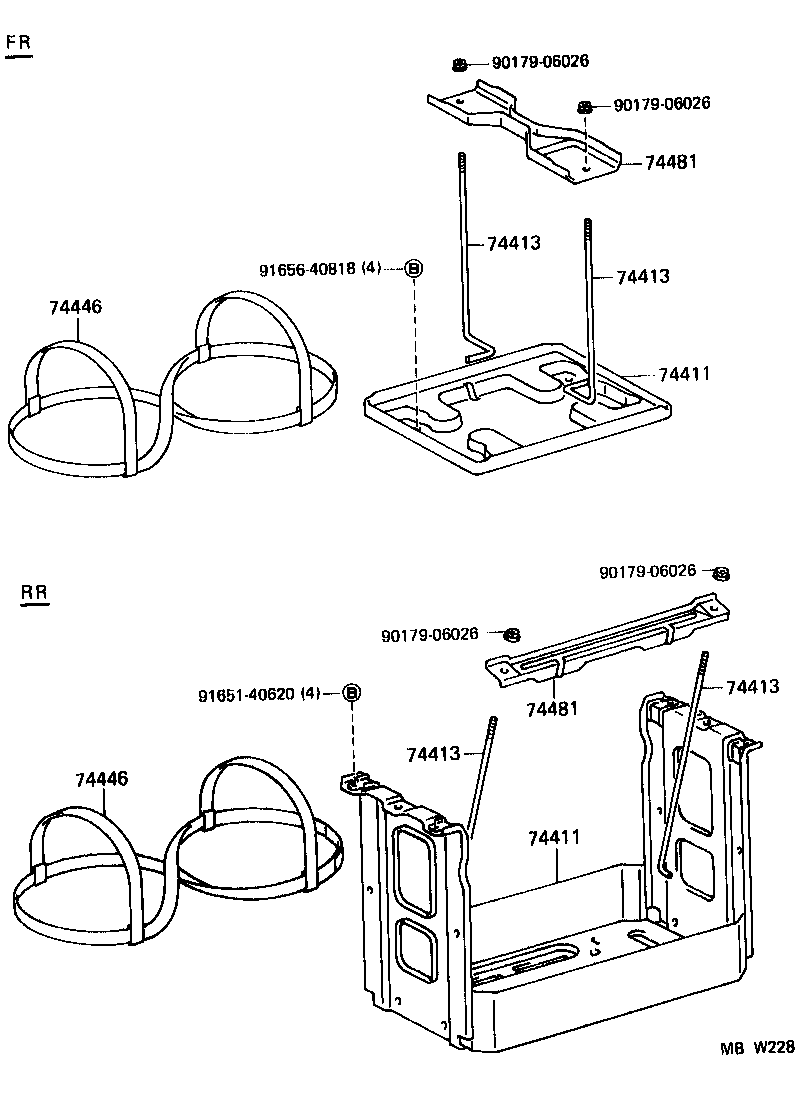

Click highlighted areas on diagram

diagram 74411 74411 74413 74413 74413 74413 74446 74446 74481 74481 9017906026 9017906026 9017906026 9017906026 9165140620 9165640818
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-87008

CR27

COLD SPEC

 1
74411-28050

CR27,KR27,YR29

 1
74411 - CARRIER, BATTERY
74411-87008

CR27

COLD SPEC

 1
74411-28050

CR27,KR27,YR29

 1
74413 - BOLT, BATTERY CLAMP
74451-87003

CR27,KR27,YR29

 2
74413 - BOLT, BATTERY CLAMP
74451-87003

CR27,KR27,YR29

 2
74413 - BOLT, BATTERY CLAMP
74451-87003

CR27,KR27,YR29

 2
74413 - BOLT, BATTERY CLAMP
74451-87003

CR27,KR27,YR29

 2
74446 - BAND, BATTERY
74446-95702

CR2#,YR22

 1
74446 - BAND, BATTERY
74446-95702

CR2#,YR22

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-87006

CR27,KR27,YR29

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-87006

CR27,KR27,YR29

 1
Common parts
90179-06026
91651-40620
91656-40818
