CR27RV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

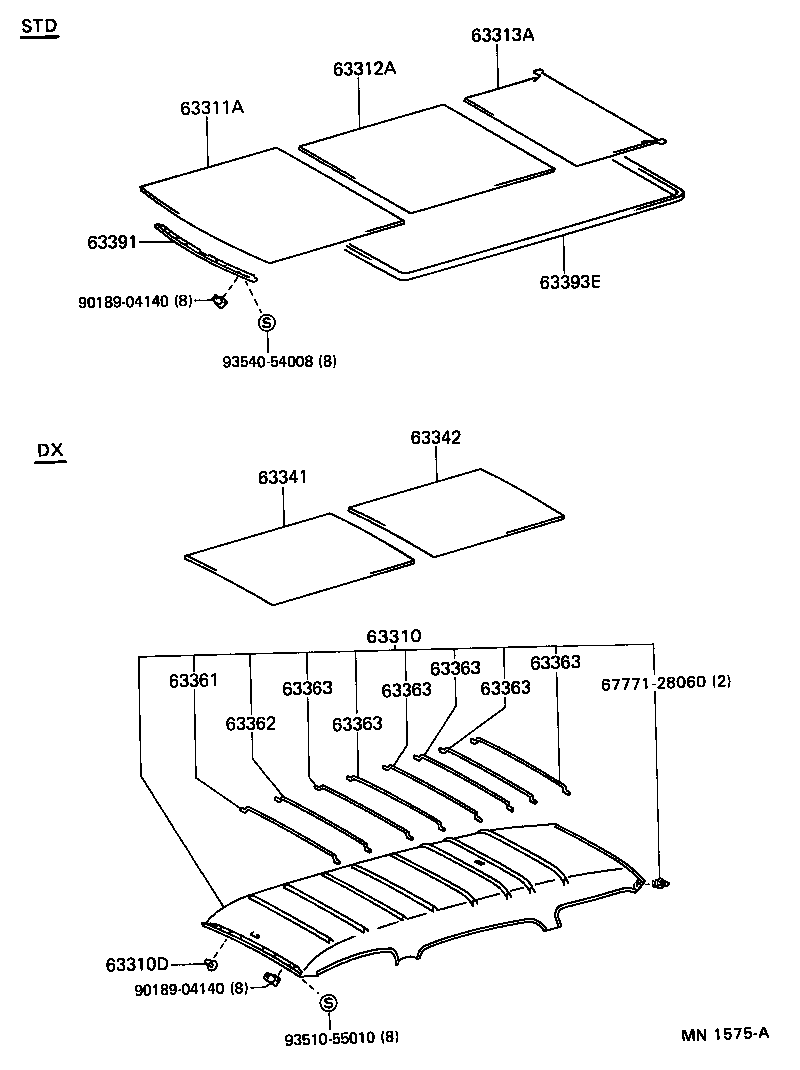

Click highlighted areas on diagram

diagram 63310 63310D 63311A 63312A 63313A 63341 63342 63361 63362 63363 63363 63363 63363 63363 63363 63391 63393E 6777128060 9018904140 9018904140 9351055010 9354054008
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63311-28340B0

CR27,KR27,YR29..MRF

LIGHT GRAY,TRIM1#

 1
63312A - HEADLINING, ROOF, NO.2
63312-28060B0

CR27,KR27,YR29..MRF

LIGHT GRAY,TRIM1#

 1
63313A - HEADLINING, ROOF, NO.3
63313-28020B0

CR27,KR27,YR29..MRF

LIGHT GRAY,TRIM1#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-87013

CR27,KR27,YR29

 1
63393E - TRIM, ROOF HEADLINING
63393-87004B0

CR27,KR27,YR29..MRF

LIGHT GRAY,TRIM1#

 1
Common parts
67771-28060
90189-04140
93510-55010
93540-54008
