CR27RV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

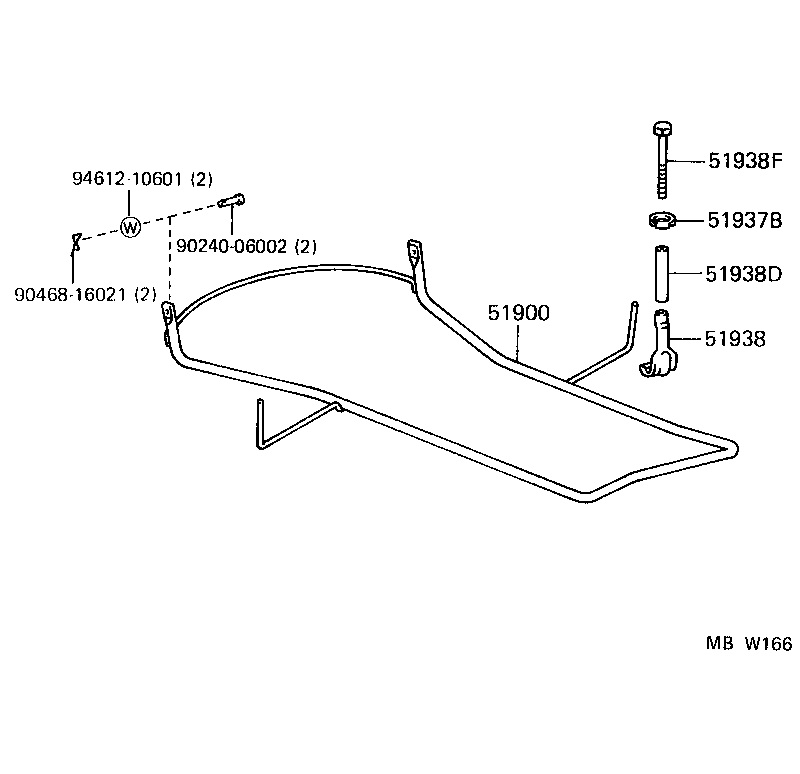

Click highlighted areas on diagram

diagram 51900 51937B 51938 51938D 51938F 9024006002 9046816021 9461210601
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-28100

CR27,KR27,YR29

 1
51937B - PLATE, SPARE WHEEL CARRIER LOCK
51937-26010

CR2#,KR2#,YR2#

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-27070

CR2#,KR2#,YR2#

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90440-17033

CR2#,KR2#,YR2#

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90101-12101

CR2#,KR2#,YR2#

 1
Common parts
90240-06002
90468-16021
94612-10601
