CR27LV-MRSW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )LHD

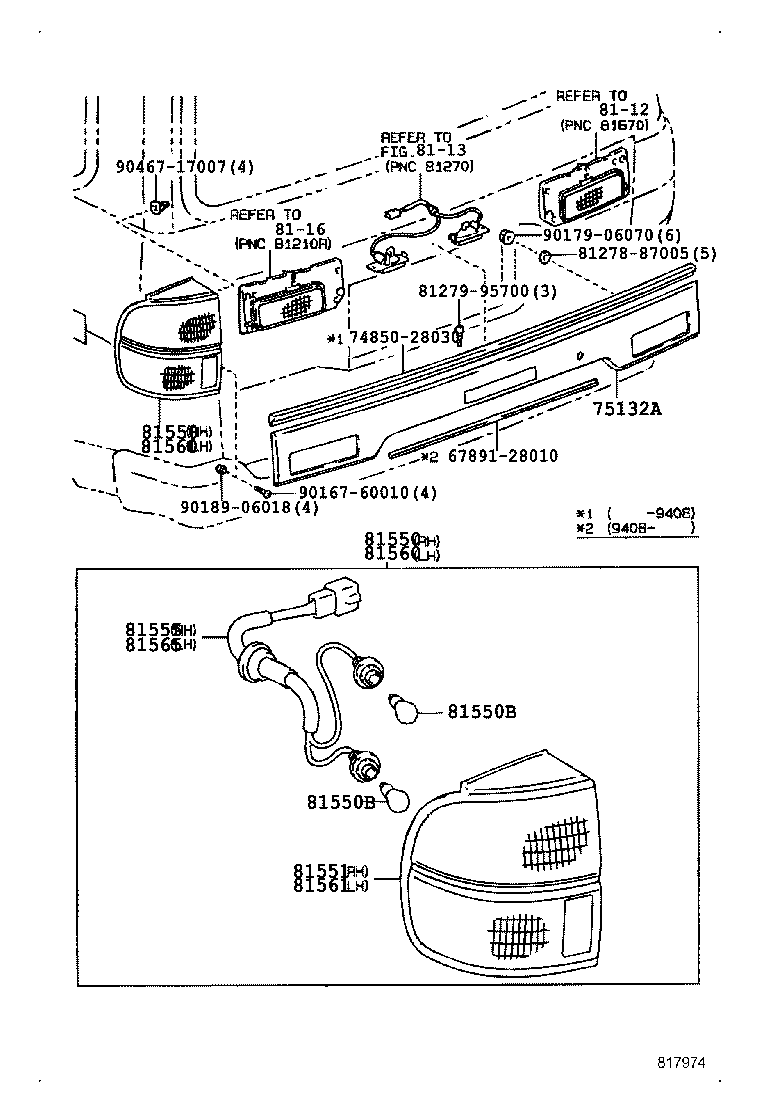

Click highlighted areas on diagram

diagram 6789128010 7485028030 75132A 8112 8113 8116 8127887005 8127995700 81550 81550 81550B 81550B 81551 81555 81560 81560 81561 81565 9016760010 9017906070 9018906018 9046717007
Part # Description Qty Price
75132A - COVER, LICENSE REAR LAMP
75132-28020

CR2#,KR2#,YR2#

 1
75132-28080

CR2#,YR2#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-28040

CR2#,KR2#,YR2#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-28040

CR2#,KR2#,YR2#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CR2#,KR2#,YR2#

12V 21W

 2
99132-21210

CR2#,KR2#,YR2#

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CR2#,KR2#,YR2#

12V 21W

 2
99132-21210

CR2#,KR2#,YR2#

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-28040

CR2#,KR2#,YR2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28030

CR2#,KR2#,YR2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-28040

CR2#,KR2#,YR2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-28040

CR2#,KR2#,YR2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-28040

CR2#,KR2#,YR2#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28030

CR2#,KR2#,YR2#

 1
Common parts
67891-28010
74850-28030
81278-87005
81279-95700
90167-60010
90179-06070
90189-06018
90467-17007
Linked diagrams
8112
8113
8116
