CR27LV-MRSW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

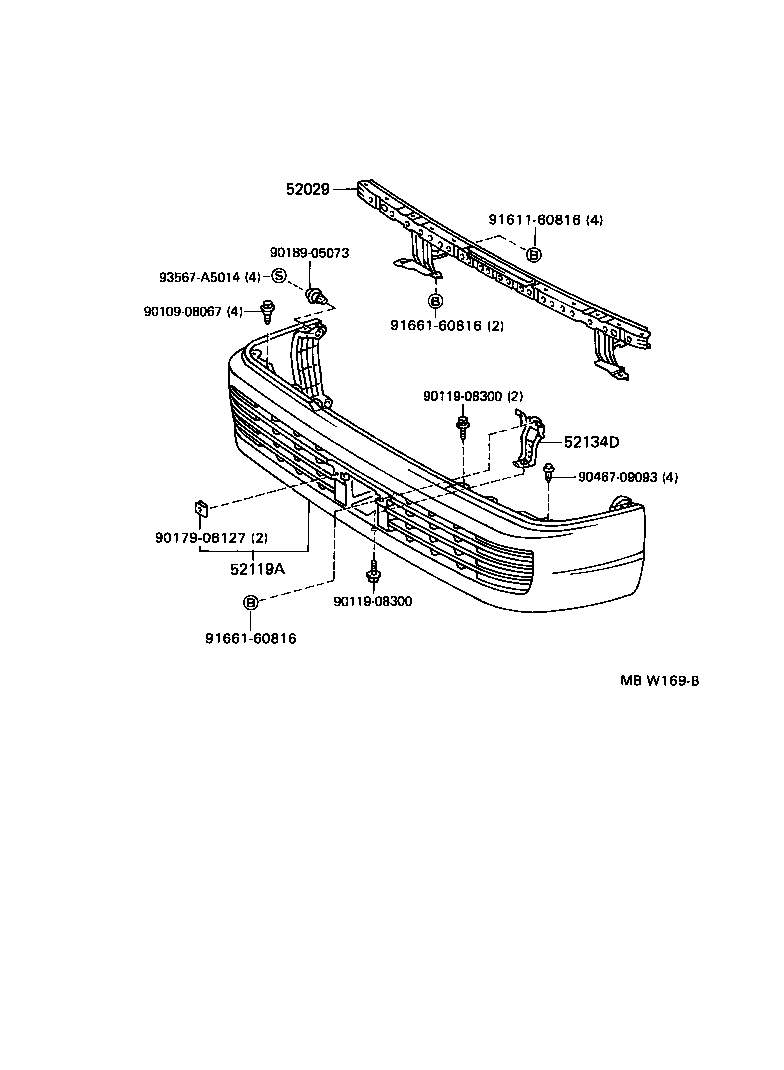

Click highlighted areas on diagram

diagram 52029 52119A 52134D 9010908067 9011908300 9011908300 9017906127 9018905073 9046709093 9161160816 9166160816 9166160816 93567A5014
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-28020

CR2#,KR2#,YR2#

 1
52119A - COVER, FRONT BUMPER
52104-28030

CR2#,KR2#,YR2#

 1
52134D - REINFORCEMENT, FRONT BUMPER STAY
52134-28050

CR2#,KR2#,YR2#

 1
Common parts
90109-08067
90119-08300
90179-06127
90189-05073
90467-09093
91611-60816
91661-60816
93567-A5014
