CR27LV-MRSW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

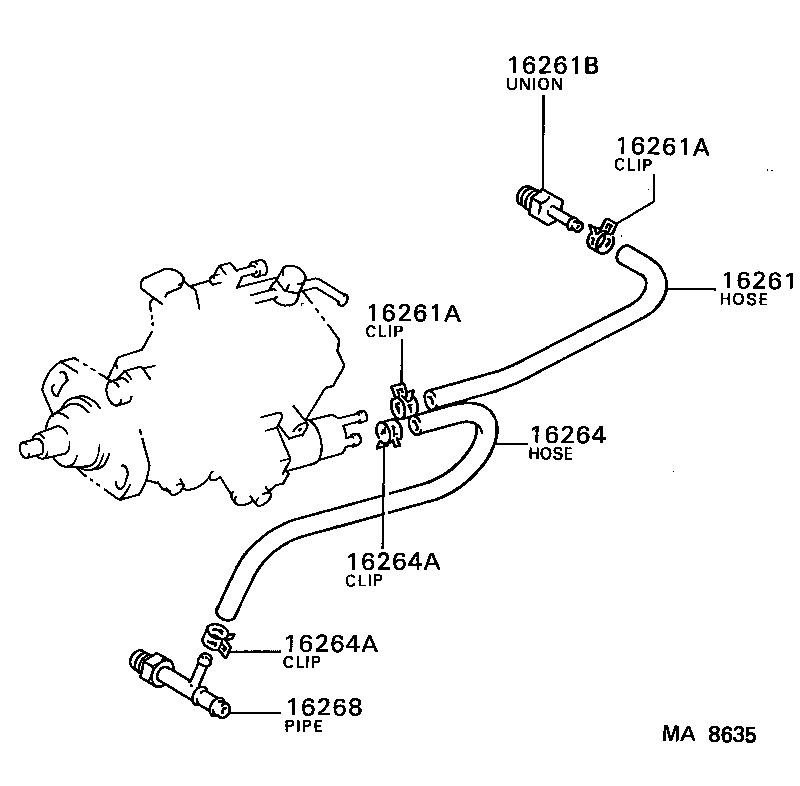

ILLUST NO. 2 OF 2(9201- )2C

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16264 16264A 16264A 16268
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-64020

2C..CR2#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

2C..CR2#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

2C..CR2#

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-53059

2C..CR2#

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-64090

2C..CR2#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2C..CR2#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

2C..CR2#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-64080

2C..CR2#

 1

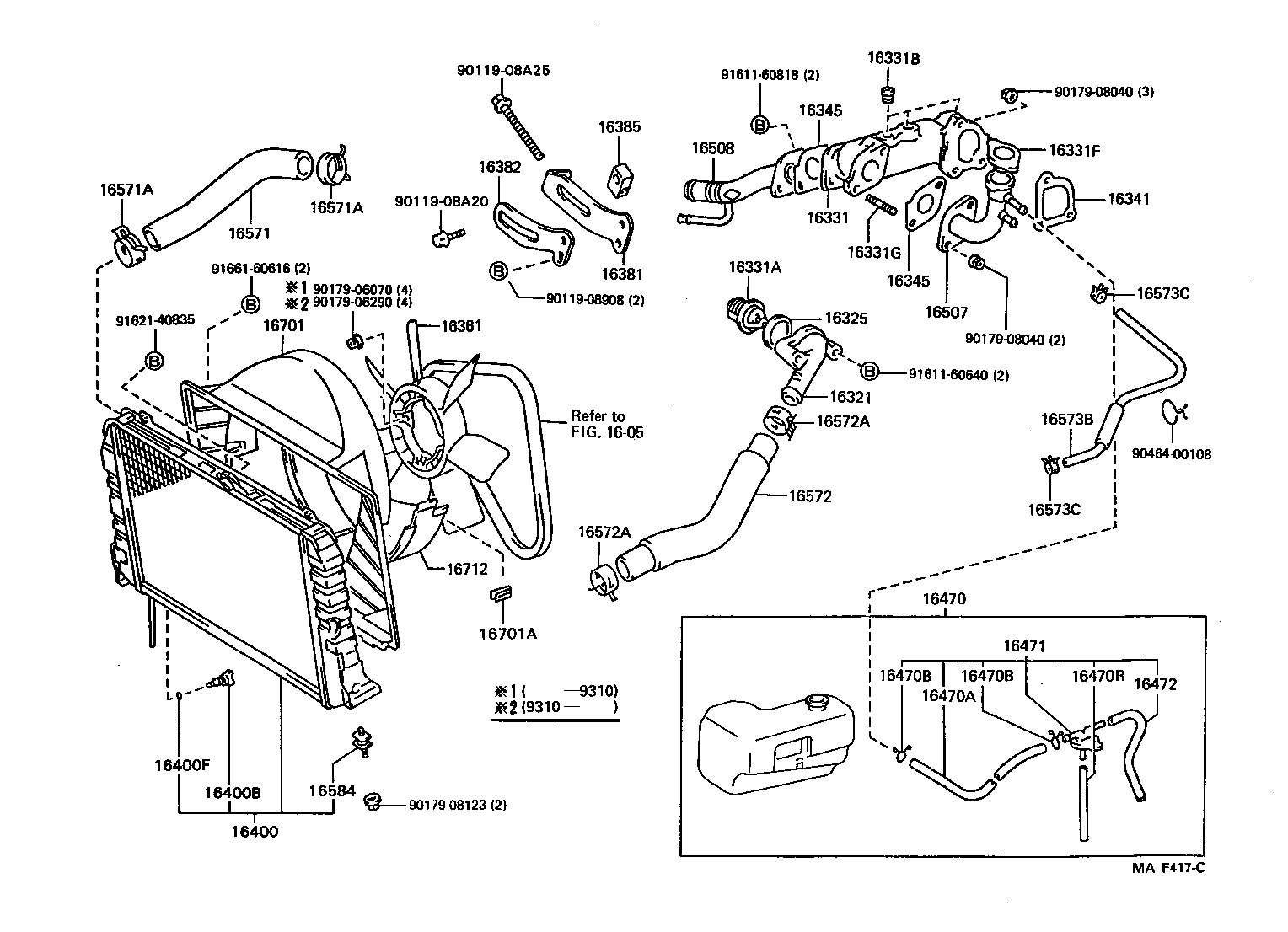

ILLUST NO. 1 OF 2(9201- )2C

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16331B 16331F 16331G 16341 16345 16345 16361 16381 16382 16385 16400 16400B 16400F 16470 16470A 16470B 16470B 16470R 16471 16472 16507 16508 16571 16571A 16571A 16572 16572A 16572A 16573B 16573C 16573C 16584 16701 16701A 16712 9011908908 9011908A20 9011908A25 9017906070 9017906290 9017908040 9017908040 9017908123 9046400108 9161160640 9161160818 9162140835 9166160616
Part # Description Qty Price
16321 - INLET, WATER
16321-64040

2C..CR2#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2C..CR2#

 1
16325-63011

2C..CR2#

 1
16331 - OUTLET, WATER
16331-64050

2C..CR2#

 1
16331A - THERMOSTAT
90916-03046

2C..CR2#

*WAX 82-95

 1
16331B - PLUG(FOR WATER OUTLET)
90345-53030

2C..CR2#

 3
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-64500

2C..CR2#

 1
16331G - BOLT, STUD(FOR WATER INLET)
92122-60816

2C..CR2#

 2
16341 - GASKET, WATER OUTLET
16341-64021

2C..CR2#

 1
16345 - GASKET, WATER OUTLET PIPE
16345-64030

2C..CR2#

 2
16345 - GASKET, WATER OUTLET PIPE
16345-64030

2C..CR2#

 2
16361 - FAN
16361-38010

2C..CR2#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-64090

2C..CR2#

 1
16381-64030

2C..CR2#

 1
16382 - LOCK, FAN BELT ADJUSTING
16382-64010

2C..CR2#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-64030

2C..CR2#

 1
16385-64011

2C..CR2#

 1
16400 - RADIATOR ASSY
16400-64500

2C..CR2#

 1
16400-64501

2C..CR2#

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

2C..CR2#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

2C..CR2#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-64030

2C..CR2#

 1
16470-64030

2C..CR2#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12073

2C..CR2#

L=420

 1
90445-12078

2C..CR2#

L=600

 1
90445-12078

2C..CR2#

L=600

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2C..CR2#

 2
90467-11085

2C..CR2#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2C..CR2#

 2
90467-11085

2C..CR2#

 2
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078

2C..CR2#

L=600

 1
90445-12078

2C..CR2#

L=600

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-64020

2C..CR2#

 1
16471-64020

2C..CR2#

 1
16472 - HOSE, BREATHER
16477-64030

2C..CR2#

 1
85338-54080

2C..CR2#

L=60

 1
16477-64030

2C..CR2#

 1
16507 - PIPE SUB-ASSY, RADIATOR
16507-64020

2C..CR2#

 1
16508 - PIPE SUB-ASSY, RADIATOR, NO.2
16508-64060

2C..CR2#

 1
16571 - HOSE, RADIATOR, INLET
16571-64031

2C..CR2#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

2C..CR2#

ENGINE SIDE

 1
90467-37001

2C..CR2#

RADIATOR SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37002

2C..CR2#

ENGINE SIDE

 1
90467-37001

2C..CR2#

RADIATOR SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16572-64100

2C..CR2#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2C..CR2#

RADIATOR SIDE

 1
90467-37002

2C..CR2#

ENGINE SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2C..CR2#

RADIATOR SIDE

 1
90467-37002

2C..CR2#

ENGINE SIDE

 1
16573B - HOSE, RADIATOR, NO.3
16573-64011

2C..CR2#

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-13001

2C..CR2#

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-13001

2C..CR2#

 2
16584 - INSULATOR, RADIATOR MOUNTING
17853-38010

2C..CR2#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-64280

2C..CR2#

 1
16711-64281

2C..CR2#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-05121

2C..CR2#

 2
16712 - SHROUD, FAN, NO.2
16712-64140

2C..CR2#

 1
16712-64141

2C..CR2#

 1
Common parts
90119-08908
90119-08A20
90119-08A25
90179-06070
90179-06290
90179-08040
90179-08123
90464-00108
91611-60640
91611-60818
91621-40835
91661-60616
