8716 - HEATING & AIR CONDITIONING - WATER PIPING

CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995

Engine 2C

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9201- )CR2#

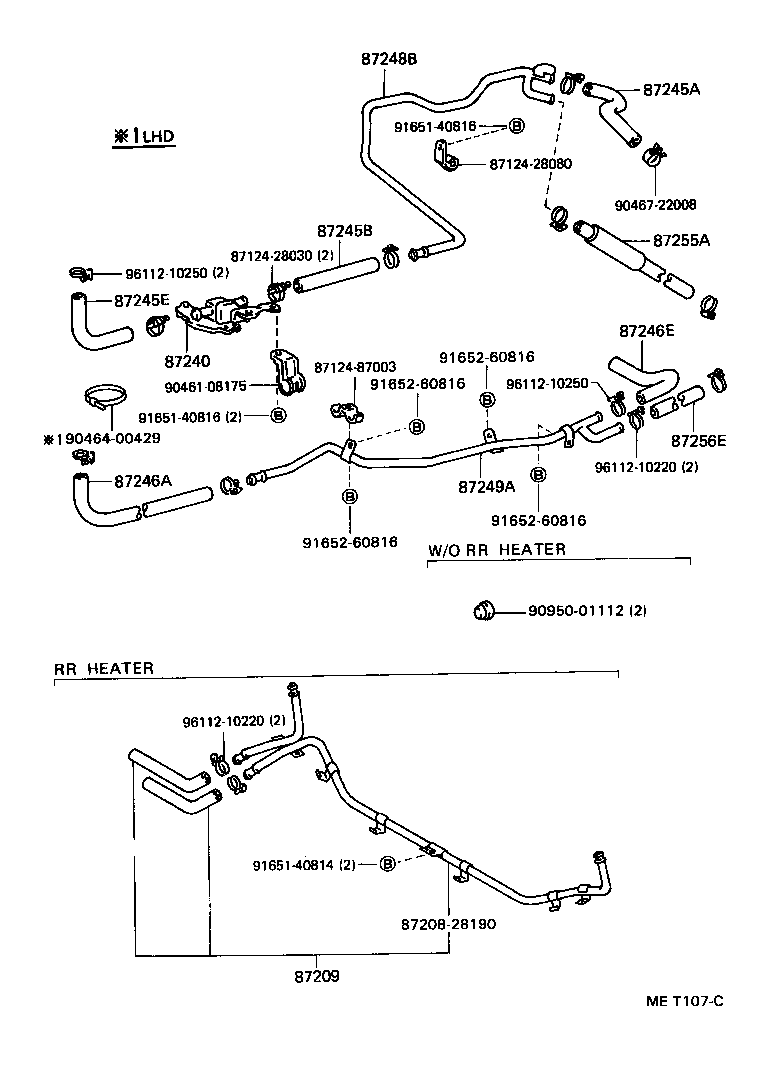

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87240 - VALVE ASSY, HEATER WATER
87240-28030	CR2#,KR2#,YR2#..LHD	01/1992 - 01/1995	1
87245A - HOSE, HEATER WATER, INLET A
87245-28220	CR2#	01/1992 - 01/1995	1
87245B - HOSE, HEATER WATER, INLET B
99556-30500	CR2#,KR2#,YR2#..LHD L=500	01/1992 - 01/1995	1
87245E - HOSE, HEATER WATER, INLET E
87245-28470	CR2#..LHD	09/1993 - 01/1995	1
87245-28050	CR2#,KR2#,YR2#..LHD	01/1992 - 09/1993	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-28210	CR2#,KR2#,YR2#..LHD	01/1992 - 09/1993	1
87245-28450	CR2#..LHD	09/1993 - 01/1995	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-87017	CR2#	01/1992 - 01/1995	1
87248B - PIPE, HEATER WATER INLET, B
87208-28310	CR27	01/1992 - 01/1995	1
87249A - PIPE, HEATER WATER OUTLET, A
87208-28300	CR27,YR29	01/1992 - 01/1995	1
Common parts
87124-28030
87124-28080
87124-87003
87208-28190
90461-08175
90464-00429
90467-22008
90950-01112
91651-40814
91651-40816
91652-60816
96112-10220
96112-10250
