CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

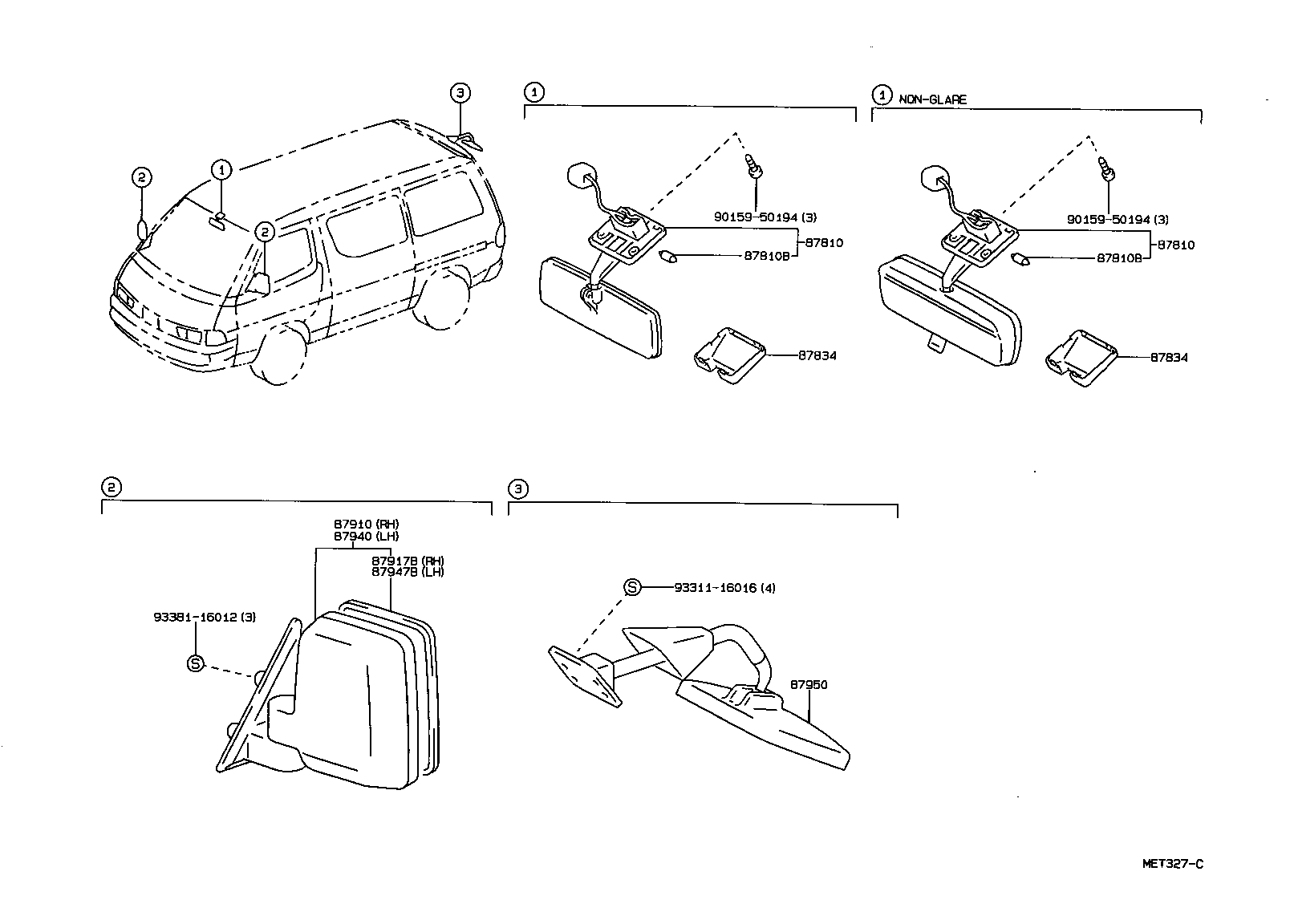

Click highlighted areas on diagram

diagram 87810 87810 87810B 87810B 87834 87834 87910 87917B 87940 87947B 87950 9015950194 9015950194 9331116016 9338116012
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87801-28080B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
87801-28090B1

CR2#,KR2#,YR2#

NON-GLARE TYPE,LIGHT GRAY,TRIM1#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87801-28080B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
87801-28090B1

CR2#,KR2#,YR2#

NON-GLARE TYPE,LIGHT GRAY,TRIM1#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-12100

CR2#,KR2#,YR2#

12V 10W

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-12100

CR2#,KR2#,YR2#

12V 10W

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81241-87001

CR2#,KR2#,YR2#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81241-87001

CR2#,KR2#,YR2#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-28150

CR2#,KR2#,YR2#..LHD

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-87008

CR2#,KR2#,YR2#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-28150

CR2#,KR2#,YR2#..LHD

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-87017

CR2#,KR2#,YR2#

 1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-28020

CR2#,KR2#,YR2#

 1
Common parts
90159-50194
93311-16016
93381-16012
