CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon
Production
Jan 1992
-
Jan 1995
Engine
2C
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

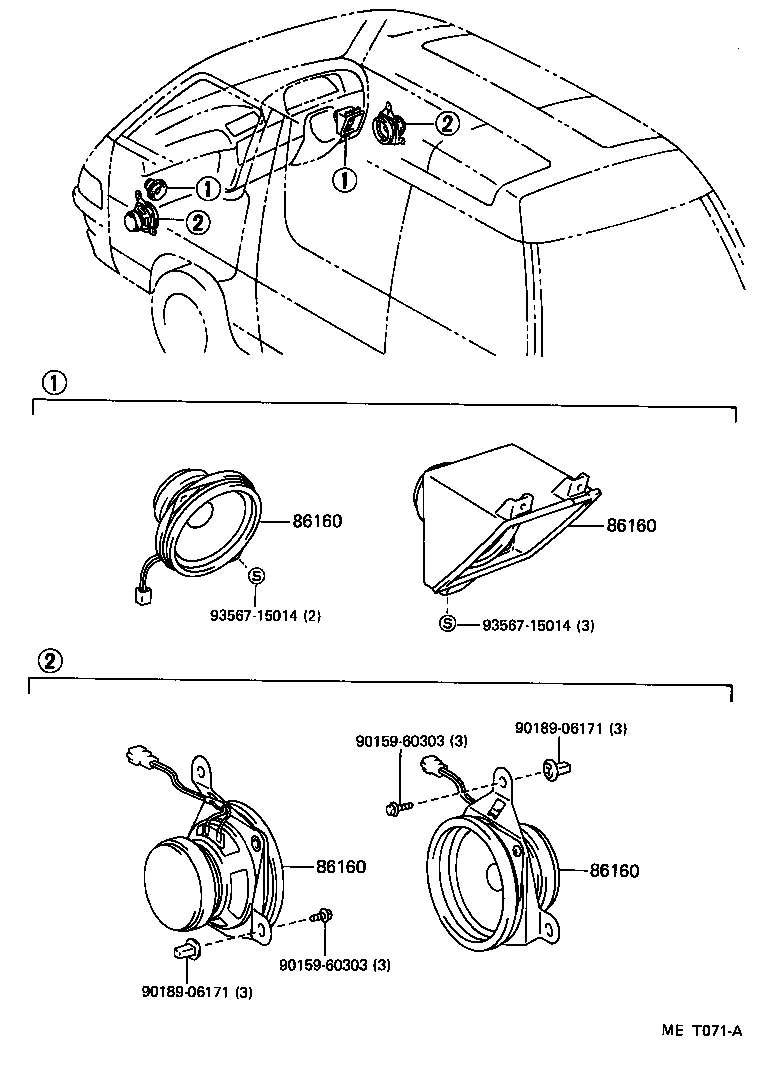

ILLUST NO. 1 OF 2(9201- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87004 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| 86160-10140 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,LH |
1 | ||
| 86150-28110 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87004 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| 86160-10140 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,LH |
1 | ||
| 86150-28110 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87004 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| 86160-10140 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,LH |
1 | ||
| 86150-28110 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86150-87004 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| 86160-10140 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,LH |
1 | ||
| 86150-28110 |
CR27,KR27,YR29..LHD INSTRUMENT PANEL,RH |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06171 | ||||
| 93567-15014 | ||||

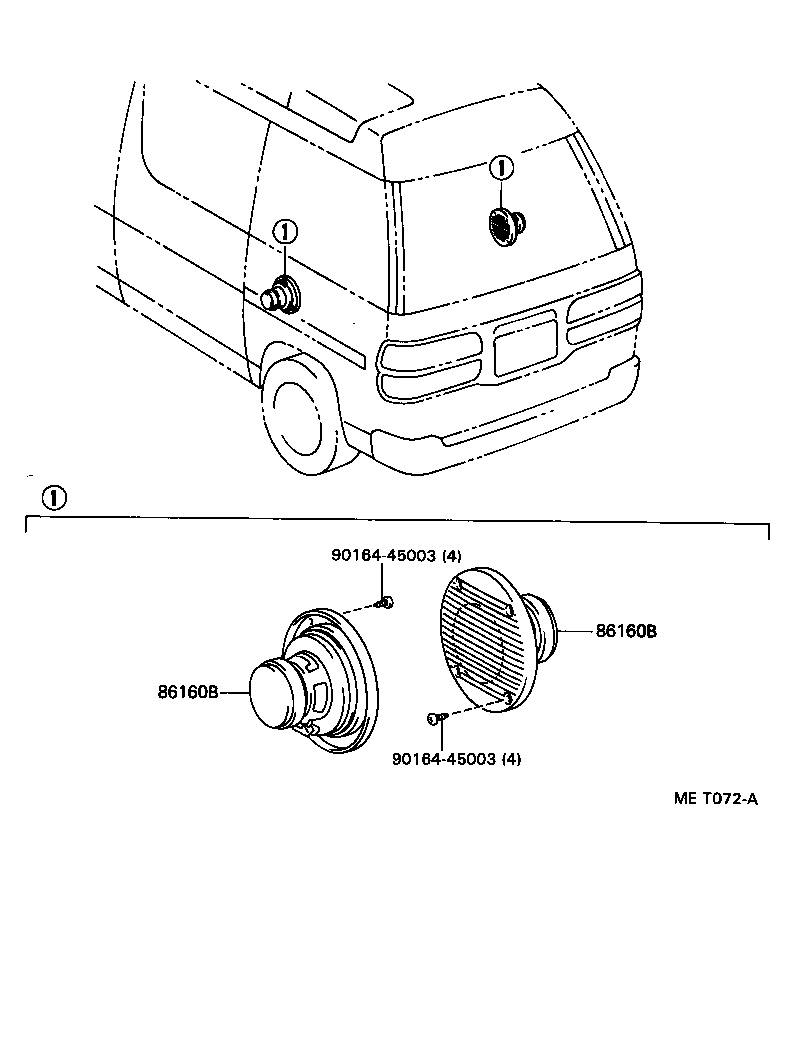

ILLUST NO. 2 OF 2(9201- )
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-45003 | ||||
