CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

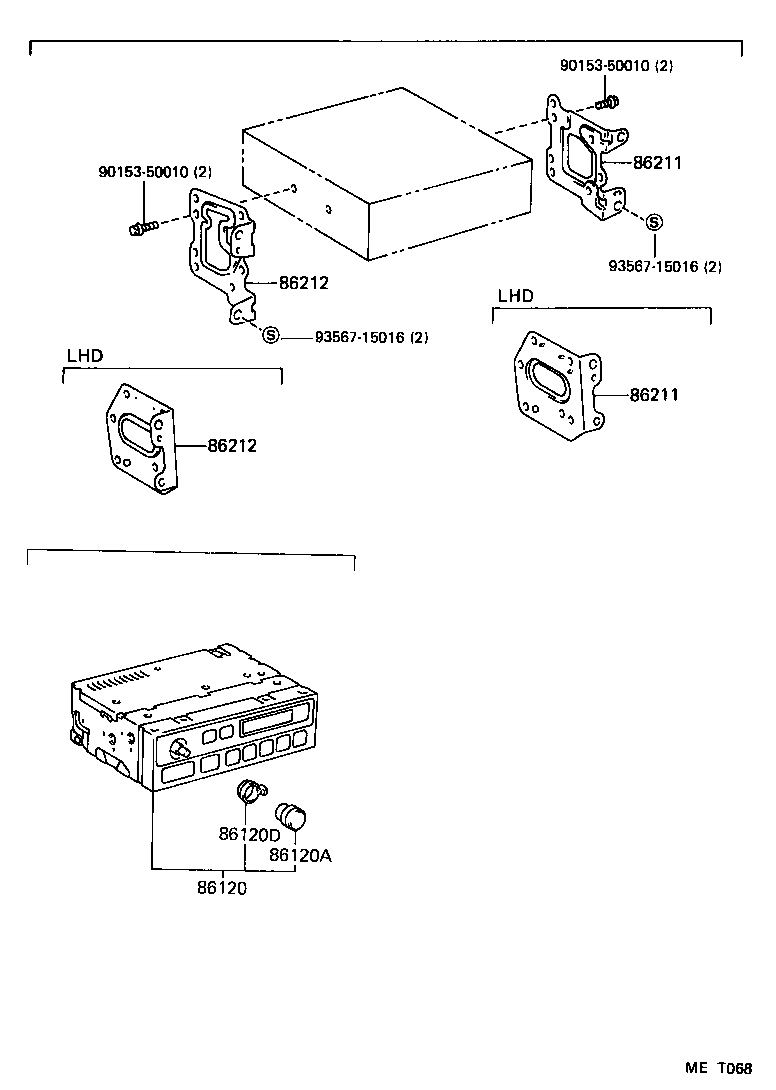

Click highlighted areas on diagram

diagram 86120 86120A 86120D 86211 86211 86212 86212 9015350010 9015350010 9356715016 9356715016
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-1A040

CR2#,KR2#,YR2#

FUJITSU TEN,ID=12101,AM ETR

 1
86120-32111

CR2#,KR2#,YR2#

FUJITSU TEN,MW/LW/UKW

 1
86120-10440

CR2#,KR2#,YR2#

MATSUSHITA,MW/LW/UKW CST 2SP

 1
86120-2B440

CR2#,KR2#,YR2#

MATSUSHITA,ID=58406,MW/LW/UKW CST 2SP

 1
86120A - KNOB, RADIO RECEIVER SWITCH
86128-32060

CR2#,KR2#,YR2#

MW/LW/UKW

 1
86128-17230

CR27,KR27,YR29

MW/LW/UKW CST

 1
86128-12380

CR2#,KR2#,YR2#

AM ETR

 1
86128-17490

CR27,KR27,YR29

MW/LW/UKW CST 2SP

 1
86120D - KNOB, RADIO RECEIVER TONE
86128-32080

CR2#,KR2#,YR2#

MW/LW/UKW

 1
86128-12400

CR2#,KR2#,YR2#

AM ETR

 1
86211 - BRACKET, RADIO, NO.1
86211-28030

CR2#,KR2#,YR2#..LHD

 1
86211 - BRACKET, RADIO, NO.1
86211-28030

CR2#,KR2#,YR2#..LHD

 1
86212 - BRACKET, RADIO, NO.2
86212-28030

CR2#,KR2#,YR2#..LHD

 1
86212 - BRACKET, RADIO, NO.2
86212-28030

CR2#,KR2#,YR2#..LHD

 1
Common parts
90153-50010
93567-15016
