CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

Click highlighted areas on diagram

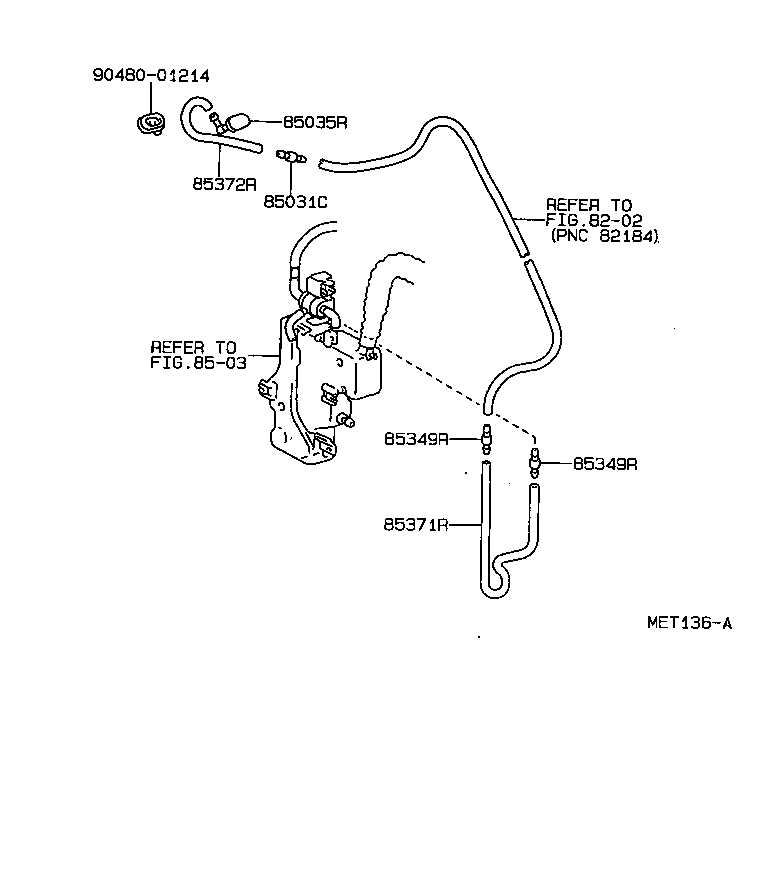

diagram 8202 8503 85031C 85035R 85349R 85349R 85371R 85372R 9048001214
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-12250

CR2#,KR2#,YR2#

 1
85349-89122

CR2#,KR2#,YR2#

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-28040

CR2#,KR2#,YR2#

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122

CR2#,KR2#,YR2#

 2
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-89122

CR2#,KR2#,YR2#

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299

CR2#,KR2#,YR2#

L=1000

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33080

CR2#,KR2#,YR2#

L=1450

 1
Common parts
90480-01214
Linked diagrams
8202
8503
