CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

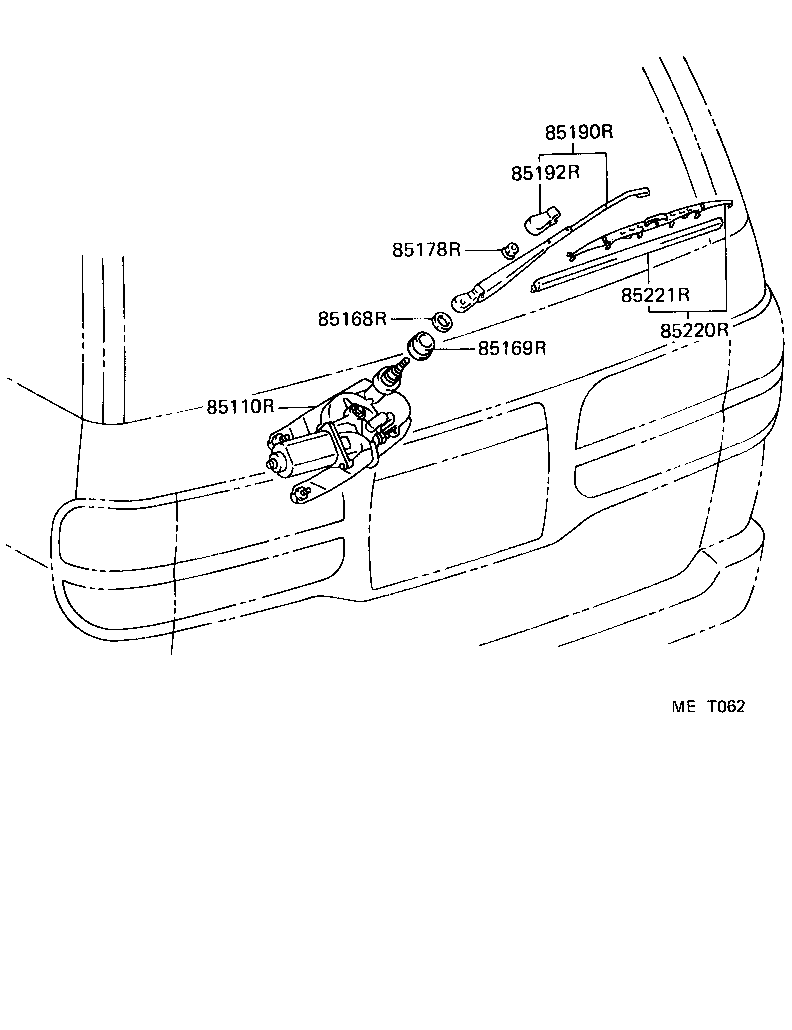

Click highlighted areas on diagram

diagram 85110R 85168R 85169R 85178R 85190R 85192R 85220R 85221R
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-28040

CR2#,KR2#,YR2#

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

CR2#,KR2#,YR2#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-28040

CR2#,KR2#,YR2#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

CR2#,KR2#,YR2#

 1
85190R - ARM ASSY, REAR WIPER
85241-28030

CR2#,KR2#,YR2#

 1
85192R - COVER, REAR WIPER ARM
85192-13060

CR2#,KR2#,YR2#

 1
85220R - BLADE ASSY, REAR WIPER
85242-28020

CR2#,KR2#,YR2#

 1
85221R - BLADE, REAR WIPER
85243-28020

CR2#,KR2#,YR2#

 1
