CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon

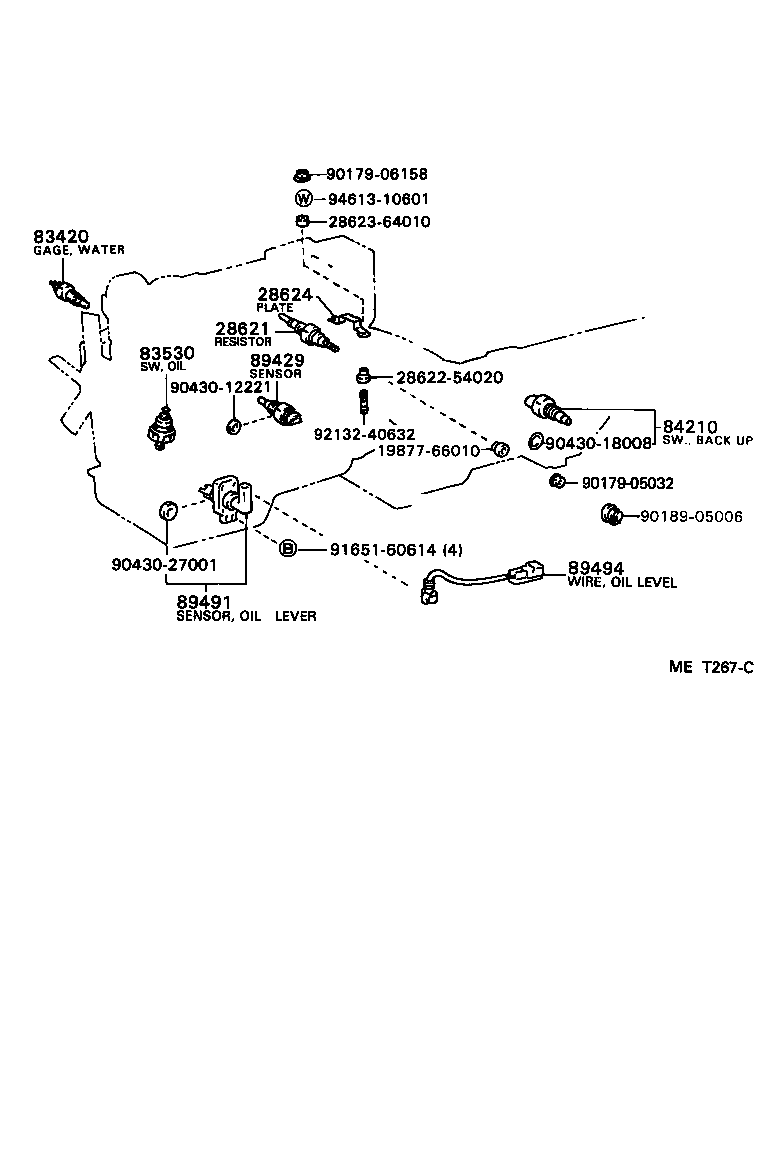

ILLUST NO. 1 OF 7(9201- )CR2#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64011 |
2C..CR2# |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-64010 |
2C..CR2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
CR2#,KR2#,YR2# |
1 | ||
| 83420-20020 |
CR2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
CR2# |
1 | ||
| 83530-30100 |
CR2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
CR2#,KR2#,YR2# |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-20010 |
CR2# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-27031 |
CR2# |
1 | ||
| 89494 - WIRE, ENGINE OIL LEVEL SENSOR | ||||
| 89494-28020 |
CR2# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-64010 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-60614 | ||||
| 92132-40632 | ||||
| 94613-10601 | ||||

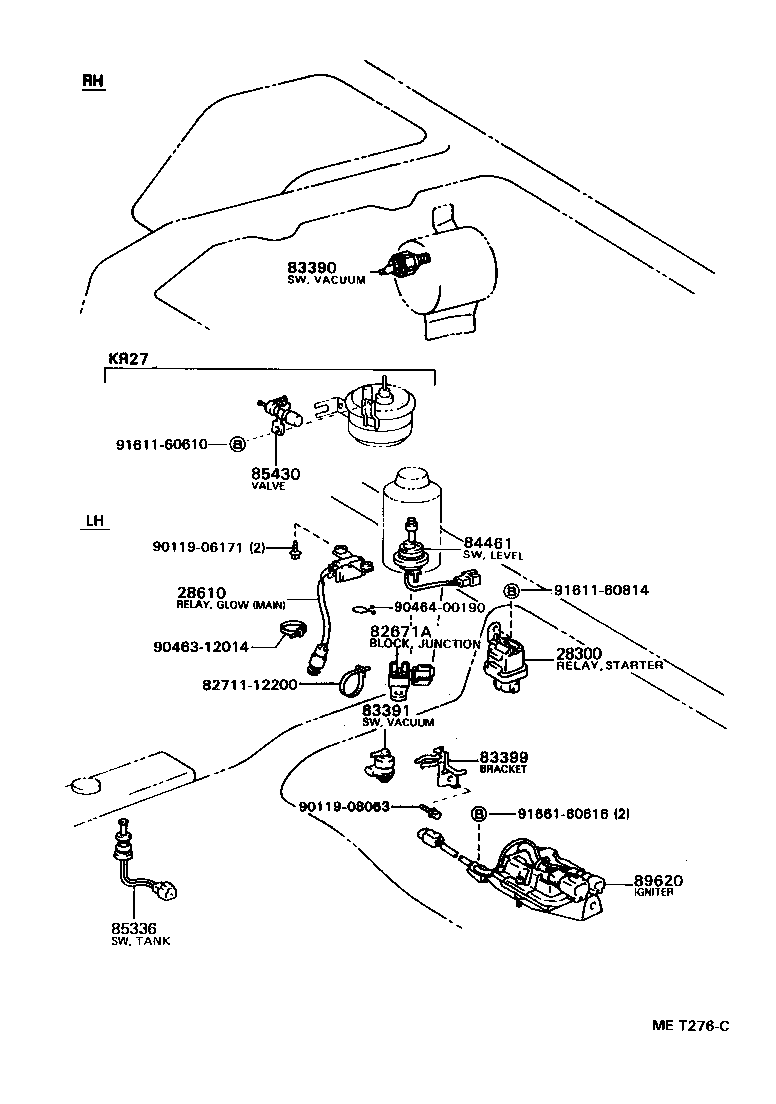

ILLUST NO. 2 OF 7(9201- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28310-64010 |
2C,5K,4YEC..CR2#,KR2#,YR2# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64120 |
2C..CR2# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-27120 |
CR2# |
1 | ||
| 83390-32100 |
CR2# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-35030 |
CR2# |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-64030 |
CR2# |
1 | ||
| 85335-64030 |
CR27 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-06171 | ||||
| 90119-08063 | ||||
| 90463-12014 | ||||
| 90464-00190 | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
| 91661-60616 | ||||

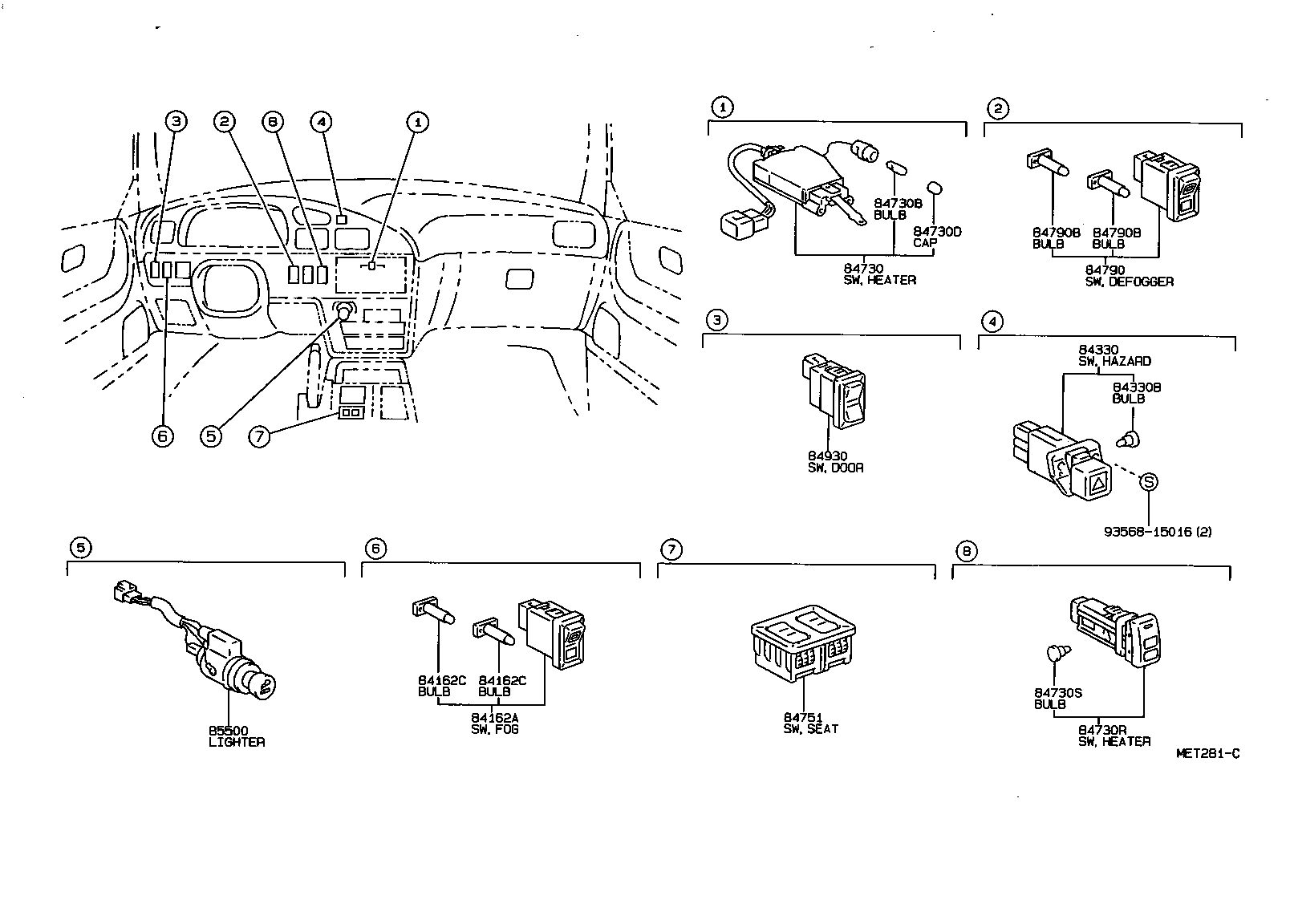

ILLUST NO. 3 OF 7(9201- )LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84160-28020 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10120 |
CR2#,KR2#,YR2#..LHD 12V 0.7W |
2 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10120 |
CR2#,KR2#,YR2#..LHD 12V 0.7W |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-28120 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
CR2#,KR2#,YR2# 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-28010 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
CR2#,KR2#,YR2#..LHD 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 90339-04023 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28010 |
CR27,KR27..LHD..4D..02S |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-28010 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10120 |
CR2#,KR2#,YR2#..LHD 12V 0.7W |
2 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10120 |
CR2#,KR2#,YR2#..LHD 12V 0.7W |
2 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-87003 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28041 |
CR2#,YR2#..LHD |
1 | ||
| 85500-28040 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| Common parts | ||||
| 93568-15016 | ||||

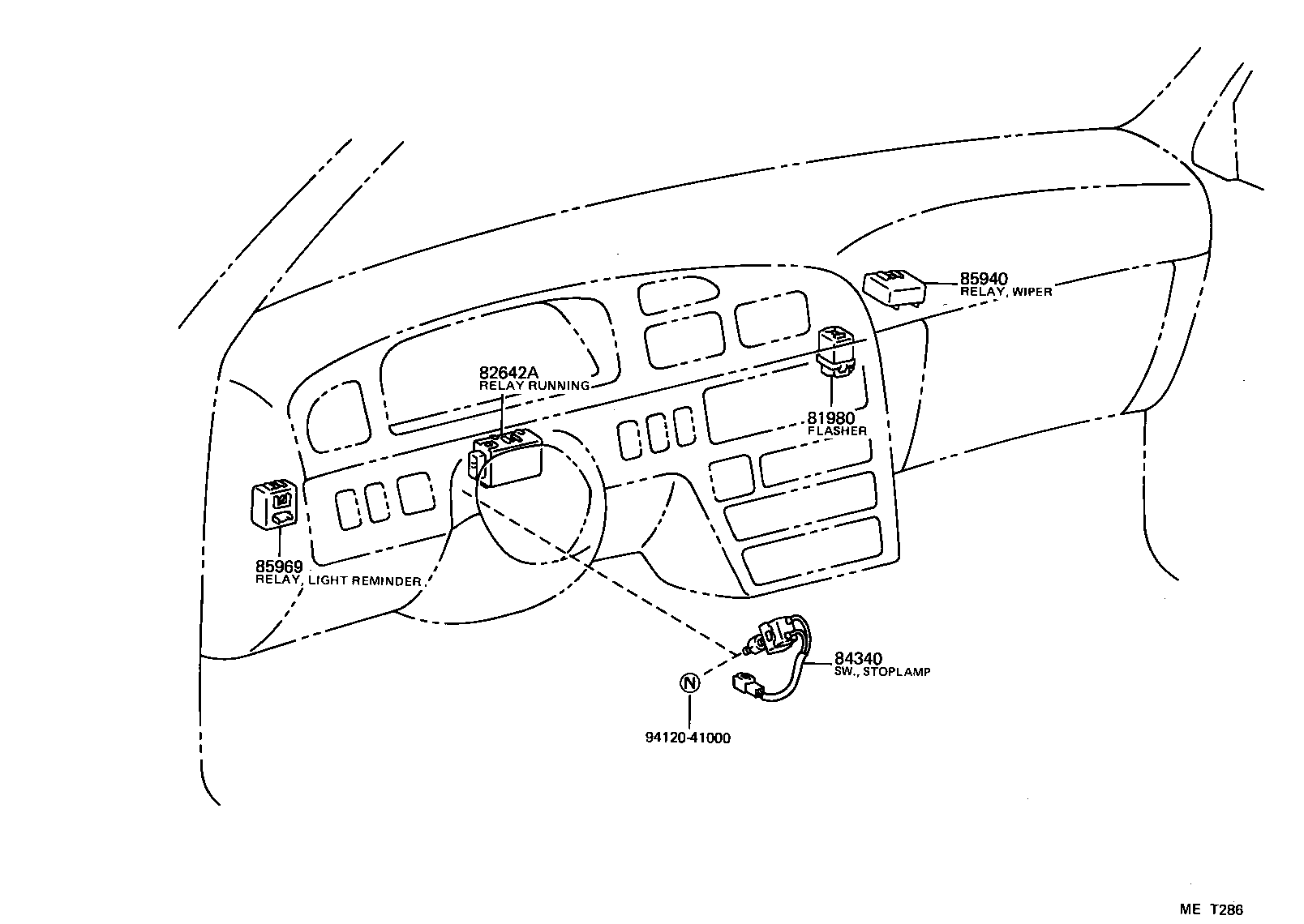

ILLUST NO. 4 OF 7(9201- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
CR2#,KR2#,YR2# |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-13010 |
CR27,KR27..LHD..4D..02S DENMARK SPEC |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36050 |
CR2#,KR2#,YR2# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-17010 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 94120-41000 | ||||

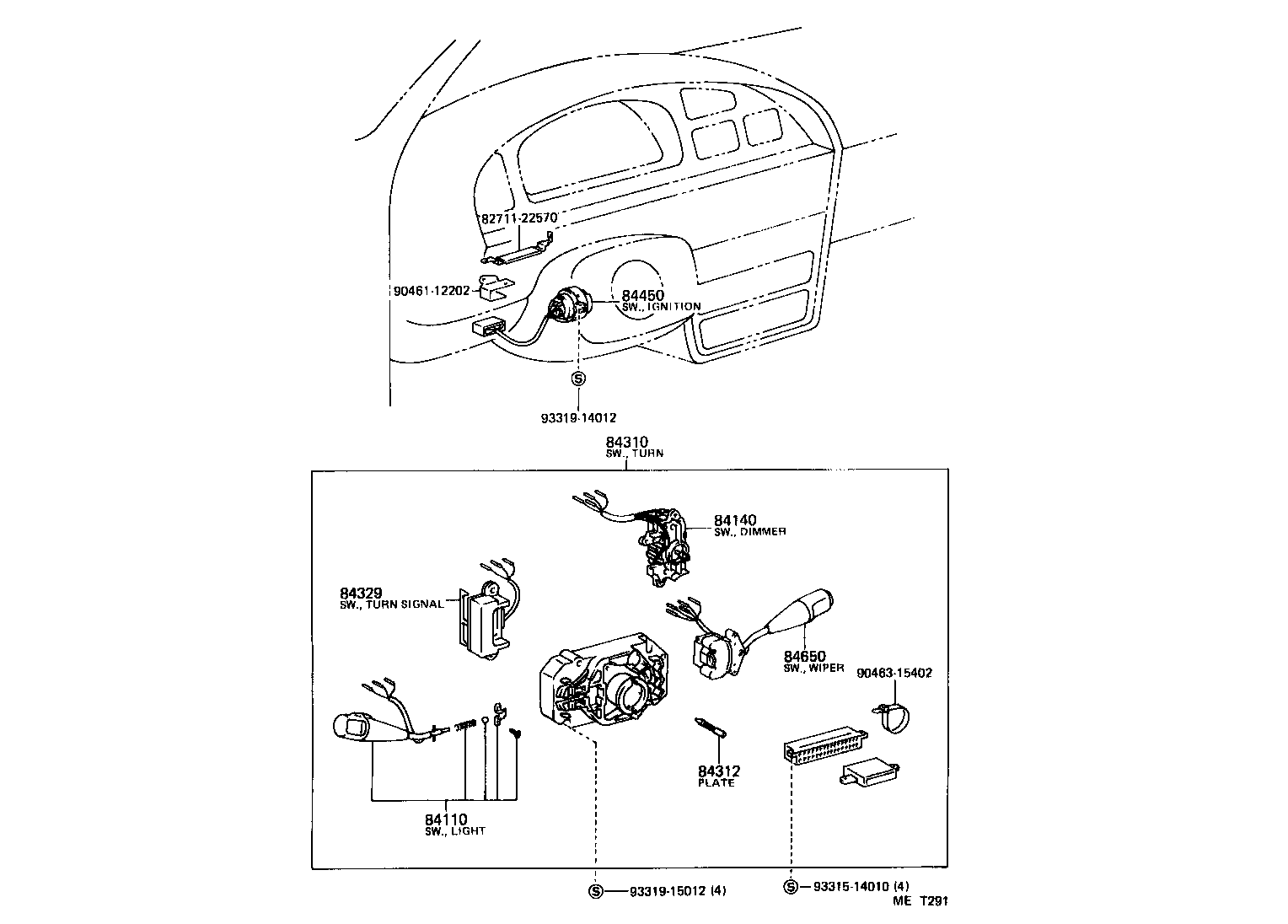

ILLUST NO. 5 OF 7(9201- )LHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80106 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35070 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-28750 |
CR27,KR27,YR29..LHD |
1 | ||
| 84310-28730 |
CR27,KR27,YR29..LHD W(REAR WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
CR2#,KR2#,YR2# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-28020 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-28100 |
CR2#,KR2#,YR2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-28530 |
CR27,KR27,YR29..LHD W(REAR WIPER) |
1 | ||
| 84652-28550 |
CR27,KR27,YR29..LHD |
1 | ||
| Common parts | ||||
| 82711-22570 | ||||
| 90461-12202 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

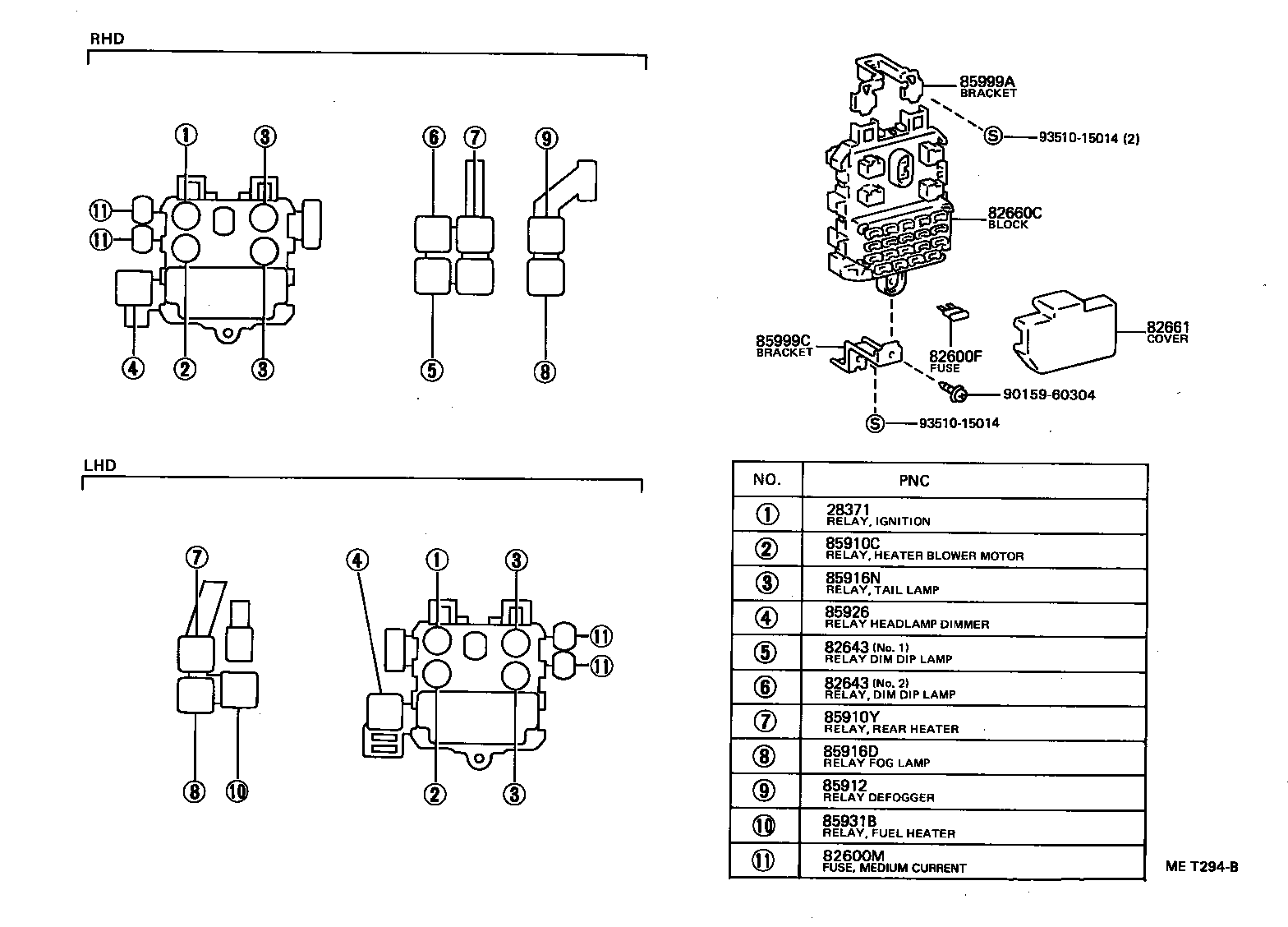

ILLUST NO. 6 OF 7(9201- )
RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02004 |
2C,5K,4YEC..CR2#,KR2#,YR2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CR2#,KR2#,YR2# 7.5A |
7 | ||
| 90982-09002 |
CR2#,KR2#,YR2# 10A |
2 | ||
| 90982-09004 |
CR2#,KR2#,YR2# 20A,YELLOW |
2 | ||
| 90982-09005 |
CR2#,KR2#,YR2# 7.5A |
6 | ||
| 90982-09003 |
CR2#,KR2#,YR2# 15A |
9 | ||
| 90982-09002 |
CR2#,KR2#,YR2# 10A |
1 | ||
| 90982-09003 |
CR2#,KR2#,YR2# 15A |
8 | ||
| 90982-09004 |
CR2#,KR2#,YR2# 20A,YELLOW |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
CR2#,KR2#,YR2# 30A,PINK |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 82660-28150 |
CR2#,KR2#,YR2# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-28100 |
CR2#,KR2#,YR2# |
1 | ||
| 82661-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
CR2#,KR2#,YR2# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02010 |
CR2#,KR2#,YR2# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02010 |
CR2#,KR2#,YR2# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
CR2#,KR2#,YR2# |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
CR2#,KR2#,YR2# |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02004 |
CR27 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-28010 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-28021 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| Common parts | ||||
| 90159-60304 | ||||
| 93510-15014 | ||||

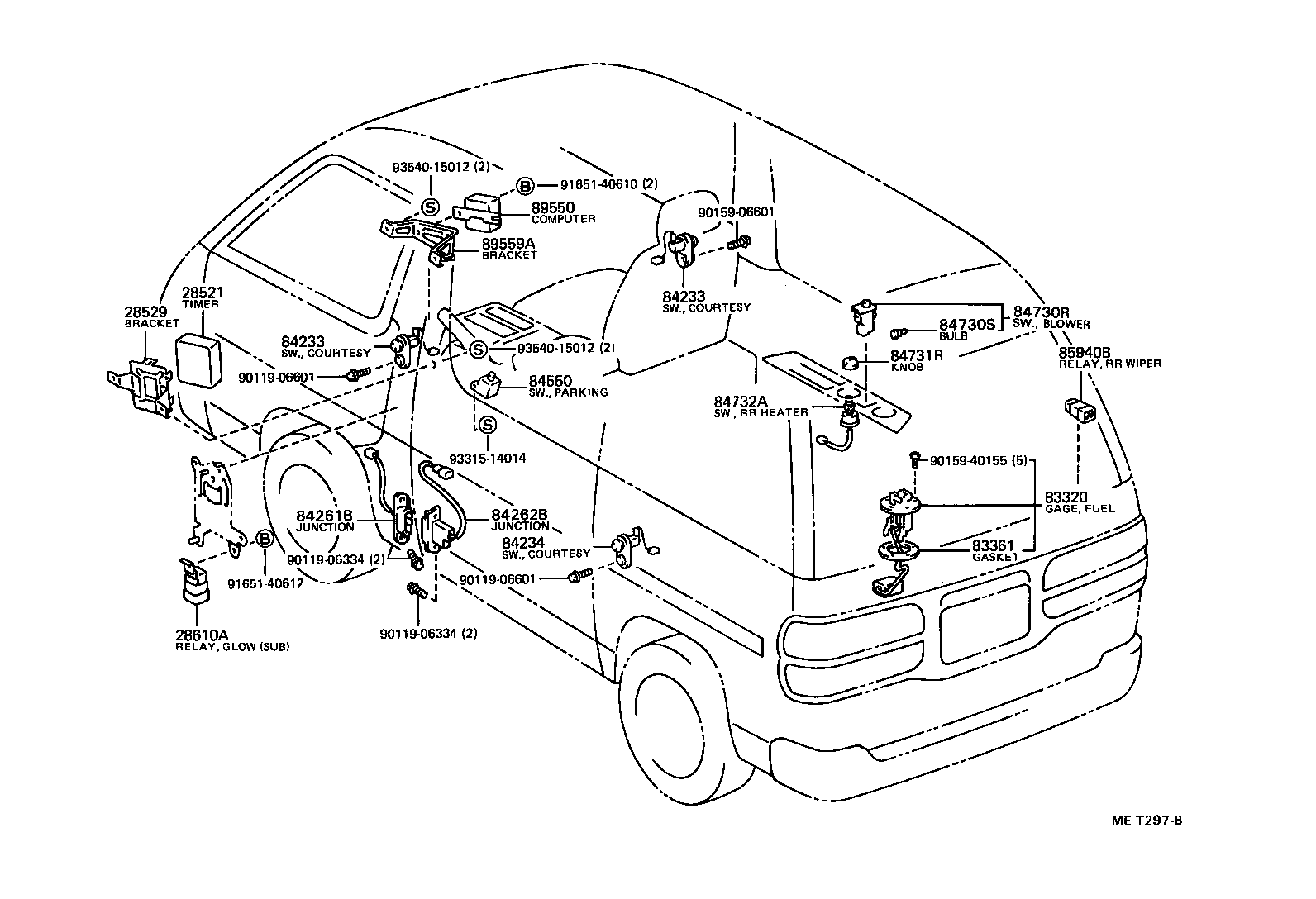

ILLUST NO. 7 OF 7(9201- )
ROOF,DOOR & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64380 |
2C..CR2# |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-64160 |
2C..CR2# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-64140 |
2C..CR2# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80232 |
CR2# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
CR2#,KR2#,YR2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
CR2#,KR2#,YR2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
CR2#,KR2#,YR2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-32050 |
CR2#,KR2#,YR2#..4D |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-28040 |
CR2#,KR2#,YR2#..LHD..4D |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-28010 |
CR2#,KR2#,YR2#..LHD..4D |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-28050 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 90119-06334 | ||||
| 90119-06601 | ||||
| 90159-06601 | ||||
| 90159-40155 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-14014 | ||||
| 93540-15012 | ||||
