CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon

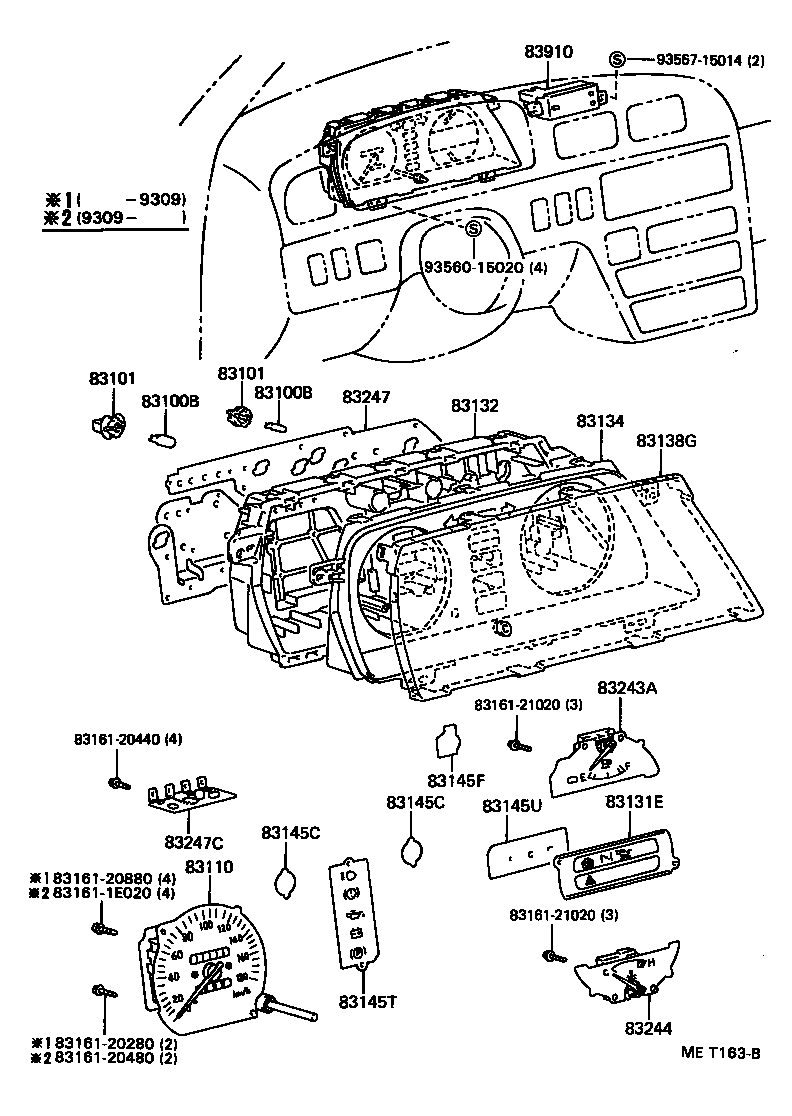

ILLUST NO. 1 OF 2(9201- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-95J00 |
CR2#,KR2#,YR2#..LHD 14V 3.78W |
2 | ||
| 83119-28040 |
CR2#,KR2#,YR2#..LHD 14V3.8W,W(GREEN CAP) |
4 | ||
| 99132-12034 |
CR2#,KR2#,YR2#..LHD 12V 3.4W |
6 | ||
| 90981-11018 |
CR2#..LHD 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
CR2#,YR2#..LHD 12V 3.4W |
8 | ||
| 83109-24030 |
CR2#,YR2#..LHD 12V3.4W W(GREEN CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-95J00 |
CR2#,KR2#,YR2#..LHD 14V 3.78W |
2 | ||
| 83119-28040 |
CR2#,KR2#,YR2#..LHD 14V3.8W,W(GREEN CAP) |
4 | ||
| 99132-12034 |
CR2#,KR2#,YR2#..LHD 12V 3.4W |
6 | ||
| 90981-11018 |
CR2#..LHD 12V 1.2W W/O SOCKET |
6 | ||
| 99132-12034 |
CR2#,YR2#..LHD 12V 3.4W |
8 | ||
| 83109-24030 |
CR2#,YR2#..LHD 12V3.4W W(GREEN CAP) |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CR2#,KR2#,YR2#..LHD 12V 3.4W BULB,BLACK |
12 | ||
| 83101-14040 |
CR2#..LHD 12V 1.4W BULB |
6 | ||
| 83101-20040 |
CR2#,YR2#..LHD 12V 3.4W BULB |
12 | ||
| 83101-20070 |
CR2#,KR2#,YR2#..LHD 12V 3.4W BULB,GREEN |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CR2#,KR2#,YR2#..LHD 12V 3.4W BULB,BLACK |
12 | ||
| 83101-14040 |
CR2#..LHD 12V 1.4W BULB |
6 | ||
| 83101-20040 |
CR2#,YR2#..LHD 12V 3.4W BULB |
12 | ||
| 83101-20070 |
CR2#,KR2#,YR2#..LHD 12V 3.4W BULB,GREEN |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-28250 |
CR2#..LHD |
1 | ||
| 83110-28251 |
CR2#..LHD |
1 | ||
| 83131E - LENS, METER | ||||
| 83131-28020 |
CR2#..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-28200 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-28140 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-28040 |
CR2#,YR2#..LHD |
1 | ||
| 83138-28020 |
CR2#..LHD |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89320 |
CR2#,KR2#,YR2# |
2 | ||
| 83145-89320 |
CR2#,YR2# |
2 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89320 |
CR2#,KR2#,YR2# |
2 | ||
| 83145-89320 |
CR2#,YR2# |
2 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-28280 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83145-28300 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 83145U - LENS, METER, NO.9 | ||||
| 83145-28320 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-2J060 |
CR2#,YR2#..LHD |
1 | ||
| 83243-28080 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-2J020 |
CR2#,YR2#..LHD |
1 | ||
| 83244-28020 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-28800 |
CR2#..LHD |
1 | ||
| 83247-28280 |
CR2#..LHD |
1 | ||
| 83149-2J180 |
CR2#..LHD |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83247-95N29 |
KR27;CR2#,KR21,YR2#..LHD |
1 | ||
| 83247-95N29 |
CR2#,YR2#..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20420 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20480 | ||||
| 83161-20880 | ||||
| 83161-21020 | ||||
| 93560-15020 | ||||
| 93567-15014 | ||||

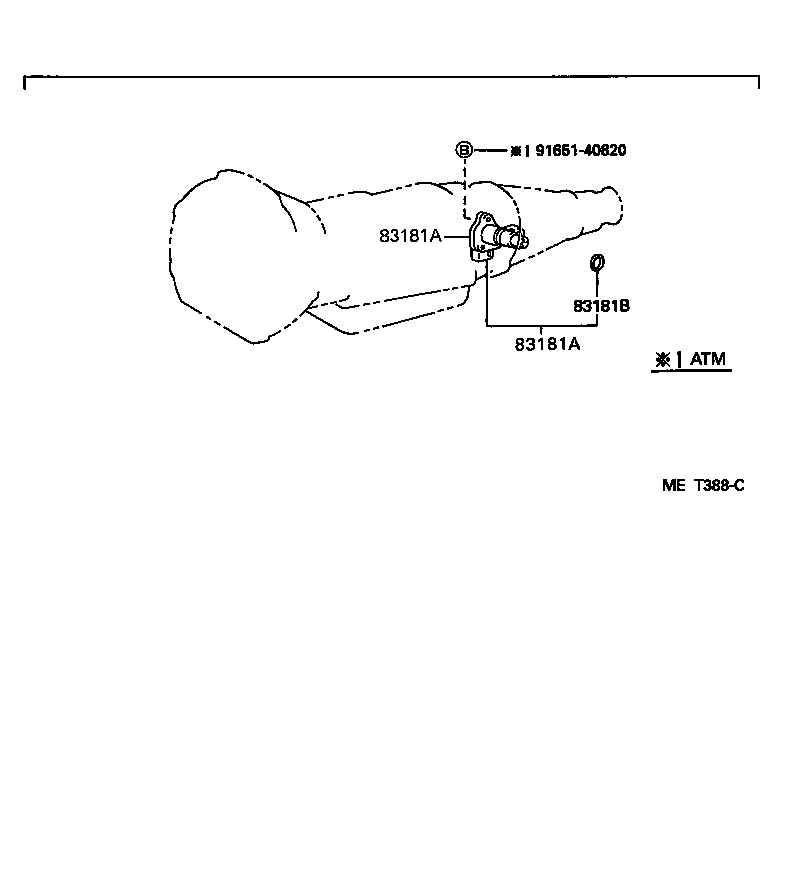

ILLUST NO. 2 OF 2(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-35040 |
CR2#,KR2#,YR2# |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-35040 |
CR2#,KR2#,YR2# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18018 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 91651-40820 | ||||
