CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon
ILLUST NO. 3 OF10(9201- )CR2#
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28230 |
CR2# |
1 | ||
| 82121-28170 |
CR2# |
1 | ||
| 82121-28300 |
CR2# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CR2#,KR2#,YR2# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
CR2# 60A,TERM.:MALE,YEL |
2 | ||
| 90982-08188 |
CR2#,YR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08276 |
CR2#,YR2# L=110,1.25(BLACK) |
1 | ||
| 90982-08206 |
CR2# GLOW RESISTER |
1 | ||
| 90982-08188 |
CR2#,KR2#,YR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82822C - BRACKET, CONNECTOR BLOCK | ||||
| 82822-28060 |
CR2# |
1 | ||
| Common parts | ||||
| 82711-20240 | ||||
| 82711-30070 | ||||
| 90463-12014 | ||||

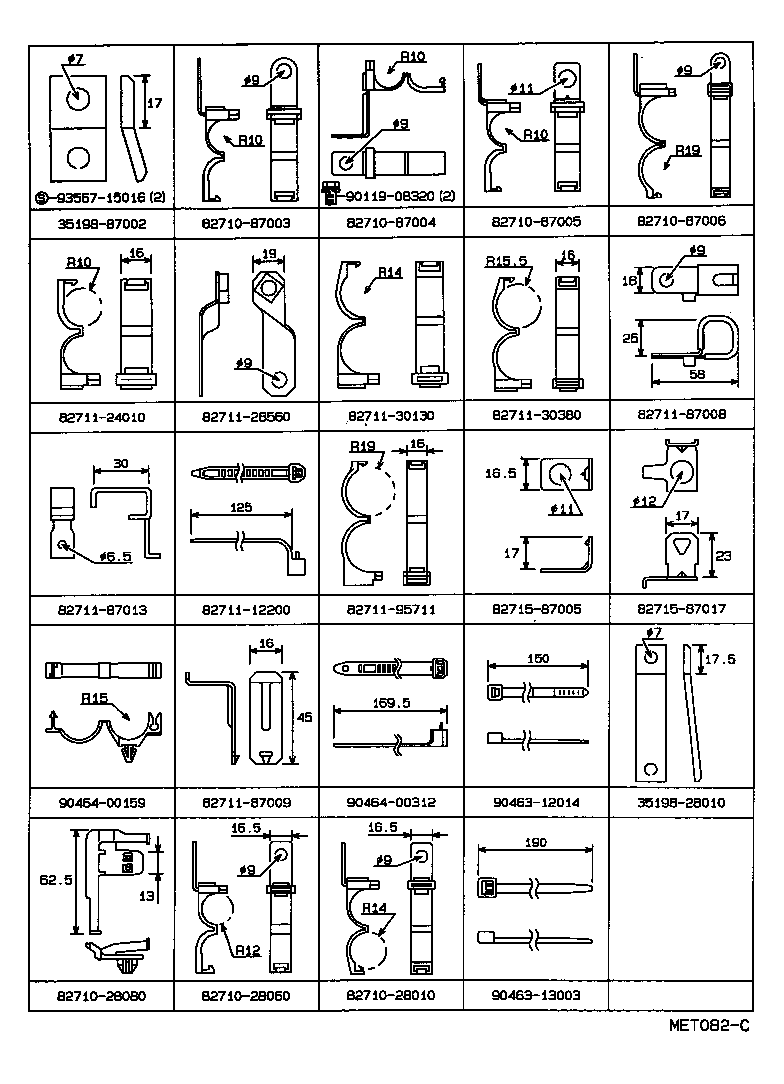

ILLUST NO. 2 OF10(9201- )
ENGINE ROOM WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 35198-28010 | ||||
| 35198-87002 | ||||
| 82710-28010 | ||||
| 82710-28060 | ||||
| 82710-28080 | ||||
| 82710-87003 | ||||
| 82710-87004 | ||||
| 82710-87005 | ||||
| 82710-87006 | ||||
| 82711-12200 | ||||
| 82711-24010 | ||||
| 82711-28560 | ||||
| 82711-30130 | ||||
| 82711-30380 | ||||
| 82711-87008 | ||||
| 82711-87009 | ||||
| 82711-87013 | ||||
| 82711-95711 | ||||
| 82715-87005 | ||||
| 82715-87017 | ||||
| 90119-08320 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 90464-00159 | ||||
| 90464-00312 | ||||
| 93567-15016 | ||||

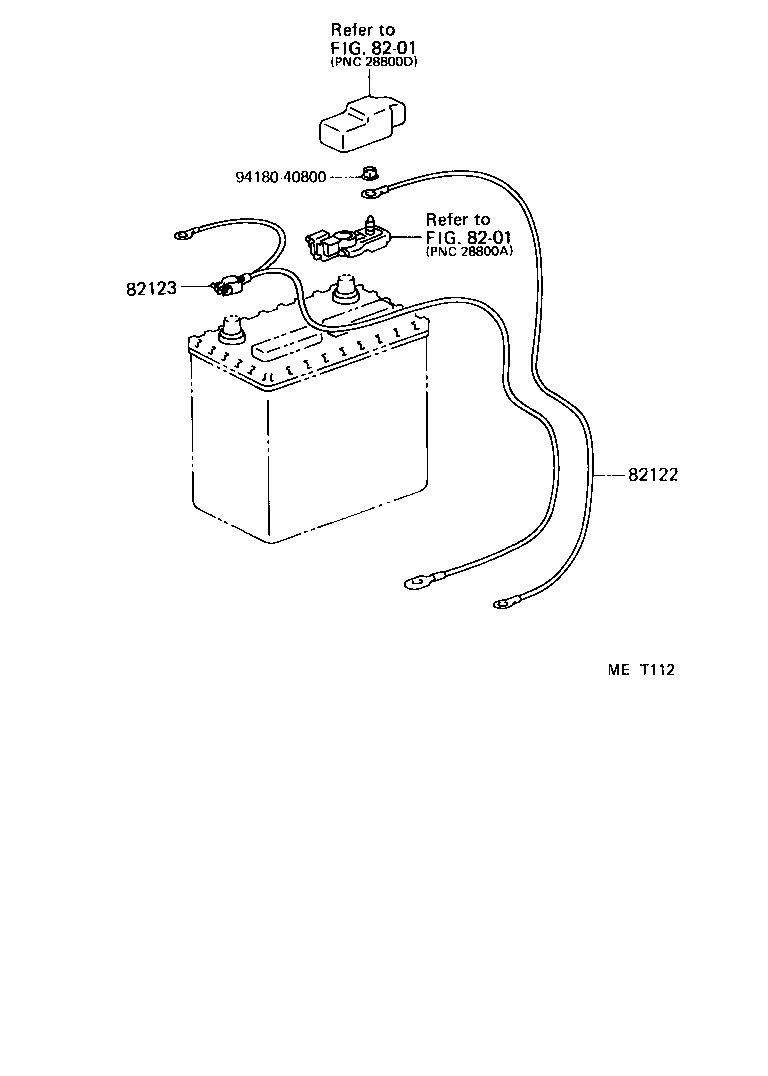

ILLUST NO. 4 OF10(9201- )
BATTERY CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28140 |
CR27 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-28100 |
CR27 |
1 | ||
| Common parts | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 5 OF10(9201- )
BATTERY CABLE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-28010 | ||||
| 82710-28020 | ||||
| 82710-28030 | ||||
| 82710-28040 | ||||
| 82710-87004 | ||||
| 82710-87009 | ||||
| 82711-30070 | ||||
| 82711-30380 | ||||
| 82711-87009 | ||||
| 82711-87015 | ||||
| 82711-87025 | ||||
| 82711-87026 | ||||
| 82715-28400 | ||||
| 90461-10275 | ||||
| 90463-12014 | ||||
| 90463-20303 | ||||
| 91611-60814 | ||||
ILLUST NO. 7 OF10(9201- )
DOOR & ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-28350 |
CR2#,KR2#,YR2# |
1 | ||
| 82171-2J070 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 90950-01065 | ||||
| 90950-01817 | ||||

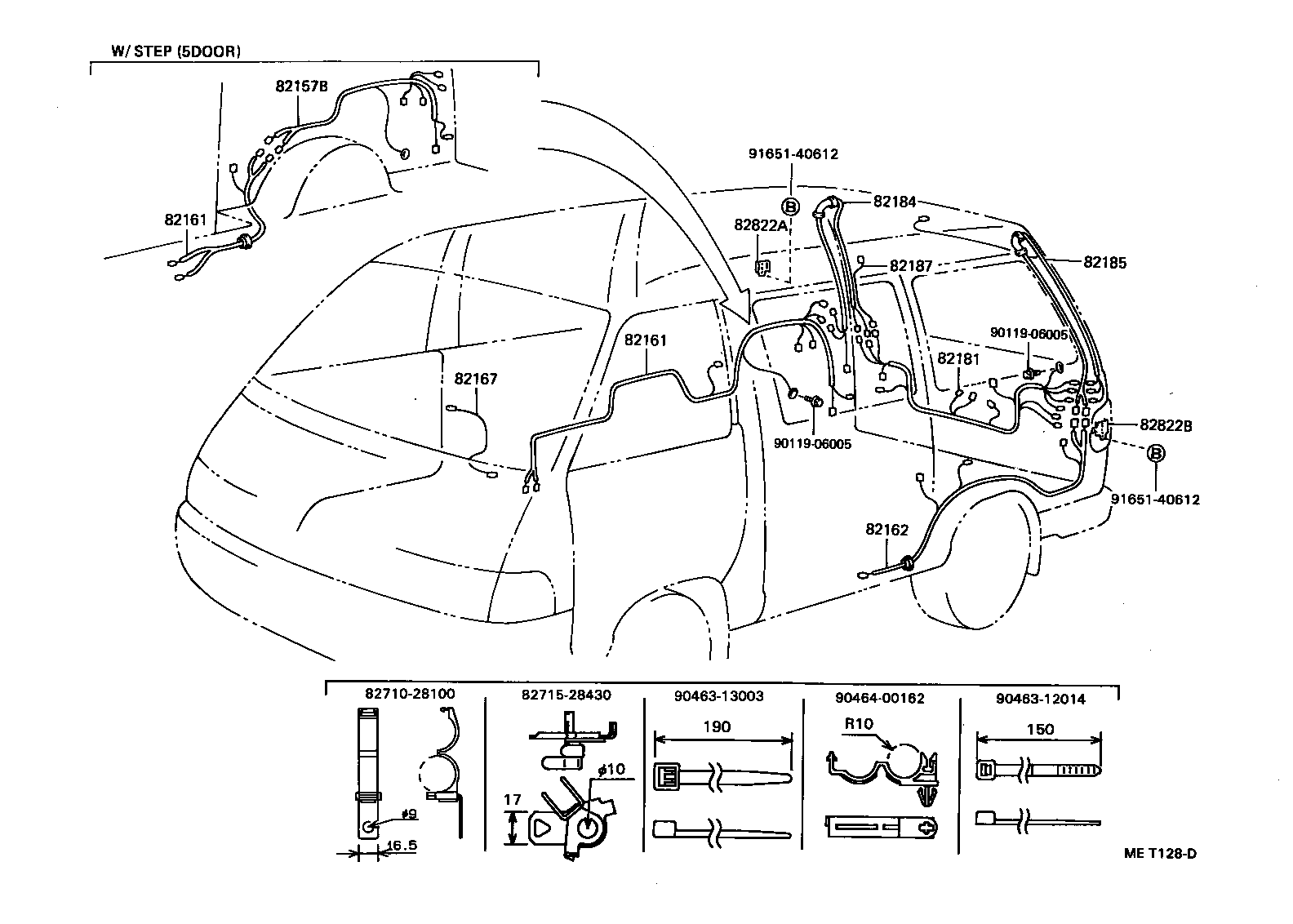

ILLUST NO. 8 OF10(9201- )
FLOOR & BACK DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82157B - WIRE, STEP REAR FLOOR, RH | ||||
| 82157-28010 |
CR27,KR27,YR29..LHD |
1 | ||
| 82157-28080 |
CR27,KR27,YR29..LHD W(REAR WIPER) |
1 | ||
| 82157-28020 |
CR27,KR27,YR29..LHD W(*RW) |
1 | ||
| 82157-28070 |
CR27,KR27,YR29..LHD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-28260 |
CR27,KR27,YR29..LHD |
1 | ||
| 82161-28270 |
CR27,KR27,YR29..LHD W(*RW) |
1 | ||
| 82161-28460 |
CR27,KR27,YR29..LHD W(REAR WIPER) |
1 | ||
| 82161-28450 |
CR27,KR27,YR29..LHD |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-28260 |
CR27,KR27,YR29..LHD |
1 | ||
| 82161-28270 |
CR27,KR27,YR29..LHD W(*RW) |
1 | ||
| 82161-28460 |
CR27,KR27,YR29..LHD W(REAR WIPER) |
1 | ||
| 82161-28450 |
CR27,KR27,YR29..LHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-28300 |
CR27,KR27,YR29..LHD..4D |
1 | ||
| 82162-28610 |
CR27,KR27,YR29..LHD..4D W(*RWD) OR W(*EL) |
1 | ||
| 82162-28600 |
CR27,KR27,YR29..LHD..4D |
1 | ||
| 82162-28310 |
CR27,KR27,YR29..LHD..4D W(REAR WINDOW DEFOGGER) OR W(POWER DOOR LOCK) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-28040 |
CR27,KR27..LHD..4D..02S DENMARK SPEC |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-28260 |
CR27,KR27,YR29..LHD |
1 | ||
| 82181-28480 |
CR27,KR27,YR29..LHD W(REAR WIPER) |
1 | ||
| 82181-28240 |
CR2#,KR2#,YR2#..LHD W(POWER DOOR LOCK) |
1 | ||
| 82181-28490 |
CR2#,KR2#,YR2#..LHD W(*EL) |
1 | ||
| 82181-28250 |
CR27,KR27,YR29..LHD W(*RW) |
1 | ||
| 82181-28470 |
CR27,KR27,YR29..LHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-28150 |
CR2#,KR2#,YR2# |
1 | ||
| 82184-28060 |
CR2#,KR2#,YR2# |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-28270 |
CR27,KR27,YR29 |
1 | ||
| 82185-28320 |
CR2#,KR2#,YR2#..LHD W(POWER DOOR LOCK) |
1 | ||
| 82185-28310 |
CR27,KR27,YR29 W(*RWD) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-87001 |
CR2#,KR2#,YR2# |
2 | ||
| 82822A - BRACKET, CONNECTOR BLOCK | ||||
| 82822-28030 |
CR2#,KR2#,YR2# |
1 | ||
| 82822B - BRACKET, CONNECTOR BLOCK | ||||
| 82822-28051 |
CR2#,KR2#,YR2# |
1 | ||
| 82822-28050 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 82710-28100 | ||||
| 82715-28430 | ||||
| 90119-06005 | ||||
| 90463-12014 | ||||
| 90463-13003 | ||||
| 90464-00162 | ||||
| 91651-40612 | ||||
ILLUST NO. 9 OF 1(9201- )
PROTECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28550 |
CR2#,KR2# |
1 | ||
| 82817-87015 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-28620 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28550 |
CR2#,KR2# |
1 | ||
| 82817-87015 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-28620 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28550 |
CR2#,KR2# |
1 | ||
| 82817-87015 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-28620 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28390 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817-28590 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28390 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817-28590 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28390 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817-28590 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-87013 |
CR27,KR27..LHD..4D..02S |
8 | ||
| Common parts | ||||
| 82817-28040 | ||||
| 82817-28310 | ||||
| 82817-28390 | ||||
| 82817-28550 | ||||
| 82817-28590 | ||||
| 82817-87013 | ||||
| 82817-87015 | ||||
| 91651-40816 | ||||
(9201- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08102 | ||||

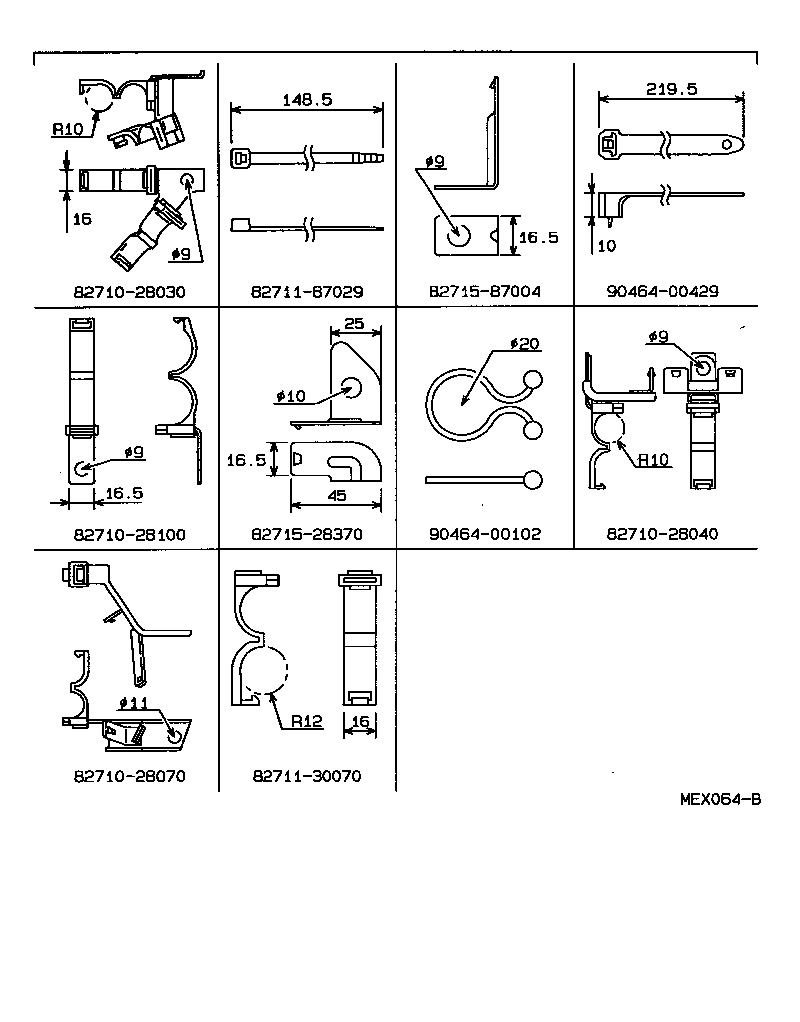

ILLUST NO. 2 OF10(9201- )
ENGINE ROOM WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-28030 | ||||
| 82710-28040 | ||||
| 82710-28070 | ||||
| 82710-28100 | ||||
| 82711-30070 | ||||
| 82711-87029 | ||||
| 82715-28370 | ||||
| 82715-87004 | ||||
| 90464-00102 | ||||
| 90464-00429 | ||||
ILLUST NO. 5 OF10(9201- )
BATTERY CABLE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-28110 | ||||
| 82710-87003 | ||||
| 82711-20240 | ||||
| 90461-10526 | ||||
| 90989-01025 | ||||

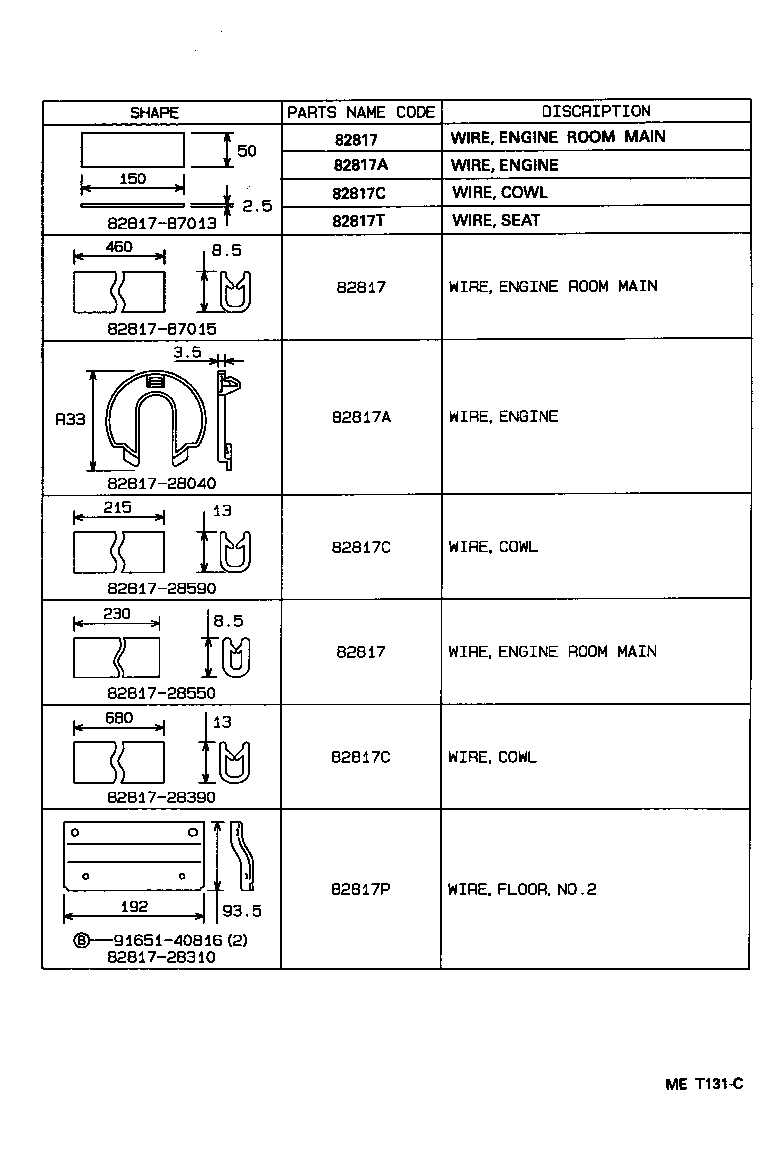

ILLUST NO. 9 OF10(9201- )
PROTECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28550 |
CR2#,KR2# |
1 | ||
| 82817-87015 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-28620 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28550 |
CR2#,KR2# |
1 | ||
| 82817-87015 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-28620 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28390 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817-28590 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28390 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817-28590 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28390 |
CR2#,KR2#,YR2# |
1 | ||
| 82817-87013 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 82817-28590 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| Common parts | ||||
| 82817-28600 | ||||
| 82817-28620 | ||||
| 82817-28650 | ||||
| 82817-2J040 | ||||
| 82817-87009 | ||||

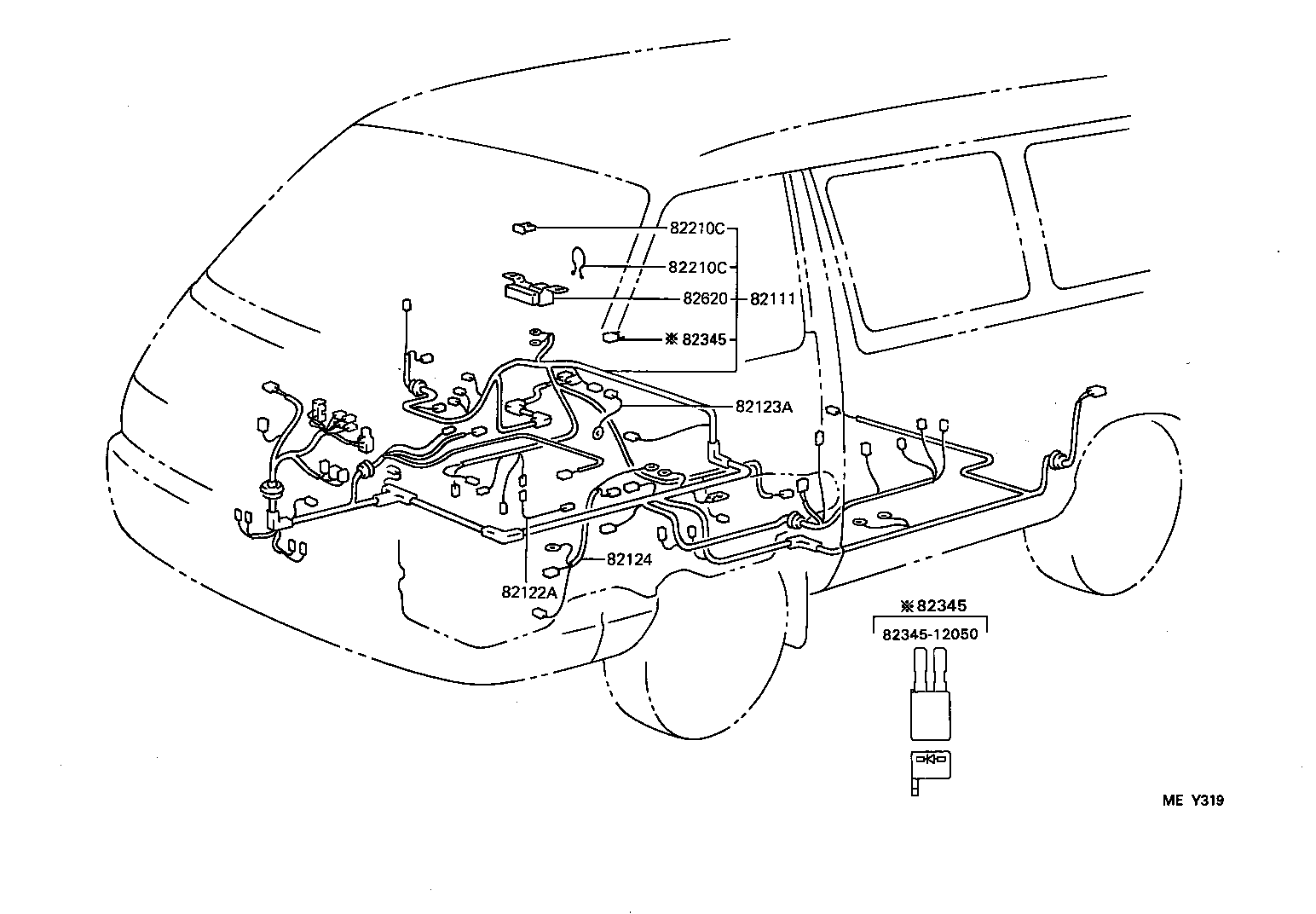

ILLUST NO. 1 OF10(9201- )LHD
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2J240 |
CR27..LHD..4D |
1 | ||
| 82111-2J260 |
CR27..LHD..4D..02S DENMARK SPEC |
1 | ||
| 82111-2R700 |
CR27..LHD..4D |
1 | ||
| 82111-2R720 |
CR27..LHD..4D..02S DENMARK SPEC |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CR2#,KR2#,YR2# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
CR2# 60A,TERM.:MALE,YEL |
2 | ||
| 90982-08188 |
CR2#,YR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08276 |
CR2#,YR2# L=110,1.25(BLACK) |
1 | ||
| 90982-08206 |
CR2# GLOW RESISTER |
1 | ||
| 90982-08188 |
CR2#,KR2#,YR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CR2#,KR2#,YR2# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
CR2# 60A,TERM.:MALE,YEL |
2 | ||
| 90982-08188 |
CR2#,YR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08276 |
CR2#,YR2# L=110,1.25(BLACK) |
1 | ||
| 90982-08206 |
CR2# GLOW RESISTER |
1 | ||
| 90982-08188 |
CR2#,KR2#,YR2# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
KR27..5D;KR27..RHD;KR27..05S;CR2#,KR21,YR2# |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
KR27..5D;KR27..RHD;KR27..05S;CR2#,KR21,YR2# |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-28040 |
CR2# |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||

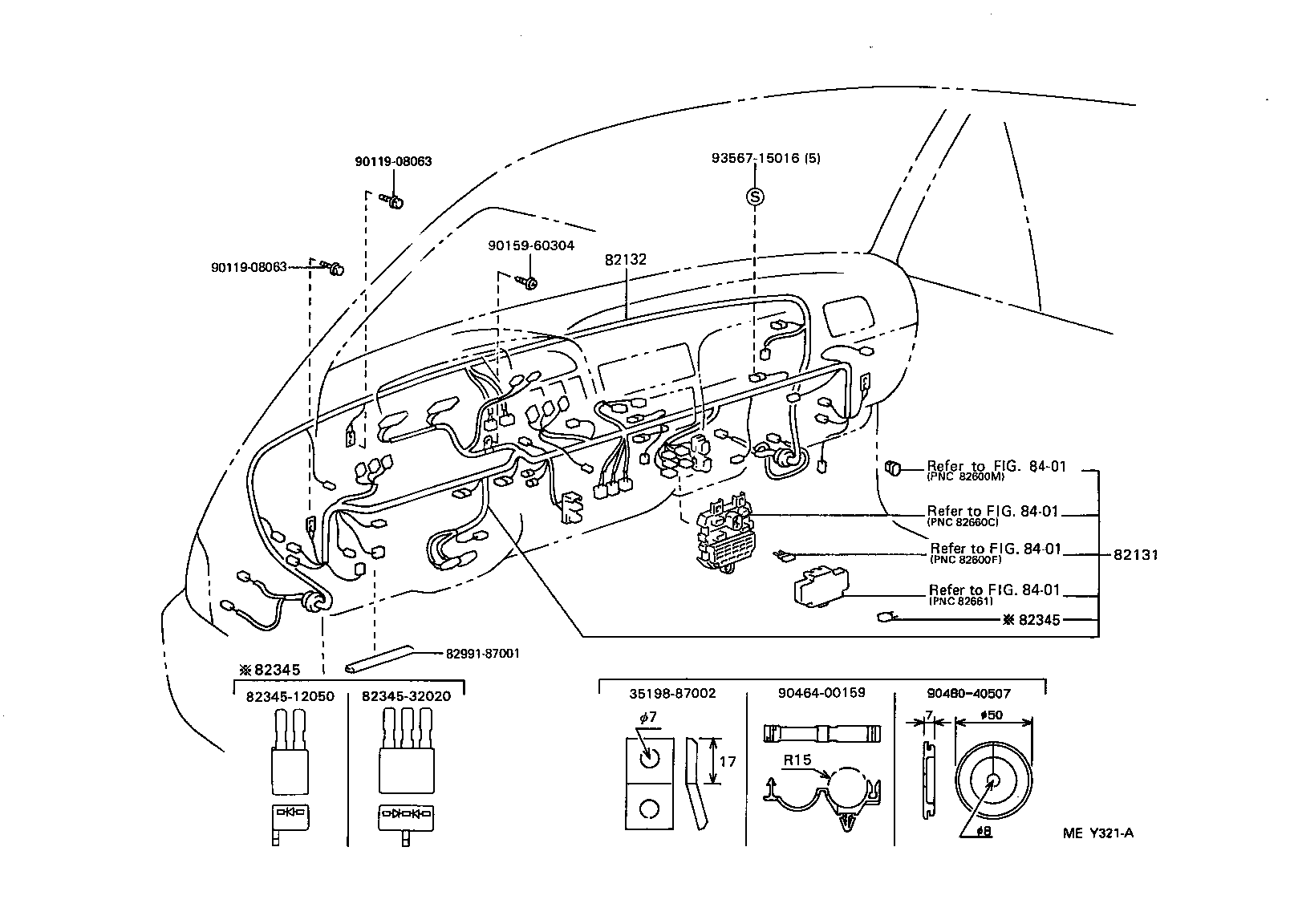

ILLUST NO. 6 OF10(9201- )LHD
COWL WIIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2J820 |
CR27..LHD..4D..02S DENMARK SPEC |
1 | ||
| 82131-2J810 |
CR27..LHD |
1 | ||
| 82131-2R850 |
CR27..LHD..4D..02S DENMARK SPEC |
1 | ||
| 82131-2R840 |
CR27..LHD |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-28470 |
CR2#,YR2#..LHD |
1 | ||
| 82132-28320 |
CR2#,YR2#..LHD |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
KR27..5D;KR27..RHD;KR27..05S;CR2#,KR21,YR2# |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
CR2#,KR2#,YR2# |
1 | ||
| 82345-12050 |
KR27..5D;KR27..RHD;KR27..05S;CR2#,KR21,YR2# |
1 | ||
| Common parts | ||||
| 35198-87002 | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||
| 82991-87001 | ||||
| 90119-08063 | ||||
| 90159-60304 | ||||
| 90464-00159 | ||||
| 90480-40507 | ||||
| 93567-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
