CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )LHD

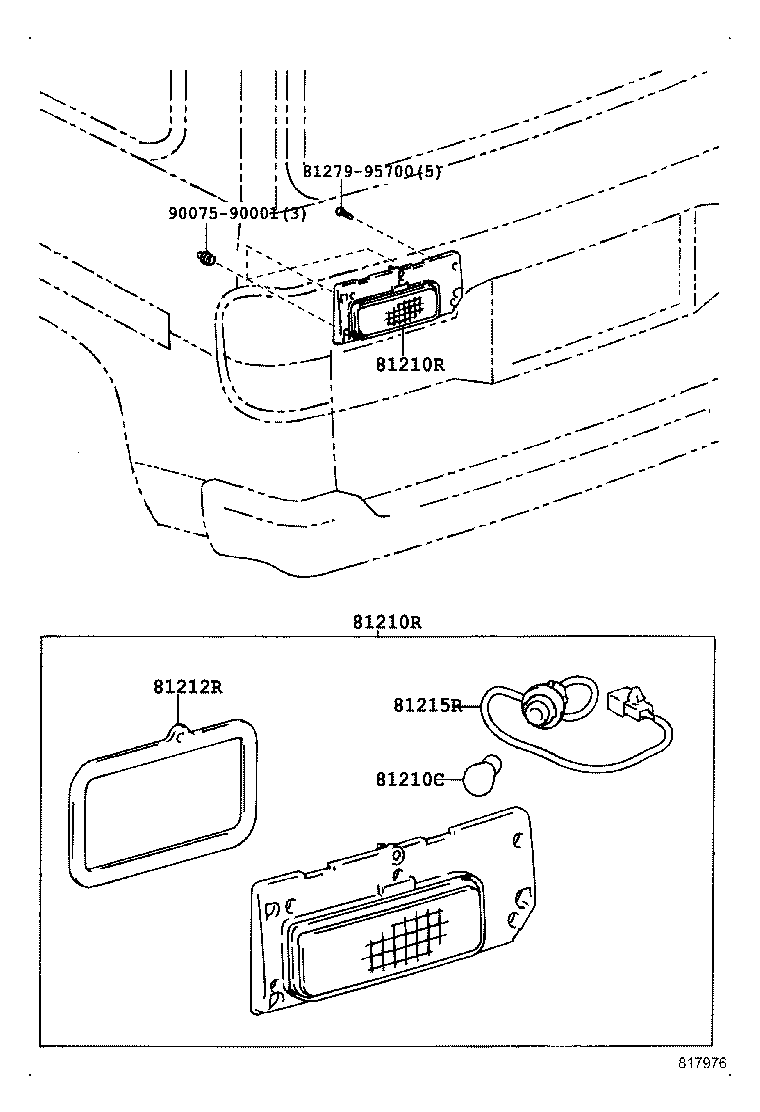

Click highlighted areas on diagram

diagram 81210C 81210R 81210R 81212R 81215R 8127995700 9007590001
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

CR2#,KR2#,YR2#

12V 21W

 1
81210R - LAMP ASSY, REAR FOG
81220-28020

CR2#,KR2#,YR2#..LHD

 1
81210R - LAMP ASSY, REAR FOG
81220-28020

CR2#,KR2#,YR2#..LHD

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81674-28020

CR2#,KR2#,YR2#

 1
81215R - SOCKET & WIRE, REAR FOG LAMP
81215-28060

CR2#,KR2#,YR2#

 1
Common parts
81279-95700
90075-90001
