CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )LHD

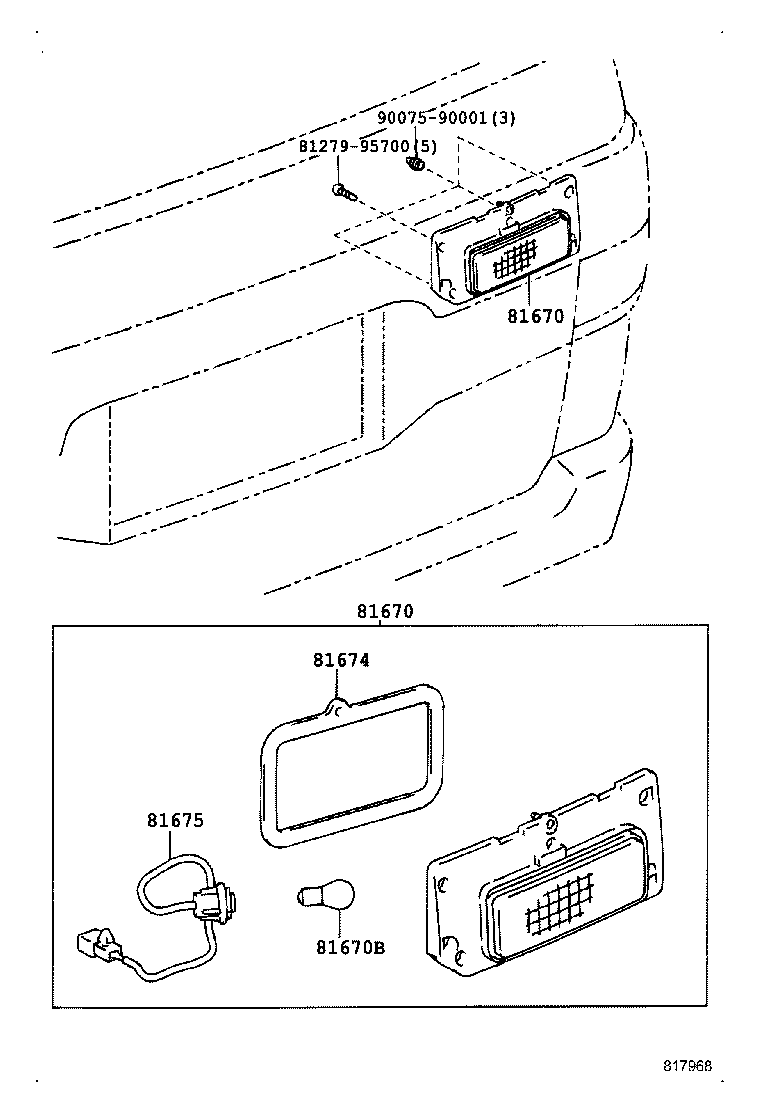

Click highlighted areas on diagram

diagram 8127995700 81670 81670 81670B 81674 81675 9007590001
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-28020

CR27,KR27,YR29..LHD

 1
81670 - LAMP ASSY, BACK-UP, RH
81670-28020

CR27,KR27,YR29..LHD

 1
81670B - BULB(FOR BACK-UP LAMP)
99132-11210

CR2#,KR2#,YR2#

12V 21W

 1
81674 - GASKET, BACK-UP LAMP BODY, RH
81674-28020

CR2#,KR2#,YR2#..LHD

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-28020

CR2#,KR2#,YR2#

 1
Common parts
81279-95700
90075-90001
