CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

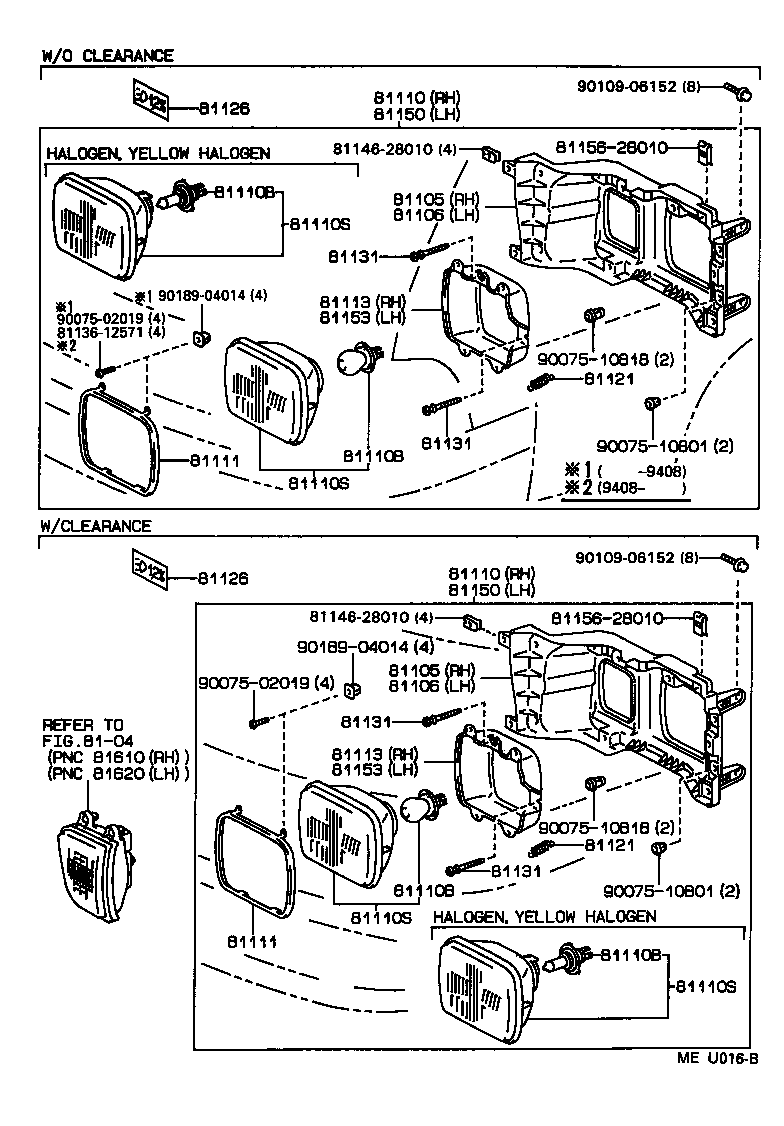

Click highlighted areas on diagram

diagram 8104 81105 81105 81106 81106 81110 81110 81110B 81110B 81110B 81110B 81110S 81110S 81110S 81110S 81111 81111 81113 81113 81121 81121 81126 81126 81131 81131 81131 81131 8113612571 8114628010 8114628010 81150 81150 81153 81153 8115628010 8115628010 9007502019 9007502019 9007510801 9007510801 9007510818 9007510818 9010906152 9010906152 9018904014 9018904014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81115-28010

CR2#,KR2#,YR2#

 1
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81115-28010

CR2#,KR2#,YR2#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81155-28010

CR2#,KR2#,YR2#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81155-28010

CR2#,KR2#,YR2#

 1
81110 - HEADLAMP ASSY, RH
81110-28190

CR2#,KR2#,YR2#..LHD

 1
81110-28200

CR2#,KR2#,YR2#..LHD

HALOGEN YELLOW

 1
81110 - HEADLAMP ASSY, RH
81110-28190

CR2#,KR2#,YR2#..LHD

 1
81110-28200

CR2#,KR2#,YR2#..LHD

HALOGEN YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HAL *YE

 2
90981-13015

CR2#,KR2#,YR2#

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HAL *YE

 2
90981-13015

CR2#,KR2#,YR2#

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HAL *YE

 2
90981-13015

CR2#,KR2#,YR2#

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13016

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HAL *YE

 2
90981-13015

CR2#,KR2#,YR2#

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HWS

 2
90981-04009

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HYS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HWS

 2
90981-04009

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HYS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HWS

 2
90981-04009

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HYS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04008

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HWS

 2
90981-04009

CR2#,KR2#,YR2#..LHD

12V 60/55W,*HYS

 2
81111 - RING, SEALED BEAM RETAINING
81111-2B360

CR2#,KR2#,YR2#

 2
81111-17010

CR2#,YR2#

 2
81111 - RING, SEALED BEAM RETAINING
81111-2B360

CR2#,KR2#,YR2#

 2
81111-17010

CR2#,YR2#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16220

CR2#,YR2#

 1
81113-28010

CR2#,KR2#,YR2#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16220

CR2#,YR2#

 1
81113-28010

CR2#,KR2#,YR2#

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CR2#,KR2#,YR2#

 2
81121 - SPRING, HEADLAMP TENSION
81121-16020

CR2#,KR2#,YR2#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

CR2#,KR2#,YR2#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

CR2#,KR2#,YR2#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

CR2#,KR2#,YR2#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

CR2#,KR2#,YR2#

 4
81150 - HEADLAMP ASSY, LH
81150-28190

CR2#,KR2#,YR2#..LHD

 1
81150-28200

CR2#,KR2#,YR2#..LHD

HALOGEN YELLOW

 1
81150 - HEADLAMP ASSY, LH
81150-28190

CR2#,KR2#,YR2#..LHD

 1
81150-28200

CR2#,KR2#,YR2#..LHD

HALOGEN YELLOW

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16220

CR2#,YR2#

 1
81153-28010

CR2#,KR2#,YR2#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16220

CR2#,YR2#

 1
81153-28010

CR2#,KR2#,YR2#

 1
Common parts
81136-12571
81146-28010
81156-28010
90075-02019
90075-10801
90075-10818
90109-06152
90189-04014
Linked diagrams
8104
