CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon
Production
Jan 1992
-
Jan 1995
Engine
2C
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )CR2#

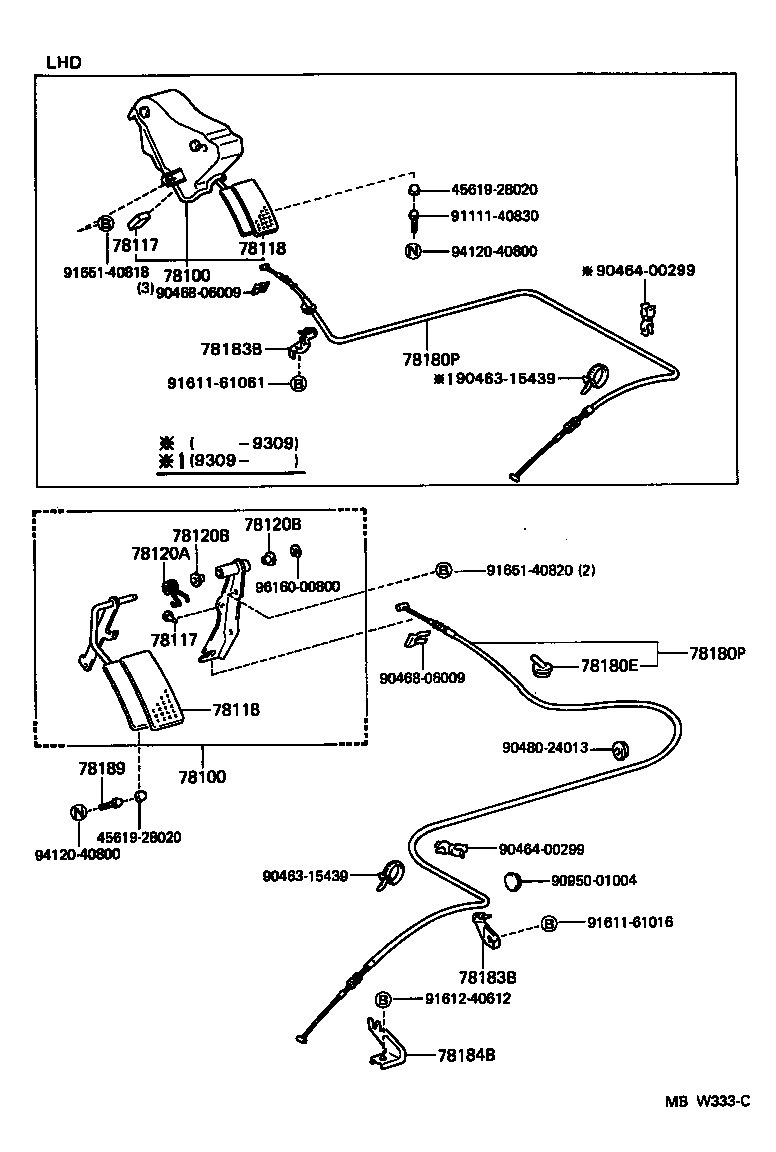

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78105-28070 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78105-28070 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-05006 |
CR2#,KR2#,YR2# |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-05006 |
CR2#,KR2#,YR2# |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CR2#,KR2#,YR2# |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95700 |
CR2#,KR2#,YR2# |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-28130 |
CR2#..LHD |
1 | ||
| 78180-28200 |
CR2#..LHD |
1 | ||
| 78180-28100 |
CR2#..LHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-28130 |
CR2#..LHD |
1 | ||
| 78180-28200 |
CR2#..LHD |
1 | ||
| 78180-28100 |
CR2#..LHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-87001 |
CR2# |
1 | ||
| 78183-28150 |
CR2# |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-87001 |
CR2# |
1 | ||
| 78183-28150 |
CR2# |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-28020 |
CR2# |
1 | ||
| 78184-87006 |
CR2# |
1 | ||
| Common parts | ||||
| 45619-28020 | ||||
| 90463-15439 | ||||
| 90464-00299 | ||||
| 90468-06009 | ||||
| 90480-24013 | ||||
| 90950-01004 | ||||
| 91111-40830 | ||||
| 91611-61016 | ||||
| 91611-61061 | ||||
| 91612-40612 | ||||
| 91651-40818 | ||||
| 91651-40820 | ||||
| 94120-40800 | ||||
| 96160-00800 | ||||
