CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )4D

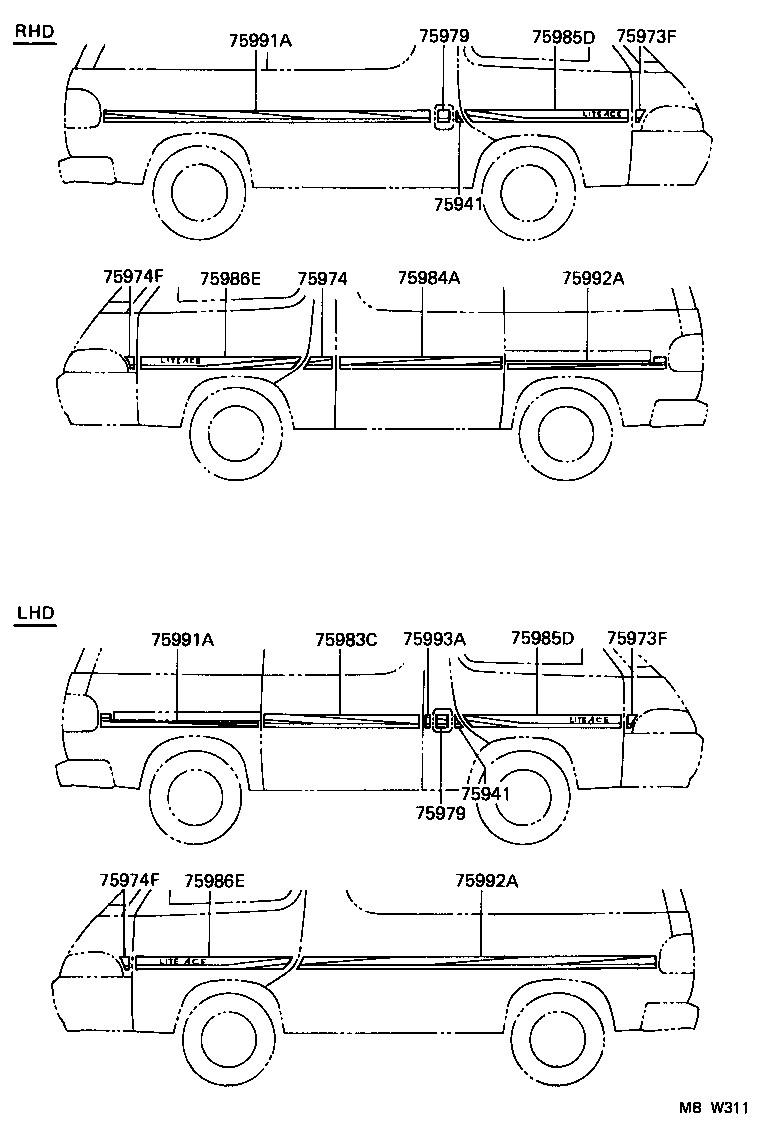

Click highlighted areas on diagram

diagram 75941 75941 75973F 75973F 75974 75974F 75974F 75979 75979 75983C 75984A 75985D 75985D 75986E 75986E 75991A 75991A 75992A 75992A 75993A
Part # Description Qty Price
75941 - STRIPE, CENTER PILLAR, RH
75941-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75941-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75941 - STRIPE, CENTER PILLAR, RH
75941-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75941-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75973F - STRIPE, FRONT SIDE PANEL, RH
75973-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75973-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75973F - STRIPE, FRONT SIDE PANEL, RH
75973-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75973-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75974F - STRIPE, FRONT SIDE PANEL, LH
75974-28070E0

CR27,KR27,YR29

ORANGE,045 ,3H7 ,6L3 ,8B2

 1
75974-28070J0

CR27,KR27,YR29

BLUE,045 ,3H7 ,6L3 ,8B2

 1
75974F - STRIPE, FRONT SIDE PANEL, LH
75974-28070E0

CR27,KR27,YR29

ORANGE,045 ,3H7 ,6L3 ,8B2

 1
75974-28070J0

CR27,KR27,YR29

BLUE,045 ,3H7 ,6L3 ,8B2

 1
75979 - STRIPE, FUEL FILLER OPENING LID
75979-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75979-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75979 - STRIPE, FUEL FILLER OPENING LID
75979-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75979-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75983C - STRIPE, SLIDE DOOR, RH
75983-28010E0

CR27,KR27,YR29..LHD

ORANGE,3H7 ,6L3

 1
75983-28010J0

CR2#,KR2#,YR2#..LHD

BLUE,045 ,8B2

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75985-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75985D - STRIPE, FRONT DOOR OUTSIDE, RH
75985-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75985-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75986-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75986E - STRIPE, FRONT DOOR OUTSIDE, LH
75986-28070J0

CR2#,KR2#,YR2#

BLUE,045 ,8B2

 1
75986-28070E0

CR27,KR27,YR29

ORANGE,3H7 ,6L3

 1
75991A - STRIPE, QUARTER, RH
75991-28140E0

CR27,KR27,YR29..LHD

ORANGE,3H7 ,6L3

 1
75991-28140J0

CR2#,KR2#,YR2#..LHD

BLUE,045 ,8B2

 1
75991A - STRIPE, QUARTER, RH
75991-28140E0

CR27,KR27,YR29..LHD

ORANGE,3H7 ,6L3

 1
75991-28140J0

CR2#,KR2#,YR2#..LHD

BLUE,045 ,8B2

 1
75992A - STRIPE, QUARTER, LH
75992-28140E0

CR27,KR27,YR29..LHD..4D

ORANGE,3H7 ,6L3

 1
75992-28140J0

CR2#,KR2#,YR2#..LHD..4D

BLUE,045 ,8B2

 1
75992A - STRIPE, QUARTER, LH
75992-28140E0

CR27,KR27,YR29..LHD..4D

ORANGE,3H7 ,6L3

 1
75992-28140J0

CR2#,KR2#,YR2#..LHD..4D

BLUE,045 ,8B2

 1
75993A - STRIPE, QUARTER, REAR RH
75993-28010E0

CR27,KR27,YR29..LHD

ORANGE,045 ,3H7 ,6L3 ,8B2

 1
75993-28010J0

CR27,KR27,YR29..LHD

BLUE,045 ,3H7 ,6L3 ,8B2

 1
