CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

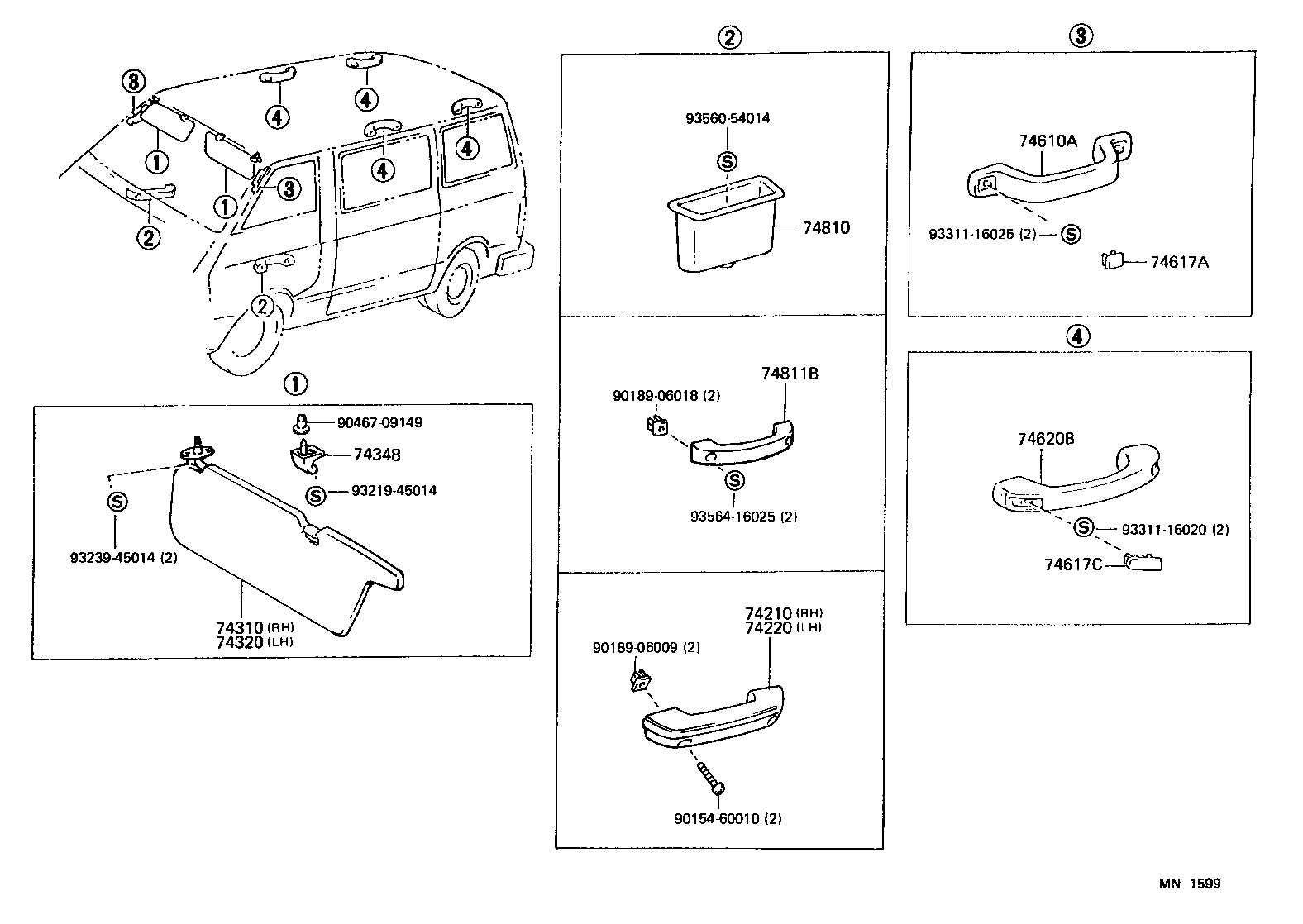

Click highlighted areas on diagram

diagram 74210 74220 74310 74320 74348 74610A 74617A 74617C 74620B 74810 74811B 9015460010 9018906009 9018906018 9046709149 9321945014 9323945014 9331116020 9331116025 9356054014 9356416025
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-28480B1

CR2#,KR2#,YR2#

LIGHT GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-28260B0

CR2#,KR2#,YR2#

LIGHT GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-32010B1

CR27,KR27,YR29

LIGHT GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-12030B1

CR2#,YR2#

GRAY,TRIM1#

 2
74610-12030B1

CR2#,KR2#,YR2#

GRAY,TRIM1#

 2
74617A - PLUG, ASSIST GRIP
74617-1601041

CR2#,KR2#,YR2#

LIGHT GRAY,TRIM1#

 4
74617-16010B8

CR2#,KR2#,YR2#

LI. GRAY,TRIM1#

 4
74617-16010B8

CR2#,YR2#

LI. GRAY,TRIM1#

 4
74811B - HANDLE, DOOR PULL
69285-95403B0

CR27,KR27,YR29..LHD

GRAY,TRIM1#

 2
Common parts
90154-60010
90189-06009
90189-06018
90467-09149
93219-45014
93239-45014
93311-16020
93311-16025
93560-54014
93564-16025
