CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

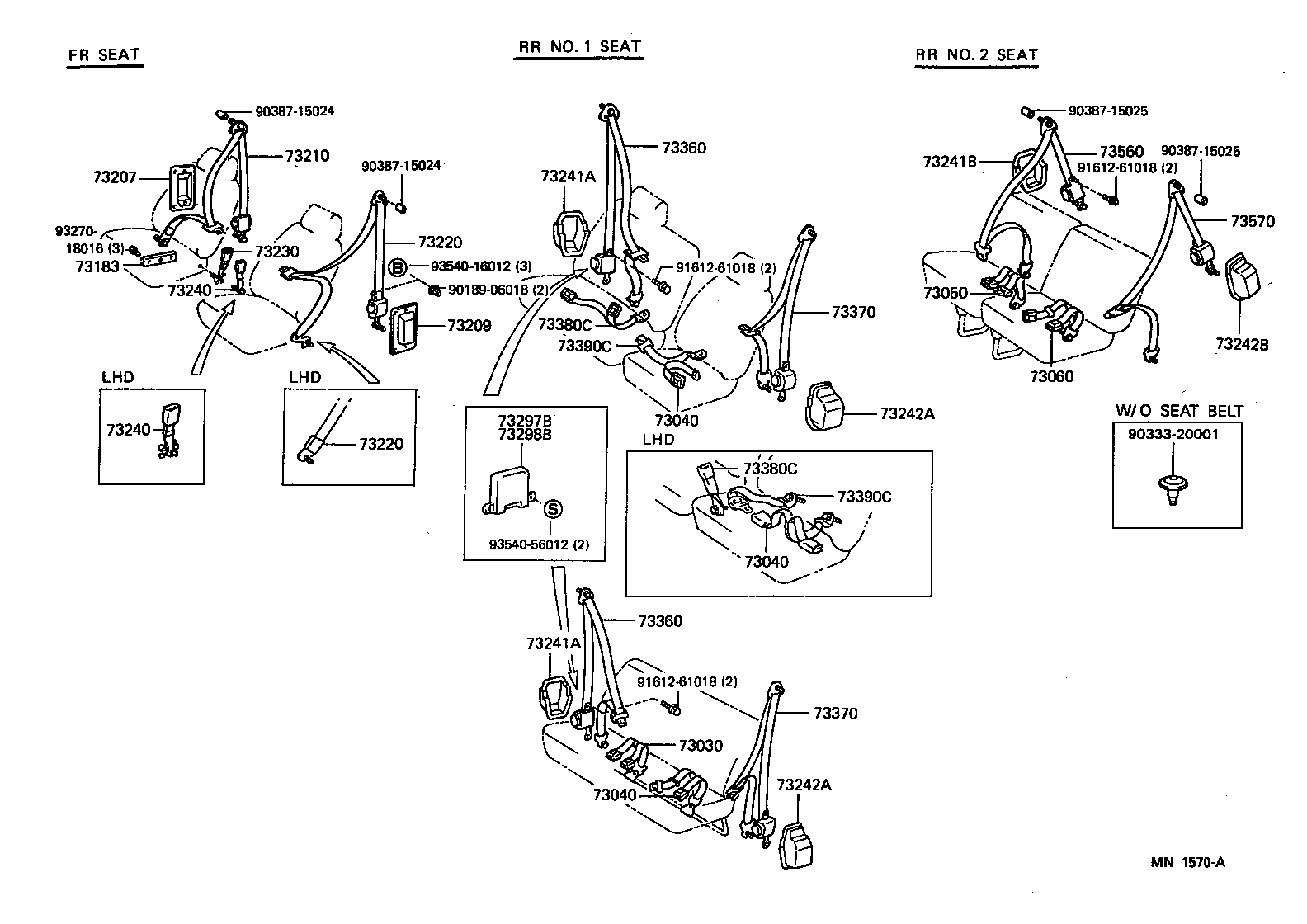

Click highlighted areas on diagram

diagram 73030 73040 73040 73040 73050 73060 73183 73207 73209 73210 73220 73220 73230 73240 73240 73241A 73241A 73241B 73242A 73242A 73242B 73297B 73298B 73360 73360 73370 73370 73380C 73380C 73390C 73390C 73560 73570 9018906018 9033320001 9038715024 9038715024 9038715025 9038715025 9161261018 9161261018 9161261018 9327018016 9354016012 9354056012
Part # Description Qty Price
73183 - GUIDE, FRONT SEAT LAP BELT, INNER
73183-87001

CR2#,KR2#,YR2#..LHD

RH

 1
73183-28010

CR2#,KR2#,YR2#..LHD

LH

 1
73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
73207-28010

CR2#,KR2#,YR2#

 1
73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
73209-28020

CR2#,KR2#,YR2#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-28180B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-28180B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-28180B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-28150B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-28080B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-28080B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#

 1
Common parts
90189-06018
90333-20001
90387-15024
90387-15025
91612-61018
93270-18016
93540-16012
93540-56012
