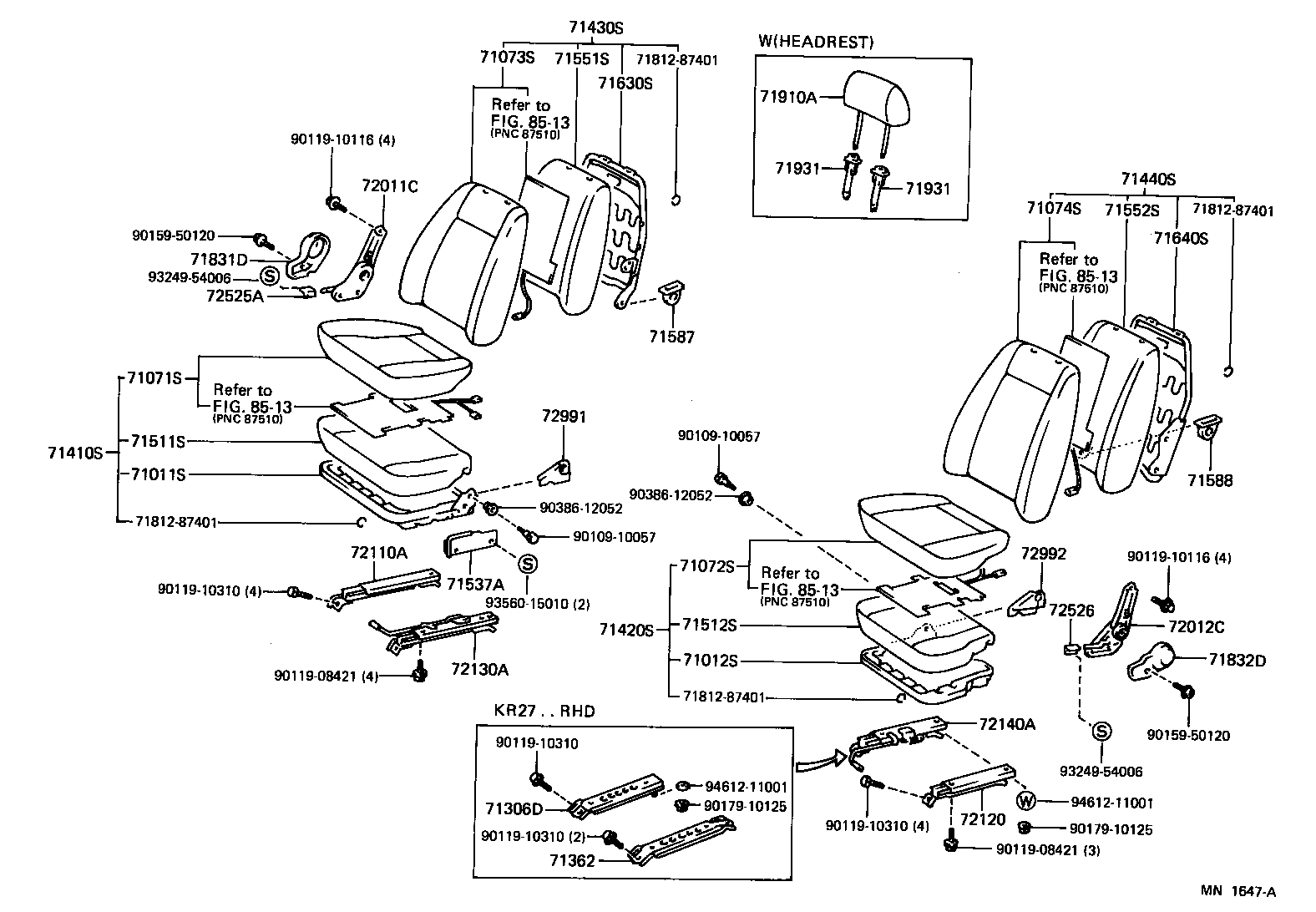

Toyota Liteace van wagon CR27 SEAT & SEAT TRACK

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-87018	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
71011-28110	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST)	01/1992 - 01/1995	1
71011-87018	CR27..LHD..4D..02S AUSTRIA SPEC & W(SEPARATE TYPE HEADREST) OR W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST)	01/1992 - 01/1995	1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-28110	CR2#,KR2#,YR2#..LHD	01/1992 - 01/1995	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-28270B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71071-28250B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71071-28220B0	CR27..LHD..02S AUSTRIA SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71071-28620B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71071-28610B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71071-28220B0	CR27,KR27,YR29 GRAY,TRIM1#	01/1992 - 01/1995	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-28260B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71072-28250B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71072-28210B0	CR27,KR27,YR29 GRAY,TRIM1#	01/1992 - 01/1995	1
71072-28600B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71072-28210B0	CR27..LHD..02S AUSTRIA SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71072-28610B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-28310B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71073-28340B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71073-28270B0	CR27,YR29..LHD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71073-28280B0	CR27,KR27,YR29..LHD GRAY,TRIM1#	01/1992 - 01/1995	1
71073-28540B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71073-28550B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-28320B0	CR27,YR29..LHD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71074-28360B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71074-28330B0	CR27,KR27,YR29..LHD GRAY,TRIM1#	01/1992 - 01/1995	1
71074-28620B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71074-28380B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71074-28610B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-28270B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71410-28550B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71410-28240B0	CR27..LHD..02S AUSTRIA SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71410-28210B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71410-28540B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71410-28240B0	CR27,KR27,YR29 GRAY,TRIM1#	01/1992 - 01/1995	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-28220B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71420-28230B0	CR27,KR27,YR29..LHD GRAY,TRIM1#	01/1992 - 01/1995	1
71420-28230B0	CR27..LHD..02S AUSTRIA SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71420-28520B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71420-28530B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71420-28280B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-28360B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 09/1993	1
71430-28420B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71430-28610B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	09/1993 - 08/1994	1
71430-28760B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71430-28750B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71430-28350B0	CR27,YR29..LHD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71430-28380B0	CR27,KR27,YR29..LHD GRAY,TRIM1#	01/1992 - 01/1995	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-28330B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 09/1993	1
71440-28390B1	CR27,KR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 08/1994	1
71440-28750B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71440-28610B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST);AUSTRIA SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	09/1993 - 08/1994	1
71440-28340B0	CR27,KR27,YR29..LHD GRAY,TRIM1#	01/1992 - 01/1995	1
71440-28320B0	CR27,YR29..LHD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	1
71440-28760B0	CR27..LHD..4D..02S DENMARK SPEC & W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1994 - 01/1995	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-28060	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-28070	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-87001B0	CR2#,KR2#,YR2#..LHD GRAY,TRIM1#,RH	01/1992 - 09/1993	1
71537-87001B0	CR27,KR27,YR29..LHD GRAY,TRIM1#,RH	09/1993 - 08/1994	1
71537-28010B0	CR27,KR27,YR29..LHD GRAY,TRIM1#,LH	09/1993 - 08/1994	1
71537-28010B0	CR2#,YR2#..LHD GRAY,TRIM1#,LH	08/1994 - 01/1995	1
71537-87001B0	CR27..LHD..02S W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	09/1993 - 08/1994	1
71537-87001B0	CR27,YR29..LHD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	01/1992 - 01/1995	2
71537-87001B0	CR2#,YR2#..LHD GRAY,TRIM1#,RH	08/1994 - 01/1995	1
71537-28010B0	CR2#,KR2#,YR2#..LHD GRAY,TRIM1#,LH	01/1992 - 09/1993	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-28080	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-28080	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-28010B0	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-28010B0	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-28110	CR27..LHD..02S W(FABRIC SEAT & HEADREST)	07/1993 - 09/1993	1
71630-28110	CR27,YR29..LHD W(HEADREST)	01/1992 - 07/1993	1
71630-28140	CR27,KR27,YR29..LHD	01/1992 - 07/1993	1
71630-28240	CR27,KR27,YR29..LHD	07/1993 - 01/1995	1
71630-28210	CR27,YR29..LHD W(HEADREST)	07/1993 - 01/1995	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-28330	CR27,KR27,YR29..LHD	07/1993 - 01/1995	1
71640-28100	CR27..LHD..02S W(FABRIC SEAT & HEADREST)	07/1993 - 09/1993	1
71640-28290	CR27,YR29..LHD W(HEADREST)	07/1993 - 01/1995	1
71640-28160	CR27,KR27,YR29..LHD	01/1992 - 07/1993	1
71640-28100	CR27,YR29..LHD W(HEADREST)	01/1992 - 07/1993	1
71831D - COVER, FRONT SEAT HINGE, RH
71831-87003B0	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-87002B0	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
71910A - HEADREST ASSY, FRONT SEAT
71910-28140B0	YR29..05S;CR27..LHD..02S GRAY,TRIM1#	01/1992 - 01/1995	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1002013	YR29..05S;CR27..LHD..02S W/O(LOCK),GRAY,TRIM1#	01/1992 - 01/1995	2
71930-1007013	YR29..05S;CR27..LHD..02S W(LOCK),GRAY,TRIM1#	01/1992 - 01/1995	2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-1002013	YR29..05S;CR27..LHD..02S W/O(LOCK),GRAY,TRIM1#	01/1992 - 01/1995	2
71930-1007013	YR29..05S;CR27..LHD..02S W(LOCK),GRAY,TRIM1#	01/1992 - 01/1995	2
72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH
72010-87003	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH
72020-28060	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-28040	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-28030	KR27..LHD;CR2#,KR21,YR2#	01/1992 - 01/1995	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-28050	CR2#,KR2#,YR2#..LHD	01/1992 - 01/1995	1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-28040	CR2#,KR2#,YR2#..LHD	01/1992 - 01/1995	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-28020B0	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-28020B0	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-28040B1	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
72992 - COVER, FRONT SEAT CUSHION, LH
72992-28010B1	CR2#,KR2#,YR2# GRAY,TRIM1#	01/1992 - 01/1995	1
Common parts
71812-87401
90109-10057
90119-08421
90119-10116
90119-10310
90159-50120
90179-10125
90386-12052
93249-54006
93560-15010
94612-11001
Linked diagrams
8513

Part #	Description	Period	Qty	Price
Common parts
71812-87401
90105-08140
90119-10111
90119-10185
90119-12114
90159-40118
90249-08158
90507-23008
90523-06017
90541-06043
90950-01022
93249-54006
93560-55016

CR27LV-MRSBEW (1992)

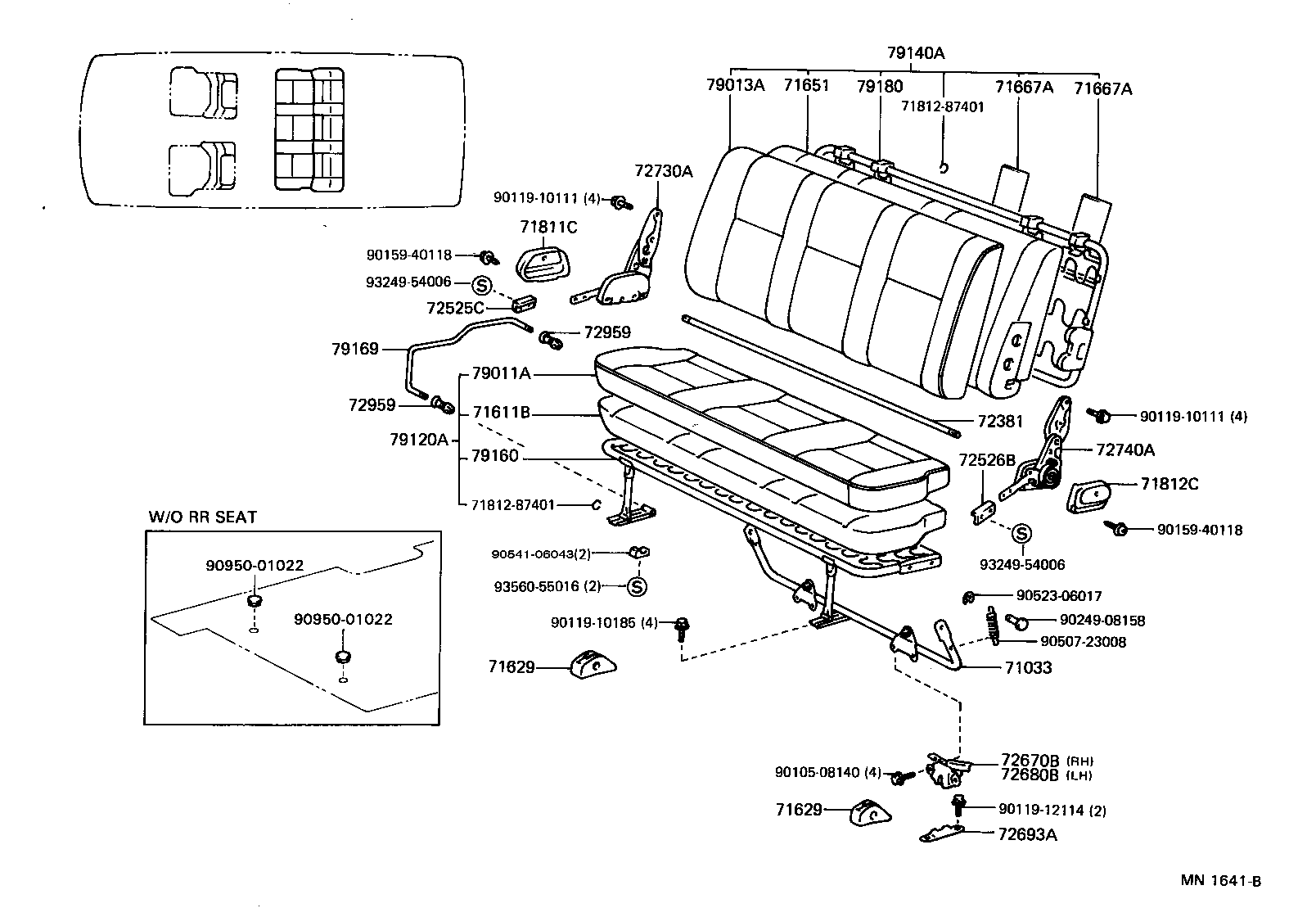

ILLUST NO. 2 OF 3(9201- )CR27,KR27,YR29

ILLUST NO. 1 OF 3(9201- )
