CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

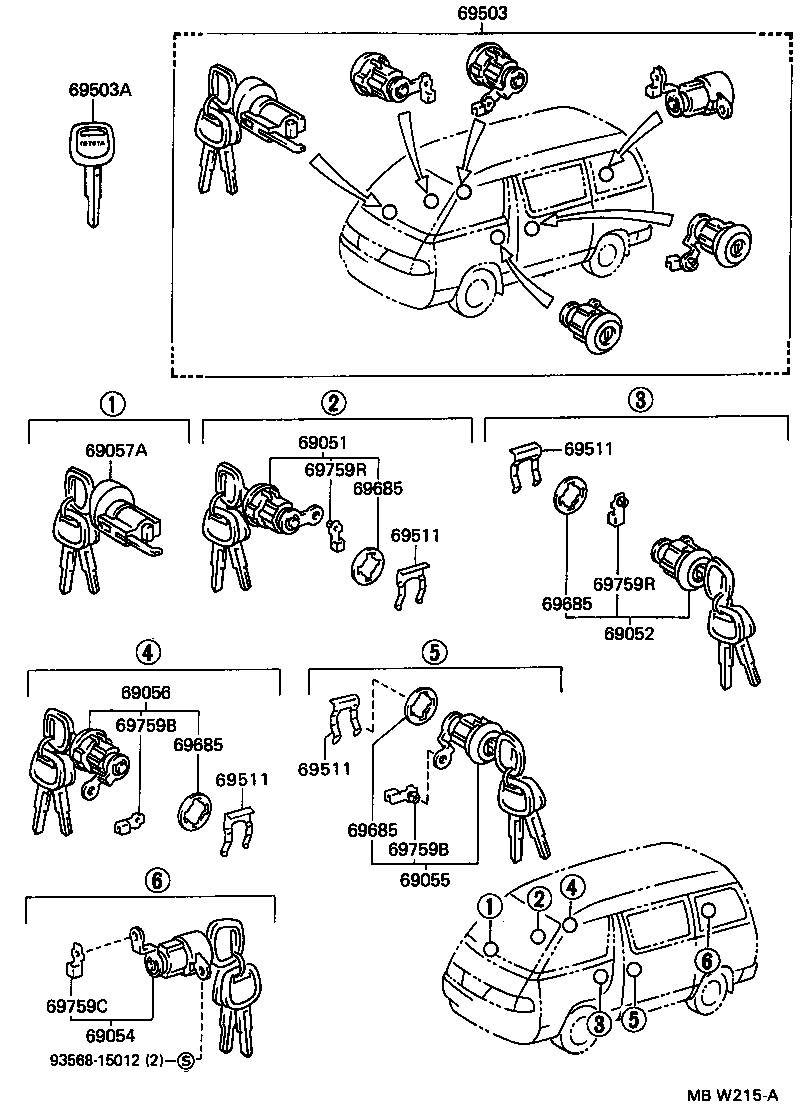

Click highlighted areas on diagram

diagram 69051 69052 69054 69055 69056 69057A 69503 69503A 69511 69511 69511 69511 69685 69685 69685 69685 69759B 69759B 69759C 69759R 69759R 9356815012
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-28040

CR2#,KR2#,YR2#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-28040

CR2#,KR2#,YR2#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-28040

CR2#,KR2#,YR2#

 1
69056 - CYLINDER & KEY SET, REAR DOOR LOCK, RH
69053-28040

CR2#,KR2#,YR2#..LHD

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-28040

CR2#,KR2#,YR2#

 1
69503 - CYLINDER SET, LOCK
69005-28160

CR2#,KR2#,YR2#..LHD..4D

 1
69503A - KEY, BLANK
90999-00144

CR2#,KR2#,YR2#

MASTER KEY

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69512-87001

CR2#,KR2#,YR2#..4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69512-87001

CR2#,KR2#,YR2#..4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69512-87001

CR2#,KR2#,YR2#..4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69512-87001

CR2#,KR2#,YR2#..4D

 3
69685 - PAD, LOCK CYLINDER
69513-87001

CR2#,KR2#,YR2#..4D

 3
69685 - PAD, LOCK CYLINDER
69513-87001

CR2#,KR2#,YR2#..4D

 3
69685 - PAD, LOCK CYLINDER
69513-87001

CR2#,KR2#,YR2#..4D

 3
69685 - PAD, LOCK CYLINDER
69513-87001

CR2#,KR2#,YR2#..4D

 3
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-30040

CR2#,KR2#,YR2#..LHD..4D

 1
69759B - SNAP, REAR DOOR LOCK CYLINDER
69759-30040

CR2#,KR2#,YR2#..LHD..4D

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-30050

CR2#,KR2#,YR2#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30040

CR2#,KR2#,YR2#

BEIGE

 1
69759-30050

CR2#,KR2#,YR2#

YELLOWISH GREEN

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-30040

CR2#,KR2#,YR2#

BEIGE

 1
69759-30050

CR2#,KR2#,YR2#

YELLOWISH GREEN

 1
Common parts
93568-15012
