CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

diagram 67005 67283C 67807 67881A 68131 68291 9033315002 9033315002 9033315002 9054109087 9095001254
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-28600

CR27,KR27,YR29

ROUGH ROAD PACKAGE & W(*RW & *RUM)

 1
67005-28400

CR27,KR27,YR29

 1
67005-28390

CR27,KR27,YR29

W(*RW)

 1
67005-28690

CR27,KR27,YR29

ROUGH ROAD PACKAGE & W(*RUM)

 1
67005-28660

CR27,KR27,YR29

ROUGH ROAD PACKAGE & W(*RW)

 1
67005-28750

CR27,KR27,YR29

ROUGH ROAD PACKAGE

 1
67005-28610

CR27,KR27,YR29

W(*RW & *RUM)

 1
67005-28700

CR27,KR27,YR29

W(*RUM)

 1
67283C - COVER, BACK DOOR STOPPER CUSHION, NO.1
67283-28020

CR2#,KR2#,YR2#

 2
90950-06096

CR2#,KR2#,YR2#

 2
67807 - COVER SUB-ASSY, BACK DOOR SERVICE HOLE
67847-28040

CR27,KR27,YR29

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-28020

CR2#,KR2#,YR2#

 1
68131 - GLASS, BACK DOOR
68105-28110

CR27,YR29

*EHT,T=3.5

 2
68131-28140

CR27,KR27,YR29

*TEM,T=3.5

 1
68105-28040

CR27,KR27,YR29

*EHT,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-28020

CR2#,KR2#,YR2#

 1
Common parts
90333-15002
90541-09087
90950-01254

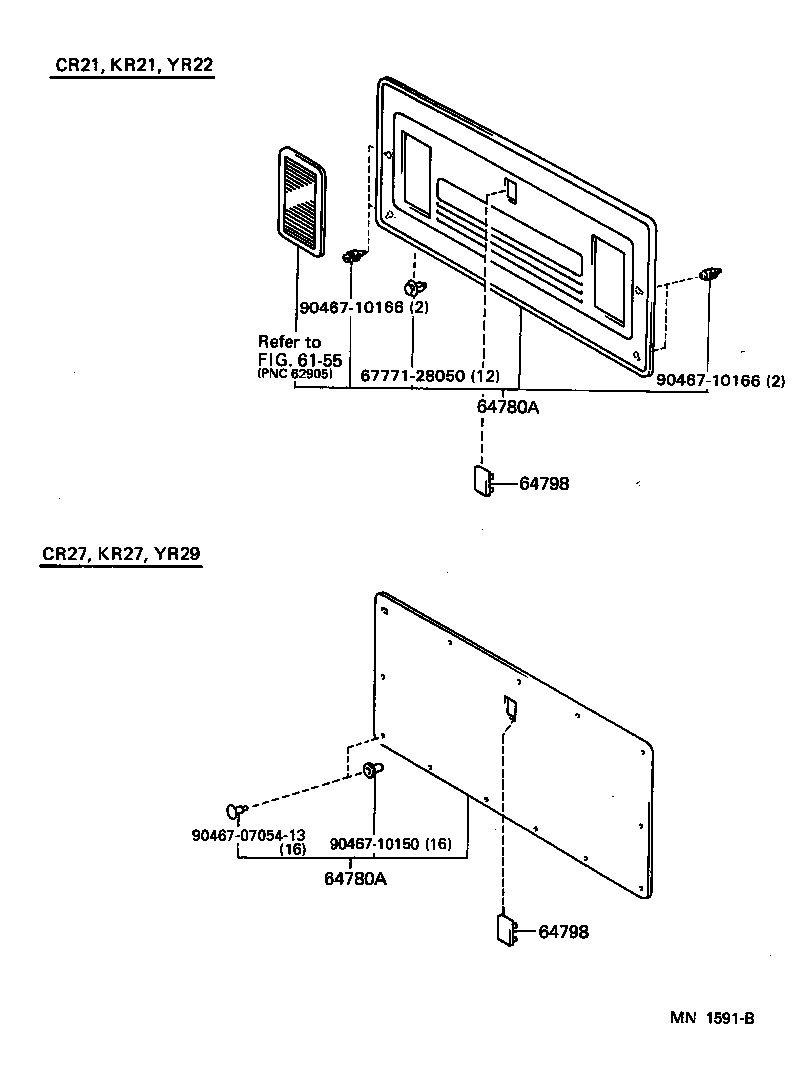

ILLUST NO. 2 OF 2(9201- )

Click highlighted areas on diagram

diagram 6155 64780A 64780A 64798 64798 6777128050 904670705413 9046710150 9046710166 9046710166
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-28070

CR27,KR27,YR29

W(EMERGENCY LEVER)

 1
64780-28060

CR27,KR27,YR29

 1
64780A - PANEL ASSY, BACK DOOR TRIM
64780-28070

CR27,KR27,YR29

W(EMERGENCY LEVER)

 1
64780-28060

CR27,KR27,YR29

 1
64798 - COVER, BACK DOOR LOCK
64798-28020B0

CR27,KR27,YR29

LIGHT GRAY,TRIM1#

 1
64798 - COVER, BACK DOOR LOCK
64798-28020B0

CR27,KR27,YR29

LIGHT GRAY,TRIM1#

 1
Common parts
67771-28050
90467-0705413
90467-10150
90467-10166
Linked diagrams
6155
