CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

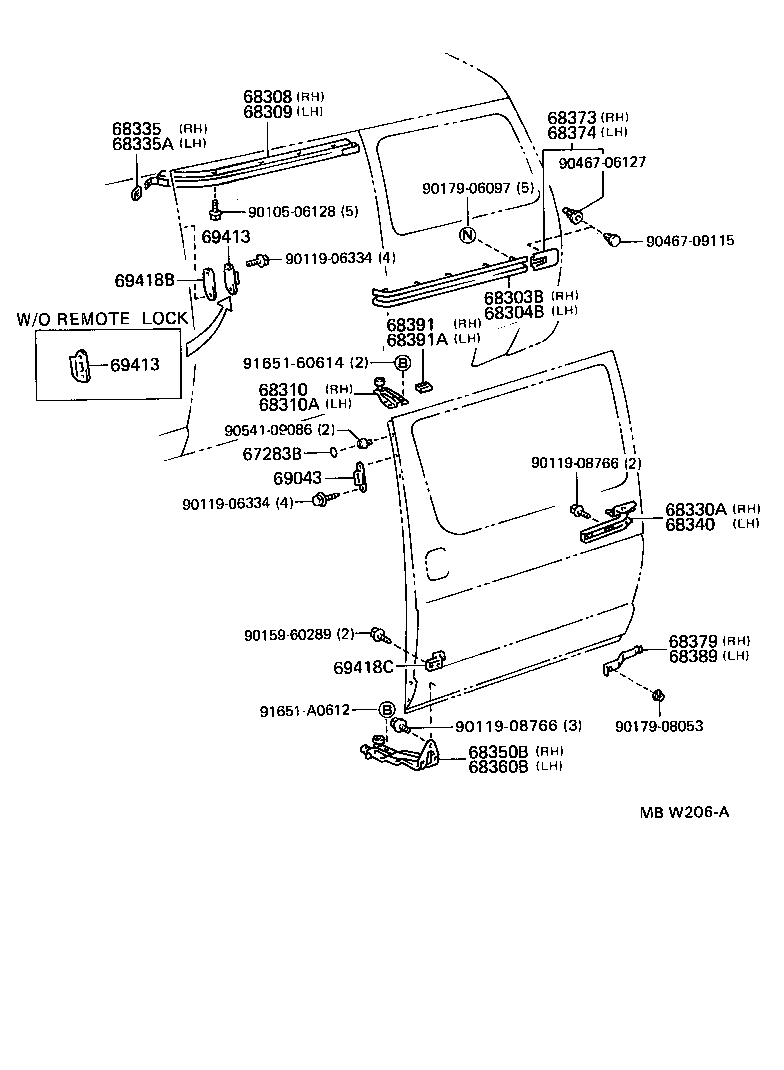

Click highlighted areas on diagram

diagram 67283B 68303B 68304B 68308 68309 68310 68310A 68330A 68335 68335A 68340 68350B 68360B 68373 68374 68379 68389 68391 68391A 69043 69413 69413 69418B 69418C 9010506128 9011906334 9011906334 9011908766 9011908766 9015960289 9017906097 9017908053 9046706127 9046709115 9054109086 9165160614 91651A0612
Part # Description Qty Price
67283B - COVER, SLIDE DOOR STOPPER CUSHION, NO.1
67283-28020

CR2#,KR2#,YR2#..4D

 2
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-28030

CR2#,KR2#,YR2#..LHD

 1
68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68308-28010

CR2#,KR2#,YR2#..LHD

 1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68310-28010

CR2#,KR2#,YR2#..LHD

 1
68330A - ROLLER ASSY, SLIDE
68330-28010

CR2#,KR2#,YR2#..LHD

 1
68335 - PAD, SLIDE DOOR UPPER RAIL
69243-87002

CR2#,KR2#,YR2#..LHD

 1
68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH
68350-28010

CR2#,KR2#,YR2#..LHD

 1
68373 - MOULDING, SLIDE RAIL END, RH
68373-28010

CR2#,KR2#,YR2#..LHD

 1
68379 - SPRING, SLIDE DOOR CATCH, RH
68379-28010

CR2#,KR2#,YR2#..LHD

 1
68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391-28020

CR2#,KR2#,YR2#..LHD

 1
69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69043-95J00

CR2#,KR2#,YR2#..4D

 2
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95J01

CR2#,KR2#,YR2#..4D

UPPER

 1
69416-28010

CR2#,KR2#,YR2#..4D

LOWER

 1
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95J01

CR2#,KR2#,YR2#..4D

UPPER

 1
69416-28010

CR2#,KR2#,YR2#..4D

LOWER

 1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-28010

CR2#,KR2#,YR2#..4D

 1
69418C - STOPPER, BACK DOOR MALE, LOWER
69418-28020

CR2#,KR2#,YR2#..4D

 1
Common parts
90105-06128
90119-06334
90119-08766
90159-60289
90179-06097
90179-08053
90467-06127
90467-09115
90541-09086
91651-60614
91651-A0612
