CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

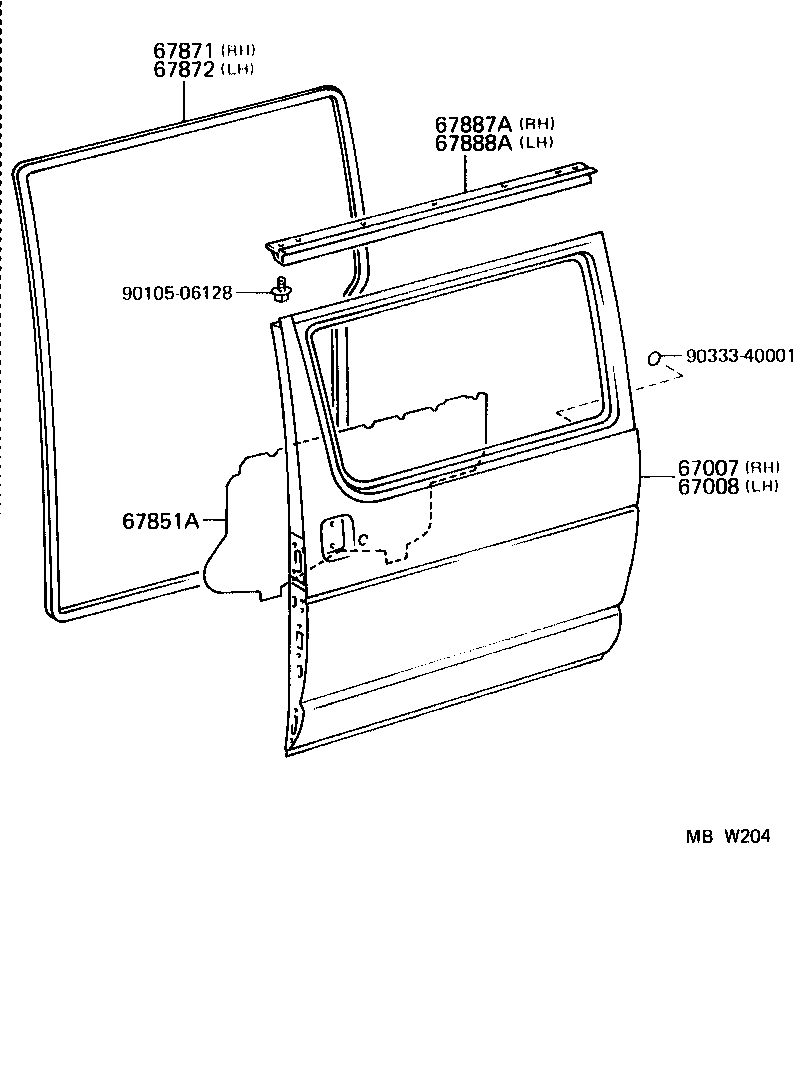

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

diagram 67007 67008 67851A 67871 67872 67887A 67888A 9010506128 9033340001
Part # Description Qty Price
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-28180

CR27,KR27,YR29..LHD..02S

 1
67003-28230

CR27,KR27,YR29..LHD..02S

W(POWER LOCK)

 1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-28010

CR2#,KR2#,YR2#..4D

 1
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-28010

CR2#,KR2#,YR2#..LHD

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-28020

CR2#,KR2#,YR2#..LHD

 1
67887-28010

CR2#,KR2#,YR2#..LHD

 1
Common parts
90105-06128
90333-40001

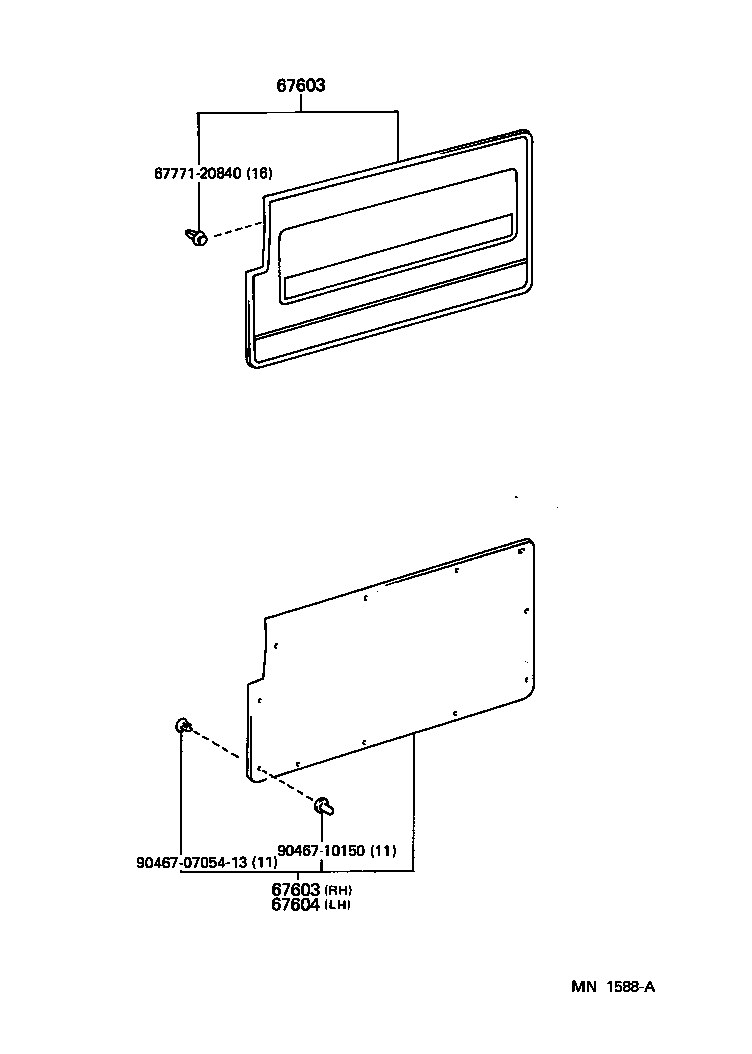

ILLUST NO. 2 OF 2(9201- )CR27,KR27,YR29

Click highlighted areas on diagram

diagram 67603 67603 67604 6777120840 904670705413 9046710150
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-28090

CR27,KR27,YR29..LHD..02S

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-28090

CR27,KR27,YR29..LHD..02S

 1
Common parts
67771-20840
90467-0705413
90467-10150
