CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

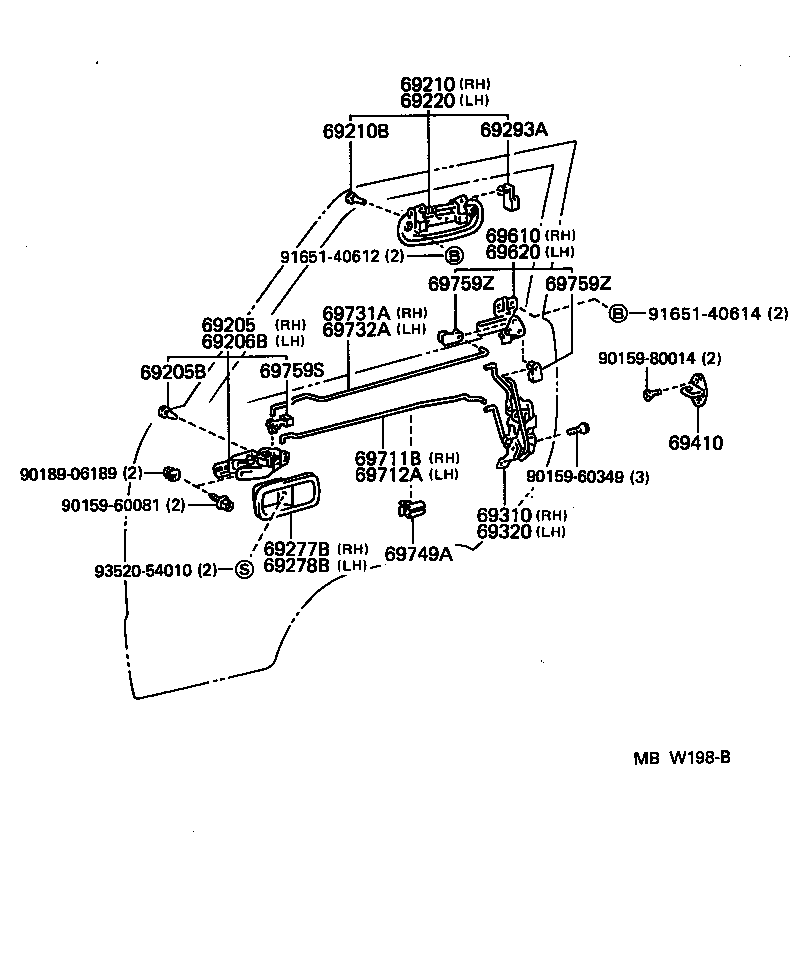

Click highlighted areas on diagram

diagram 69205 69205B 69206B 69210 69210B 69220 69277B 69278B 69293A 69310 69320 69410 69610 69620 69711B 69712A 69731A 69732A 69749A 69759S 69759Z 69759Z 9015960081 9015960349 9015980014 9018906189 9165140612 9165140614 9352054010
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-26010B0

CR2#,KR2#,YR2#

BLUISH GRAY,TRIM1#

 1
69205-95J0003

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04018

CR2#,KR2#,YR2#

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-26010B0

CR2#,KR2#,YR2#

BLUISH GRAY,TRIM1#

 1
69206-95J0003

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-28030

CR2#,KR2#,YR2#

PAINT REQ.

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04018

CR2#,KR2#,YR2#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-28030

CR2#,KR2#,YR2#

LESS COLOR

 1
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69277-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69278-28010B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

CR2#,KR2#,YR2#

YELLOW

 1
69293-12030

CR2#,KR2#,YR2#

WHITE

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-28040

CR2#,KR2#,YR2#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-28040

CR2#,KR2#,YR2#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

CR2#,KR2#,YR2#

 2
69610 - CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, RH
69610-28010

CR2#,KR2#,YR2#

 1
69620 - CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, LH
69620-28010

CR2#,KR2#,YR2#

 1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-28010

CR2#,KR2#,YR2#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-28010

CR2#,KR2#,YR2#

 1
69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69731-28010

CR2#,KR2#,YR2#

 1
69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69732-28010

CR2#,KR2#,YR2#

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-50020

CR2#,KR2#,YR2#

 4
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

CR2#,KR2#,YR2#

PINK

 2
69759-24070

CR2#,KR2#,YR2#

YELLOW

 2
69759Z - SNAP, DOOR LOCK CONTROL LINK
69759-24030

CR2#,KR2#,YR2#

RED

 2
69759-24040

CR2#,KR2#,YR2#

BLACK

 2
69759Z - SNAP, DOOR LOCK CONTROL LINK
69759-24030

CR2#,KR2#,YR2#

RED

 2
69759-24040

CR2#,KR2#,YR2#

BLACK

 2
Common parts
90159-60081
90159-60349
90159-80014
90189-06189
91651-40612
91651-40614
93520-54010
