CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon

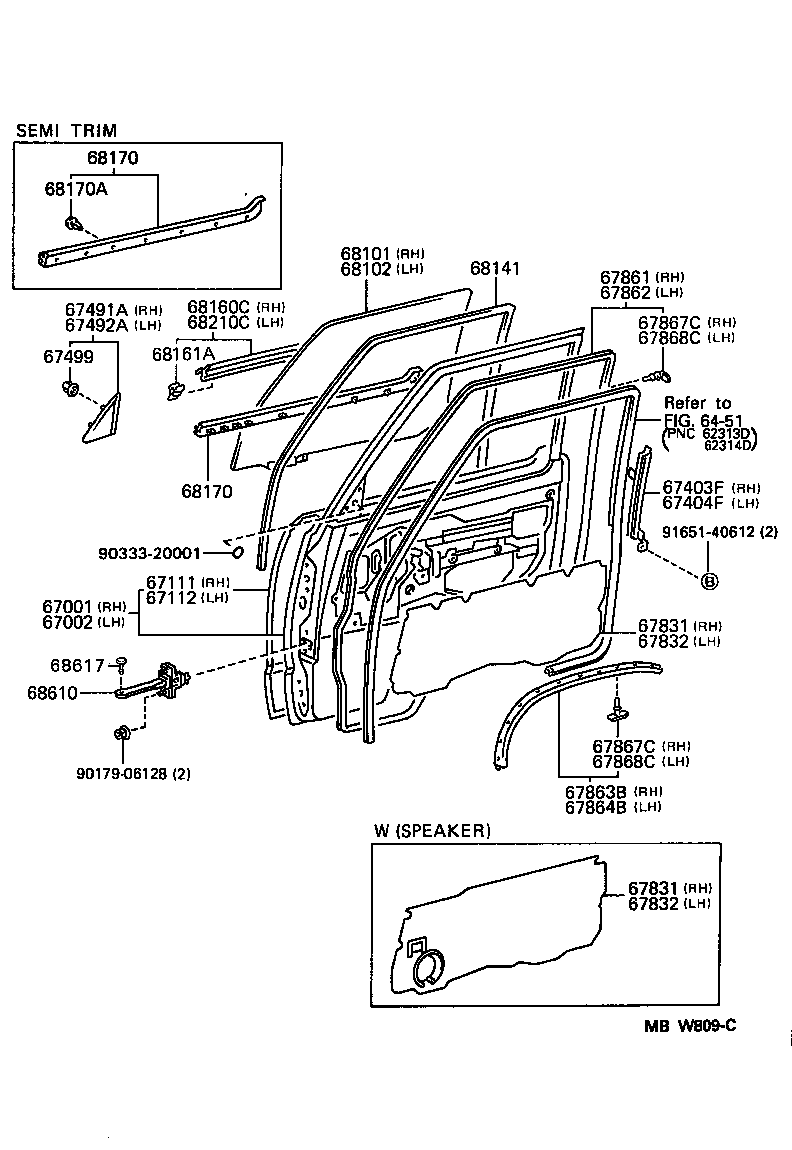

ILLUST NO. 1 OF 2(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-28070 |
CR27,KR27,YR29 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-28090 |
CR27,KR27,YR29 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-12030 |
CR2#,KR2#,YR2# |
4 | ||
| 67499-32010 |
CR2#,KR2#,YR2# |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28110 |
CR2#,KR2#,YR2# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28110 |
CR2#,KR2#,YR2# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-28110 |
CR2#,KR2#,YR2# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-28110 |
CR2#,KR2#,YR2# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-28020 |
CR2#,KR2#,YR2# |
41 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-28020 |
CR2#,KR2#,YR2# |
41 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-28020 |
CR2#,KR2#,YR2# |
41 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-28020 |
CR2#,KR2#,YR2# |
41 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-28010 |
CR2#,KR2#,YR2# *TEM,T=3.5 |
1 | ||
| 68101-28060 |
CR2#,KR2#,YR2# *TEM,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-28010 |
CR2#,KR2#,YR2# *TEM,T=3.5 |
1 | ||
| 68102-28060 |
CR2#,KR2#,YR2# *TEM,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-28040 |
CR2#,KR2#,YR2# |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-87001 |
CR2#,KR2#,YR2# |
14 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-28020 |
CR2#,KR2#,YR2#..LHD RH |
1 | ||
| 68172-28010 |
CR2#,KR2#,YR2#..LHD LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-28020 |
CR2#,KR2#,YR2#..LHD RH |
1 | ||
| 68172-28010 |
CR2#,KR2#,YR2#..LHD LH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 90467-08026 |
CR2#,KR2#,YR2#..LHD |
14 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-28020 |
CR2#,KR2#,YR2# |
2 | ||
| 68620-28020 |
CR2#,KR2#,YR2# LH |
1 | ||
| 68610-28020 |
CR2#,KR2#,YR2# RH |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-12030 |
CR2#,KR2#,YR2# |
2 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90333-20001 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 6451 | ||||

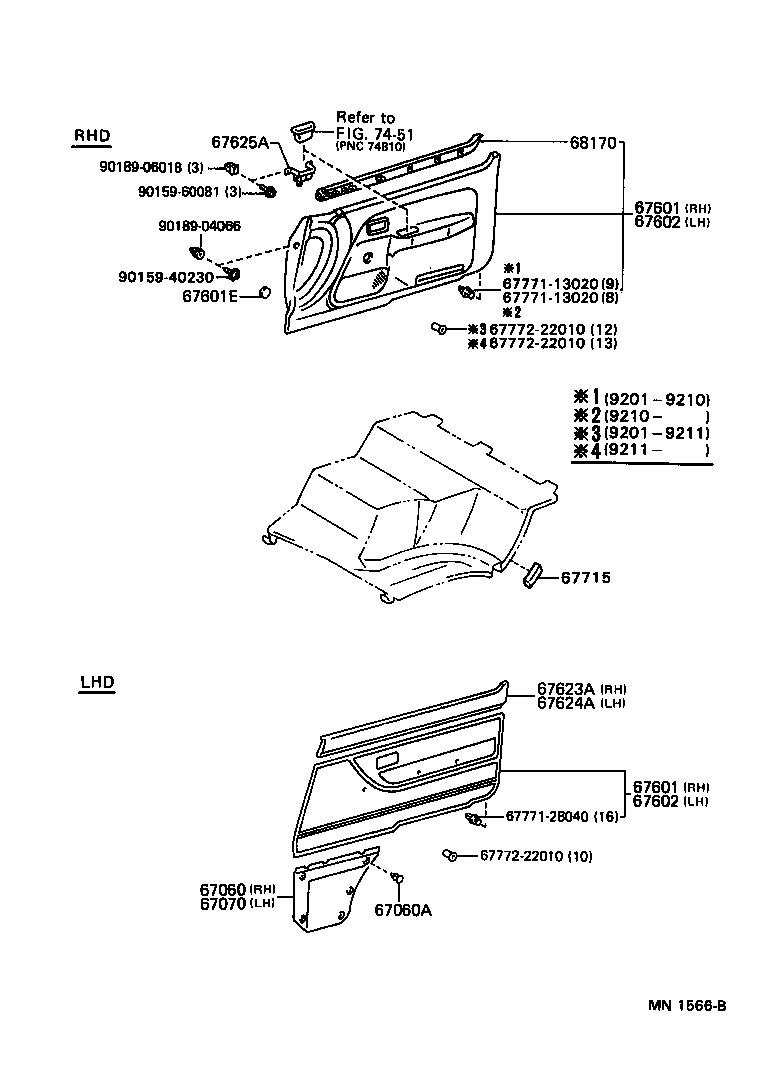

ILLUST NO. 2 OF 2(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-28210B0 |
CR27,KR27,YR29..LHD GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-28210B0 |
CR27,KR27,YR29..LHD GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-28210B0 |
CR27,KR27,YR29..LHD GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-28210B0 |
CR27,KR27,YR29..LHD GRAY,TRIM1# |
1 | ||
| 67623A - BOARD, FRONT DOOR TRIM, UPPER RH | ||||
| 67623-28010B0 |
CR2#,KR2#,YR2#..LHD GRAY,TRIM1# |
1 | ||
| 67624A - BOARD, FRONT DOOR TRIM, UPPER LH | ||||
| 67624-28010B0 |
CR2#,KR2#,YR2#..LHD GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-28020 |
CR2#,KR2#,YR2#..LHD RH |
1 | ||
| 68172-28010 |
CR2#,KR2#,YR2#..LHD LH |
1 | ||
| Common parts | ||||
| 67771-13020 | ||||
| 67771-28040 | ||||
| 67772-22010 | ||||
| 90159-40230 | ||||
| 90159-60081 | ||||
| 90189-04066 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||
