CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )LHD

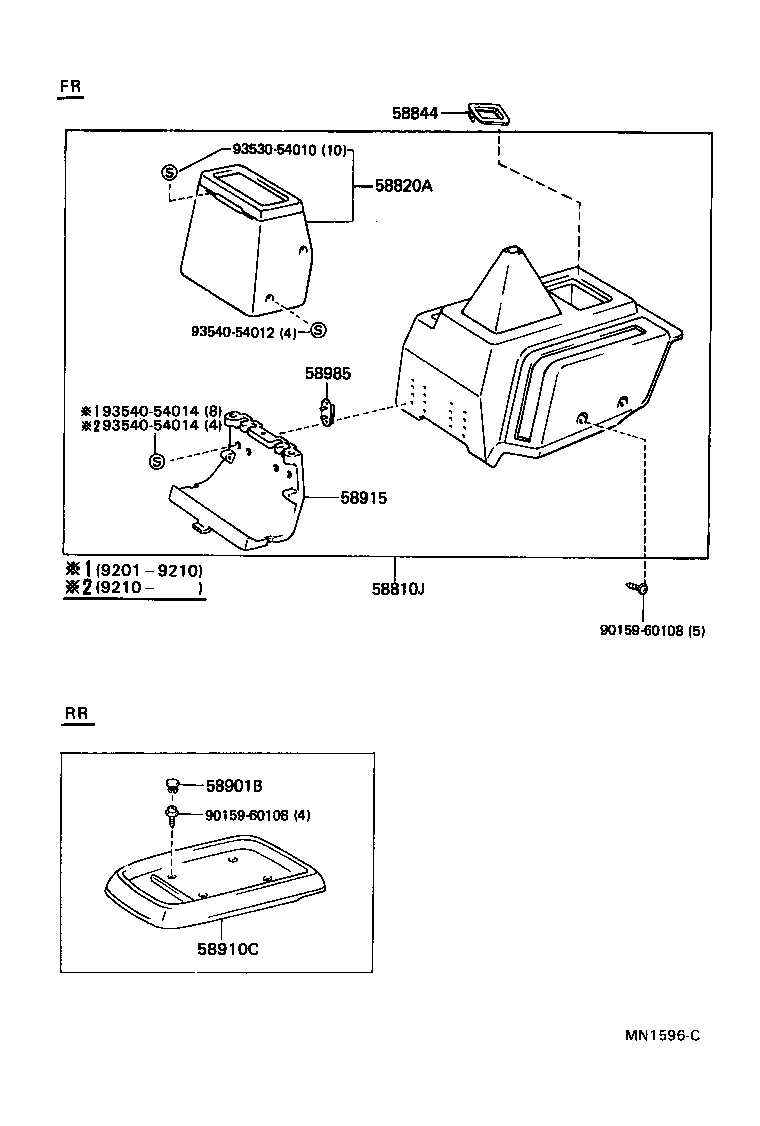

Click highlighted areas on diagram

diagram 58810J 58820A 58844 58901B 58910C 58915 58985 9015960108 9015960108 9353054010 9354054012 9354054014 9354054014
Part # Description Qty Price
58810J - BOX ASSY, CONSOLE
58810-28230B0

CR27,KR27..LHD..4D..02S

DENMARK SPEC,GRAY,TRIM1#

 1
58810-28220B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#

 1
58810-28250B0

CR27,KR27..LHD..4D..02S

DENMARK SPEC & W(CUP HOLDER),GRAY,TRIM1#

 1
58810-28240B0

CR2#,KR2#,YR2#..LHD

W(CUP HOLDER),GRAY,TRIM1#

 1
58820A - BOX ASSY, CONSOLE COMPARTMENT
58820-28010B0

YR29..05S;CR27,KR27..LHD..4D..02S

GRAY,TRIM1#

 1
58844 - BEZEL, CONSOLE BOX
58844-28010B0

CR27,KR27..LHD..4D..02S

DENMARK SPEC,GRAY,TRIM1#

 1
58901B - PLUG, HOLE(FOR REAR CONSOLE BOX)
90950-01541B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 4
58910C - BOX ASSY, CONSOLE, REAR
58911-28030B0

KR27..LHD;CR2#,KR21,YR2#

GRAY,TRIM1#

 1
58911-87001B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
58915 - PANEL, BOX BOTTOM
58915-87001B0

YR29..05S;CR27,KR27..LHD..4D..02S

GRAY,TRIM1#

 1
58985 - RETAINER, CONSOLE BOX
58985-87001

YR29..05S;CR27,KR27..LHD..4D..02S

 2
58985-87001

YR29..05S;CR27,KR27..LHD..4D..02S

 4
Common parts
90159-60108
93530-54010
93540-54012
93540-54014
