CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon

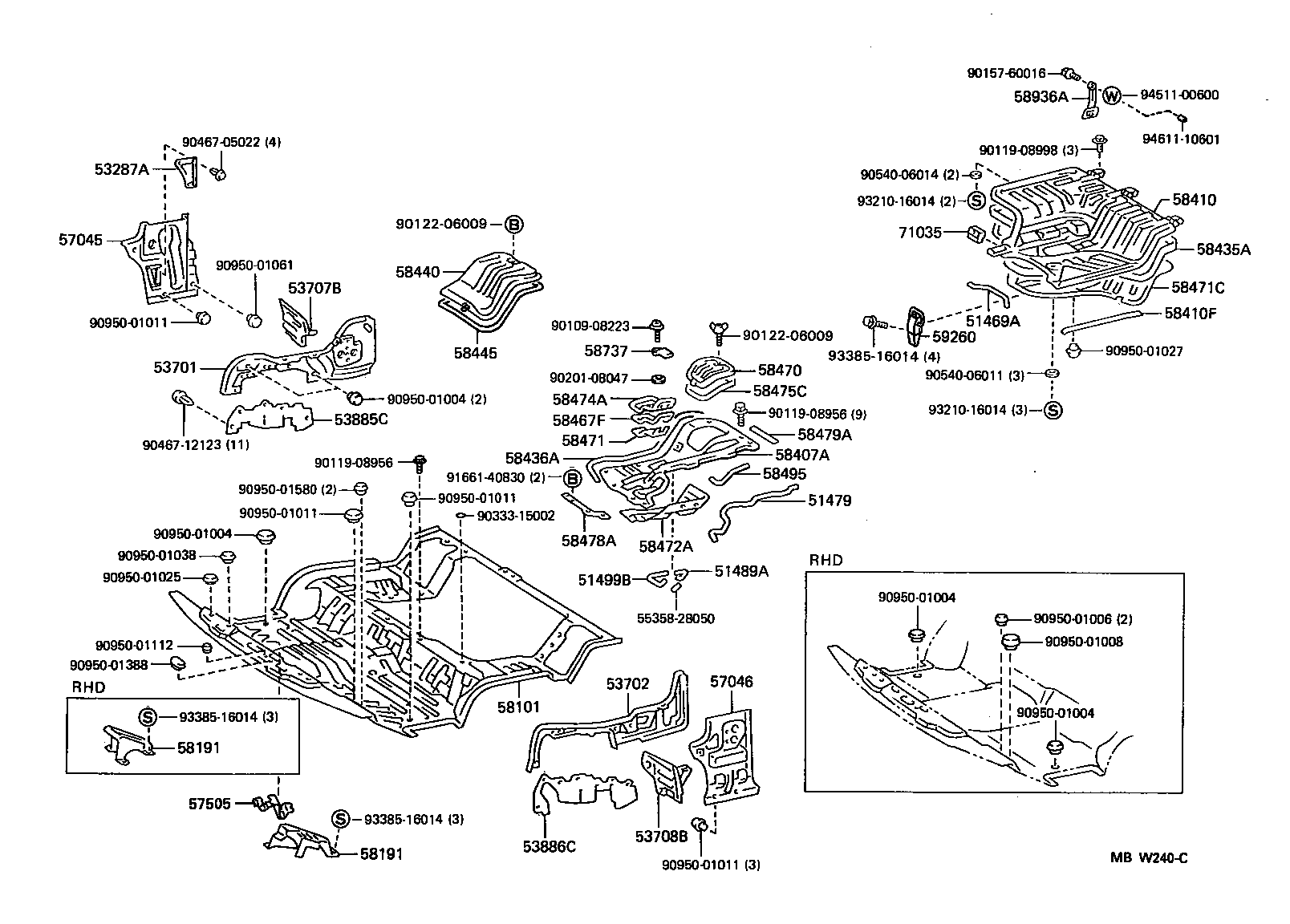

ILLUST NO. 2 OF 2(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51469A - TRIM, ENGINE COVER, NO.1 | ||||
| 51469-87001 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 51469-87001 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 51479 - TRIM, ENGINE COVER, NO.2 | ||||
| 51479-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 51479-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 51489A - TRIM, ENGINE COVER, NO.3 | ||||
| 51489-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 51489-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 51499B - TRIM, ENGINE COVER, NO.4 | ||||
| 51499-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 51499-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 53287A - COVER, COOLER PIPE HOLE | ||||
| 53287-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-28170 |
CR2#,KR2#,YR2# ROUGH ROAD PACKAGE |
1 | ||
| 53701-28120 |
CR2#,YR2# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-28110 |
CR2#,KR2#,YR2# |
1 | ||
| 53702-28120 |
CR2#,KR2#,YR2# ROUGH ROAD PACKAGE |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-28090 |
CR27 COLD SPEC |
1 | ||
| 53707-28080 |
CR27 |
1 | ||
| 53707-28080 |
CR27,YR29 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-28050 |
CR2#,KR2# |
1 | ||
| 53708-28060 |
CR2#,KR2# ROUGH ROAD PACKAGE |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-28060 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 57045-28080 |
CR2#,KR2#,YR2#..LHD ROUGH ROAD PACKAGE |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-28060 |
CR2#,KR2#..LHD..4D |
1 | ||
| 57505 - BRACKET SUB-ASSY, PARKING BRAKE, NO.1 | ||||
| 57505-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-28680 |
CR27..LHD |
1 | ||
| 58101-28860 |
CR27..LHD ROUGH ROAD PACKAGE |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-28150 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 58407-28290 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 58407-28290 |
CR2#..LHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58401-28290 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 58401-28220 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 58410F - TRIM, ENGINE SERVICE HOLE COVER | ||||
| 51499-87001 |
KR27..LHD;CR2#,KR21,YR2# |
1 | ||
| 58435A - PACKING, ENGINE MAIN COVER | ||||
| 58435-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 58436A - PACKING, ENGINE SUB COVER, NO.1 | ||||
| 58436-87001 |
CR2#,YR2# |
1 | ||
| 58436-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 58436-87001 |
CR2#,KR2#,YR22 |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58207-87006 |
CR27 COLD SPEC |
1 | ||
| 58207-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 58445 - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58459-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 58467F - PACKING, INSPECTION HOLE | ||||
| 58475-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 58475-28010 |
CR2# |
1 | ||
| 58475-28010 |
CR2#,KR2#,YR22 |
1 | ||
| 58470 - COVER ASSY, INSPECTION HOLE | ||||
| 58408-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 58471 - COVER, SEAT FLOOR SERVICE HOLE | ||||
| 58471-28060 |
CR2#,KR2#,YR2# |
1 | ||
| 58471-28060 |
CR2# |
1 | ||
| 58471-28060 |
CR2#,KR2#,YR22 |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-28110 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 58471-28010 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 58472A - SILENCER, ENGINE SUB COVER | ||||
| 58472-28070 |
CR2#,KR2#,YR22 |
1 | ||
| 58472-28070 |
CR2#,KR2#,YR2# |
1 | ||
| 58472-28070 |
CR2#,YR2# |
1 | ||
| 58472-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 59209-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 59209-28010 |
CR2# |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 58475-87001 |
CR2#,YR2# |
1 | ||
| 58475-87001 |
CR2#,KR2#,YR22 |
1 | ||
| 58478A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58478-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 58478-87001 |
CR2#,KR2#,YR22 |
1 | ||
| 58478-87001 |
CR2#,YR2# |
1 | ||
| 58479A - PACKING, ENGINE SUB COVER, NO.3 | ||||
| 58479-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 58479-87001 |
CR2#,KR2#,YR22 |
1 | ||
| 58479-87001 |
CR2#,YR2# |
1 | ||
| 58495 - TRIM, INSPECTION HOLE COVER | ||||
| 58495-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 58737 - STOPPER, ENGINE SERVICE HOLE COVER | ||||
| 58737-28020 |
CR2#,KR2#,YR22 |
1 | ||
| 58737-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 58737-28020 |
CR2# |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-87002B0 |
CR27,KR27,YR29 LIGHT GRAY,TRIM1# |
1 | ||
| 59260 - LOCK ASSY, ENGINE COVER | ||||
| 58780-87001 |
CR2#,KR2#,YR2# |
2 | ||
| 71035 - CUSHION SUB-ASSY, SEAT STOPPER | ||||
| 71035-87001 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 55358-28050 | ||||
| 90109-08223 | ||||
| 90119-08956 | ||||
| 90119-08998 | ||||
| 90122-06009 | ||||
| 90157-60016 | ||||
| 90201-08047 | ||||
| 90333-15002 | ||||
| 90467-05022 | ||||
| 90467-12123 | ||||
| 90540-06011 | ||||
| 90540-06014 | ||||
| 90950-01004 | ||||
| 90950-01006 | ||||
| 90950-01008 | ||||
| 90950-01011 | ||||
| 90950-01025 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01061 | ||||
| 90950-01112 | ||||
| 90950-01388 | ||||
| 90950-01580 | ||||
| 91661-40830 | ||||
| 93210-16014 | ||||
| 93385-16014 | ||||
| 94511-00600 | ||||
| 94611-10601 | ||||

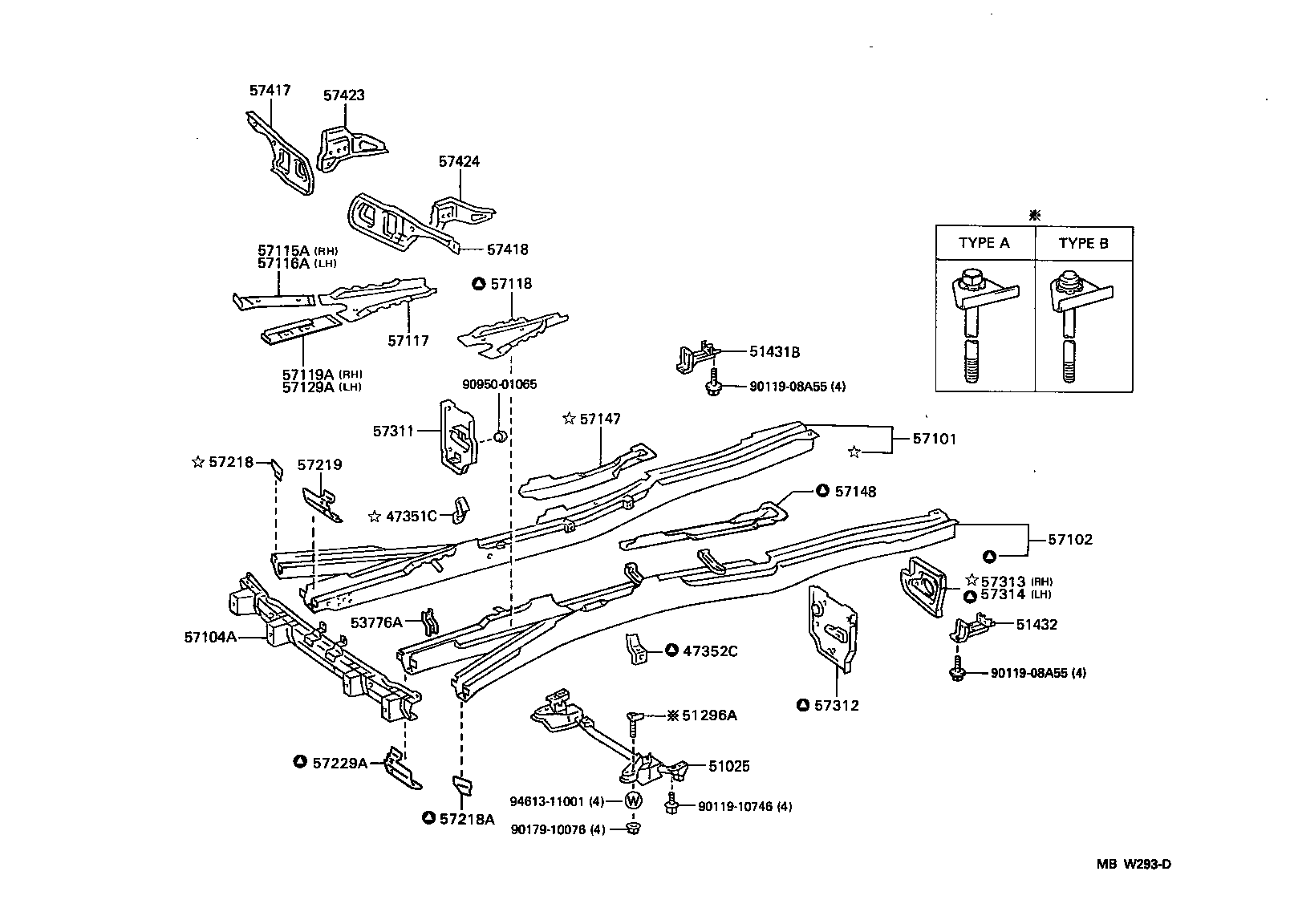

ILLUST NO. 1 OF 2(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47351C - BRACKET, FLEXIBLE HOSE, RH | ||||
| 47351-87003 |
CR27,KR27,YR29 |
1 | ||
| 47352C - BRACKET, FLEXIBLE HOSE, LH | ||||
| 47352-87003 |
CR27,KR27,YR29 |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-28110 |
CR2# |
1 | ||
| 51296A - BOLT, ENGINE FRONT SUPPORT MEMBER | ||||
| 51296-87001 |
CR2#,KR2#,YR2# TYPE A |
2 | ||
| 51296-87002 |
CR2#,KR2#,YR2# TYPE B |
2 | ||
| 51431B - BRACKET, ENGINE REAR MOUNTING | ||||
| 51431-87002 |
CR2#,YR2#;KR27..RHD |
1 | ||
| 51432 - BRACKET, ENGINE REAR MOUNTING, LH | ||||
| 51432-87002 |
CR2#,YR2#;KR27..RHD |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-28908 |
CR2#,KR2#,YR2#..LHD..4D |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-28903 |
KR27..LHD..4D;CR2#,KR21,YR2#..4D |
1 | ||
| 57102-28903 |
CR2#,KR2#,YR2#..4D |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 57104-28040 |
CR2#,YR2# |
2 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-87005 |
CR2#,KR2#,YR2# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-87005 |
CR2#,KR2#,YR2# |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-87003 |
CR2#,KR2#,YR2# |
1 | ||
| 57129A - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57129-87003 |
CR2#,KR2#,YR2# |
1 | ||
| 57147 - PLATE, FRONT SIDE MEMBER, REAR RH | ||||
| 57147-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 57147-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 57148 - PLATE, FRONT SIDE MEMBER, REAR LH | ||||
| 57148-28030 |
CR2#,KR2#,YR2# |
1 | ||
| 57148-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 57218A - GUSSET, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57218-87001 |
CR2#,KR2#,YR2# |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 57229A - GUSSET, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57229-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-28040 |
CR27,KR27,YR29..LHD |
1 | ||
| 57312 - OUTRIGGER, NO.1 LH | ||||
| 57302-28060 |
CR27,KR27,YR29..LHD..4D |
1 | ||
| 57312-28010 |
CR27,KR27,YR29..LHD..4D |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57314-28010 |
CR2#,KR2#,YR2#..LHD..4D |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH | ||||
| 57423-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH | ||||
| 57424-28020 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 90119-08A55 | ||||
| 90119-10746 | ||||
| 90179-10076 | ||||
| 90950-01065 | ||||
| 94613-11001 | ||||
