CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon
Production
Jan 1992
-
Jan 1995
Engine
2C
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )

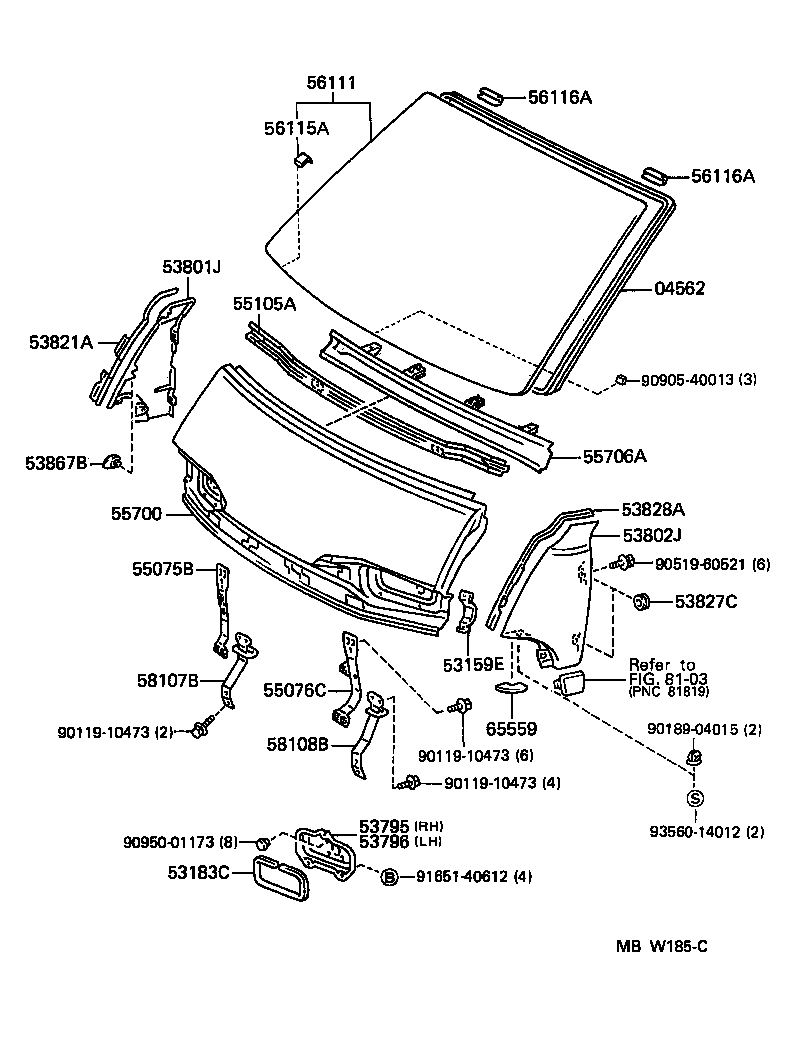

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-28030 |
CR2#,KR2#,YR2# |
1 | ||
| 53159E - PAD, HEADLAMP DOOR | ||||
| 53159-28020 |
CR2#,KR2#,YR2#..LHD COLD AREA PACKAGE |
1 | ||
| 53159-28020 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 53183C - PACKING, HEADLAMP SERVICE HOLE COVER | ||||
| 53183-28040 |
CR2#,KR2#,YR2# |
2 | ||
| 53795 - COVER, HEADLAMP WIRE HARNESS HOLE, RH | ||||
| 53795-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 53796 - COVER, HEADLAMP WIRE HARNESS HOLE, LH | ||||
| 53796-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 53801J - PANEL SUB-ASSY, FRONT SIDE, RH | ||||
| 53813-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 53802J - PANEL SUB-ASSY, FRONT SIDE, LH | ||||
| 53814-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH | ||||
| 53821-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 53827C - PROTECTOR, FRONT SIDE PANEL, NO.4 | ||||
| 53827-28010 |
CR2#,KR2#,YR2# |
4 | ||
| 53828A - PROTECTOR, FRONT SIDE PANEL, NO.3 | ||||
| 53828-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 53867B - RETAINER, FRONT SIDE PANEL | ||||
| 53867-28020 |
CR2#,KR2#,YR2# |
4 | ||
| 55075B - REINFORCEMENT SUB-ASSY, FRONT PANEL, LOWER RH | ||||
| 55075-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 55076C - NET SUB-ASSY, AIR DUCT | ||||
| 55076-28080 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 55105A - MEMBER SUB-ASSY, FRONT PANEL | ||||
| 55105-28060 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55701-28250 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER | ||||
| 55706-28040 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-28100 |
CR2#,KR2#,YR2# *LAM,T=5.3 |
1 | ||
| 56111-28220 |
CR2#,YR2# *LAM,T=5.3 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-28010 |
CR2#,KR2#,YR2# |
2 | ||
| 56116A - SPACER, WINDSHIELD GLASS | ||||
| 56116-28020 |
CR2#,KR2#,YR2# |
2 | ||
| 56116A - SPACER, WINDSHIELD GLASS | ||||
| 56116-28020 |
CR2#,KR2#,YR2# |
2 | ||
| 58107B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH | ||||
| 58107-28030 |
CR2#,KR2#,YR2# |
1 | ||
| 58108B - REINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-28050 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 65559 - PAD, SIDE PANEL REAR END POST | ||||
| 65559-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 65559-28010 |
CR2#,KR2#,YR2# COLD AREA PACKAGE |
1 | ||
| Common parts | ||||
| 90119-10473 | ||||
| 90189-04015 | ||||
| 90519-60521 | ||||
| 90905-40013 | ||||
| 90950-01173 | ||||
| 91651-40612 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 8103 | ||||
