CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

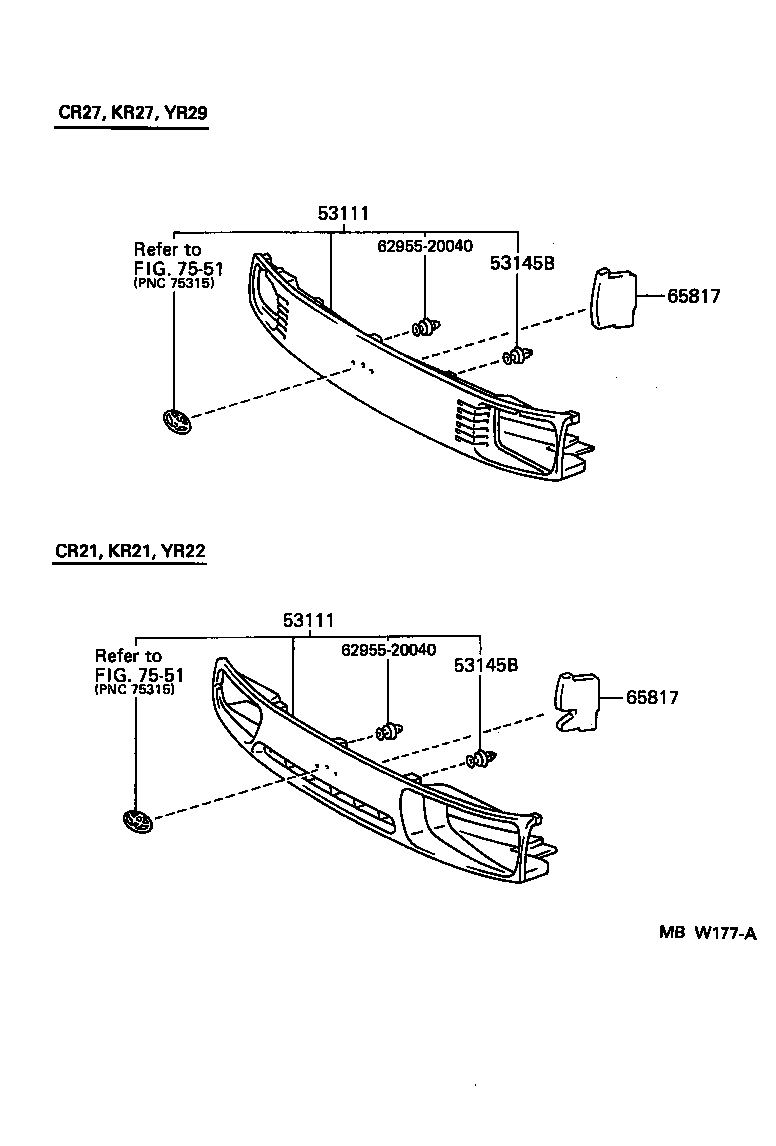

Click highlighted areas on diagram

diagram 53111 53111 53145B 53145B 6295520040 6295520040 65817 65817 7551 7551
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-28040

CR27,KR27,YR29

 1
53100-28070

CR27,YR29

 1
53111 - GRILLE, RADIATOR
53100-28040

CR27,KR27,YR29

 1
53100-28070

CR27,YR29

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-28010

CR2#,KR2#,YR2#

 9
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-28010

CR2#,KR2#,YR2#

 9
65817 - PAD, COVER TOP PANEL END
65817-28030

CR27,KR27,YR29

 1
65817 - PAD, COVER TOP PANEL END
65817-28030

CR27,KR27,YR29

 1
Common parts
62955-20040
Linked diagrams
7551
