CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

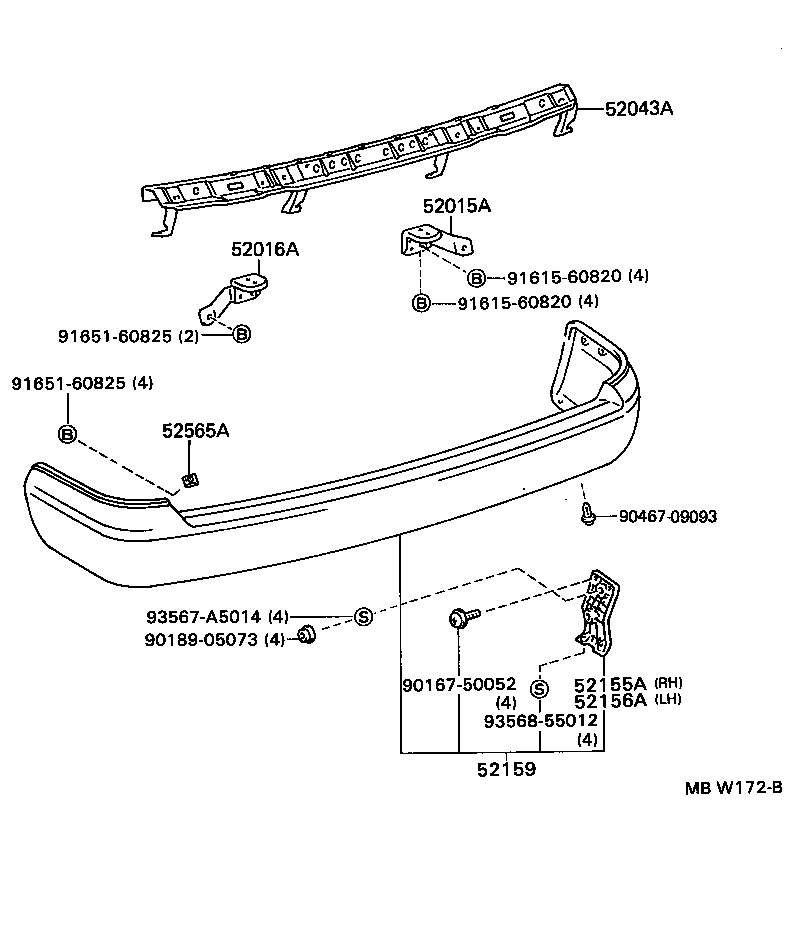

Click highlighted areas on diagram

diagram 52015A 52016A 52043A 52155A 52156A 52159 52565A 9016750052 9018905073 9046709093 9161560820 9161560820 9165160825 9165160825 93567A5014 9356855012
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-28030

CR2#,KR2#,YR2#

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52175-28050

CR27,KR27,YR29

 1
52043A - REINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2
52043-28010

CR2#,KR2#,YR2#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-28040

CR2#,KR2#,YR2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-28020

CR2#,KR2#,YR2#

 1
52159 - COVER, REAR BUMPER
52105-28020

CR2#,KR2#,YR2#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-12040

CR2#,KR2#,YR2#

 4
Common parts
90167-50052
90189-05073
90467-09093
91615-60820
91651-60825
93567-A5014
93568-55012
