CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon
Production
Jan 1992
-
Jan 1995
Engine
2C
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )

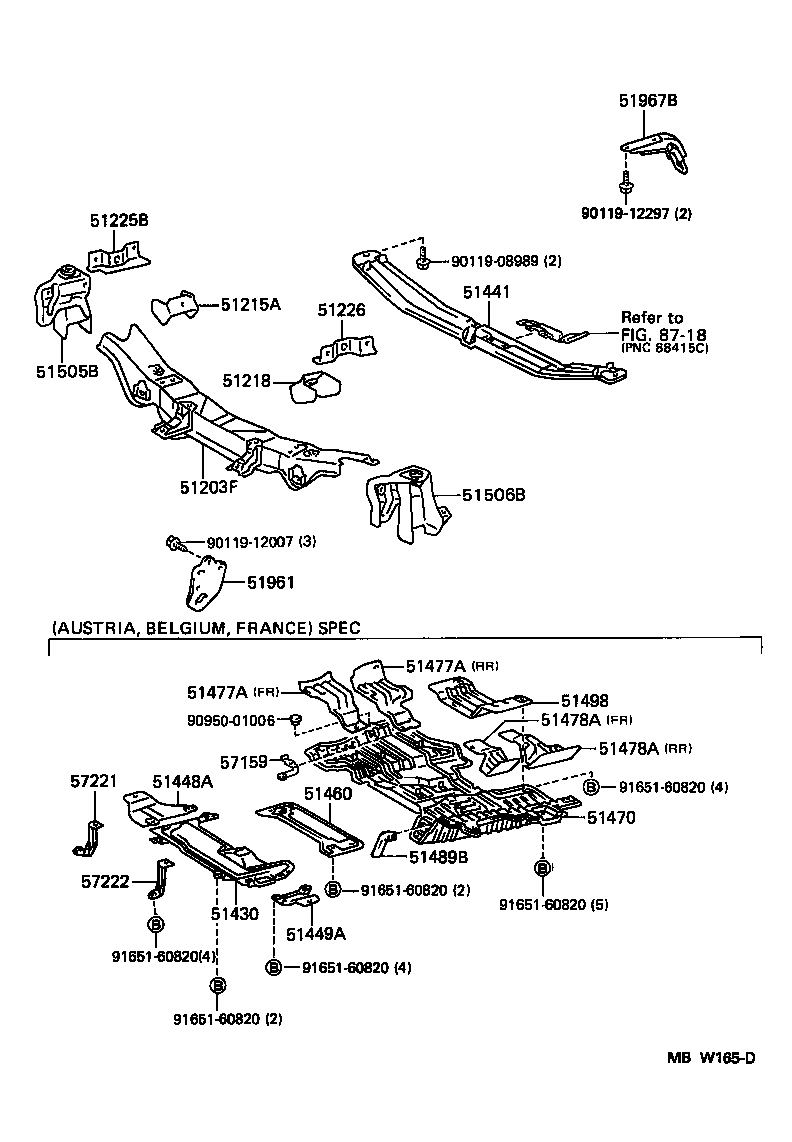

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-28240 |
CR2#,YR2#..LHD W(POWER STEERING) & ROUGH ROAD PACKAGE |
1 | ||
| 51203-28230 |
CR2#,KR2#,YR2#..LHD ROUGH ROAD PACKAGE |
1 | ||
| 51203-28190 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 51203-28240 |
CR2#,YR2#..LHD W(POWER STEERING) |
1 | ||
| 51203-28200 |
CR2#,YR2#..LHD W(POWER STEERING) |
1 | ||
| 51203-28230 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51215-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 51215-87007 |
CR2#,KR2#,YR2# |
1 | ||
| 51218 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 51218-28020 |
CR2#,KR2#,YR2# |
1 | ||
| 51218-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 51225B - BRACKET, FRONT SUSPENSION MEMBER, RH | ||||
| 51225-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 51226 - BRACKET, FRONT SUSPENSION MEMBER, LH | ||||
| 51226-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-87002 |
CR2#,KR2#,YR2# |
1 | ||
| 51505B - SUPPORT SUB-ASSY, UPPER CONTROL ARM, RH | ||||
| 51505-28050 |
CR2#,KR2#,YR2# |
1 | ||
| 51506B - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH | ||||
| 51506-28050 |
CR2#,KR2#,YR2# |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51980-28020 |
CR2# LH |
1 | ||
| 51963-87006 |
CR2# RH |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51095-28020 |
CR27,KR27,YR29 |
1 | ||
| Common parts | ||||
| 90119-08989 | ||||
| 90119-12007 | ||||
| 90119-12297 | ||||
| 90950-01006 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 8718 | ||||
