CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon

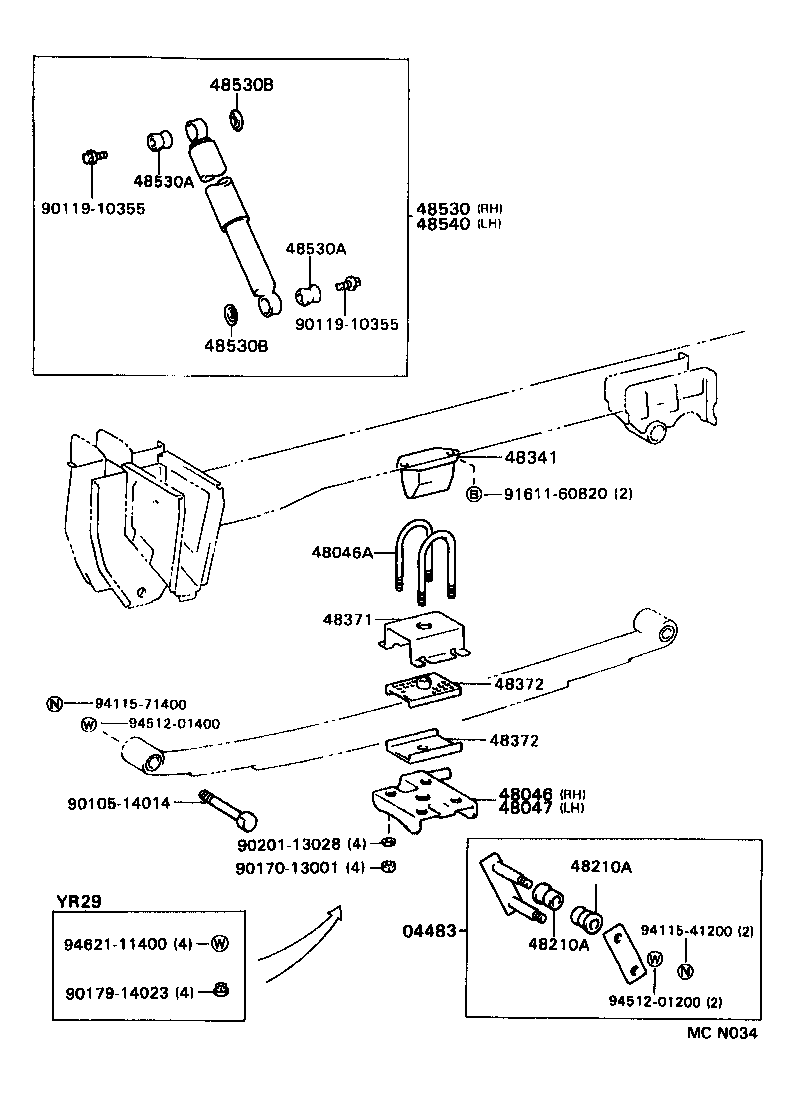

ILLUST NO. 1 OF 2(9201- )CR27,KR27,YR29
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-27021 |
CR27,KR27,YR29 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-28030 |
CR27,KR27 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-13017 |
CR27 L=164 |
4 | ||
| 90117-13018 |
CR27,KR27 L=156.5 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-28020 |
CR27,KR27 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
CR27,KR27,YR29 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
CR27,KR27,YR29 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-35020 |
CR27,KR27,YR29 |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-28090 |
CR27,KR27 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-28010 |
CR27,KR27,YR29 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-28010 |
CR27,KR27,YR29 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80129 |
CR27,KR27,YR29 MARK 48531-28081 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
CR27,KR27,YR29 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
CR27,KR27,YR29 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CR27,KR27,YR29 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CR27,KR27,YR29 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80129 |
CR27,KR27,YR29 MARK 48531-28081 |
1 | ||
| Common parts | ||||
| 90105-14014 | ||||
| 90119-10355 | ||||
| 90170-13001 | ||||
| 90179-14023 | ||||
| 90201-13028 | ||||
| 91611-60820 | ||||
| 94115-41200 | ||||
| 94115-71400 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94621-11400 | ||||

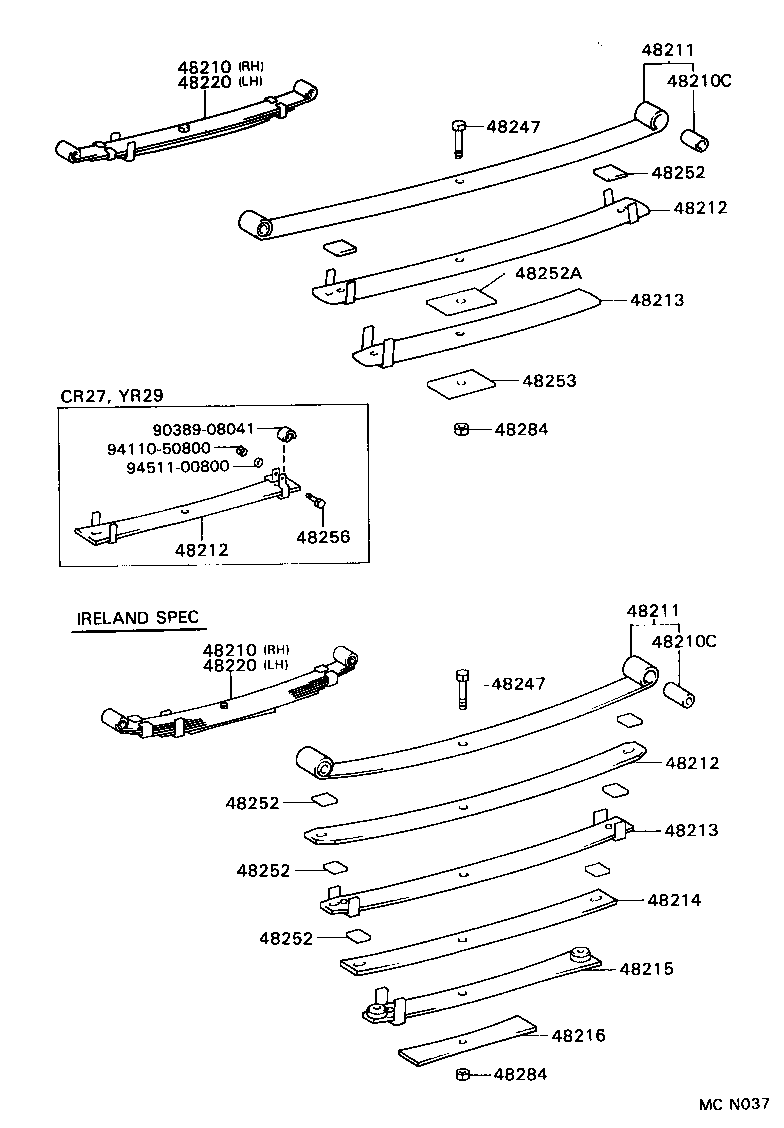

ILLUST NO. 2 OF 2(9201-9408)CR27,KR27,YR29
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-28190 |
CR27,YR29 3-LEAF |
1 | ||
| 48210-28211 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48210-28112 |
CR27,YR29 4-LEAF |
1 | ||
| 48210-28191 |
CR27,YR29 3-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-28190 |
CR27,YR29 3-LEAF |
1 | ||
| 48210-28211 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48210-28112 |
CR27,YR29 4-LEAF |
1 | ||
| 48210-28191 |
CR27,YR29 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
CR27,KR27,YR29 |
4 | ||
| 90389-14004 |
CR27,KR27,YR29 RR |
2 | ||
| 90389-14037 |
CR27,KR27,YR29 FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
CR27,KR27,YR29 |
4 | ||
| 90389-14004 |
CR27,KR27,YR29 RR |
2 | ||
| 90389-14037 |
CR27,KR27,YR29 FR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-28190 |
CR27,KR27,YR29 |
2 | ||
| 48201-28191 |
CR27,KR27,YR29 |
2 | ||
| 48201-28112 |
CR27,YR29 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-28190 |
CR27,KR27,YR29 |
2 | ||
| 48201-28191 |
CR27,KR27,YR29 |
2 | ||
| 48201-28112 |
CR27,YR29 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-28210 |
CR27,KR27,YR29 |
2 | ||
| 48202-28190 |
CR27,YR29 |
2 | ||
| 48202-28111 |
CR27,YR29 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-28210 |
CR27,KR27,YR29 |
2 | ||
| 48202-28190 |
CR27,YR29 |
2 | ||
| 48202-28111 |
CR27,YR29 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-28210 |
CR27,KR27,YR29 |
2 | ||
| 48202-28190 |
CR27,YR29 |
2 | ||
| 48202-28111 |
CR27,YR29 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-28190 |
CR27,KR27,YR29 RH |
1 | ||
| 48204-28111 |
CR27,YR29 LH |
1 | ||
| 48203-28111 |
CR27,YR29 RH |
1 | ||
| 48204-28190 |
CR27,KR27,YR29 LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-28190 |
CR27,KR27,YR29 RH |
1 | ||
| 48204-28111 |
CR27,YR29 LH |
1 | ||
| 48203-28111 |
CR27,YR29 RH |
1 | ||
| 48204-28190 |
CR27,KR27,YR29 LH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-28111 |
CR27,YR29 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-28151 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28171 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48220-28150 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28072 |
CR27,YR29 4-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-28151 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28171 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48220-28150 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28072 |
CR27,YR29 4-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
CR27,KR27,YR29 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
CR27,KR27,YR29 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
CR27,KR27,YR29 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26690 |
CR27,KR27,YR29 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
CR27,YR29 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
CR27,KR27,YR29 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
CR27,KR27,YR29 |
2 | ||
| Common parts | ||||
| 90389-08041 | ||||
| 94110-50800 | ||||
| 94511-00800 | ||||

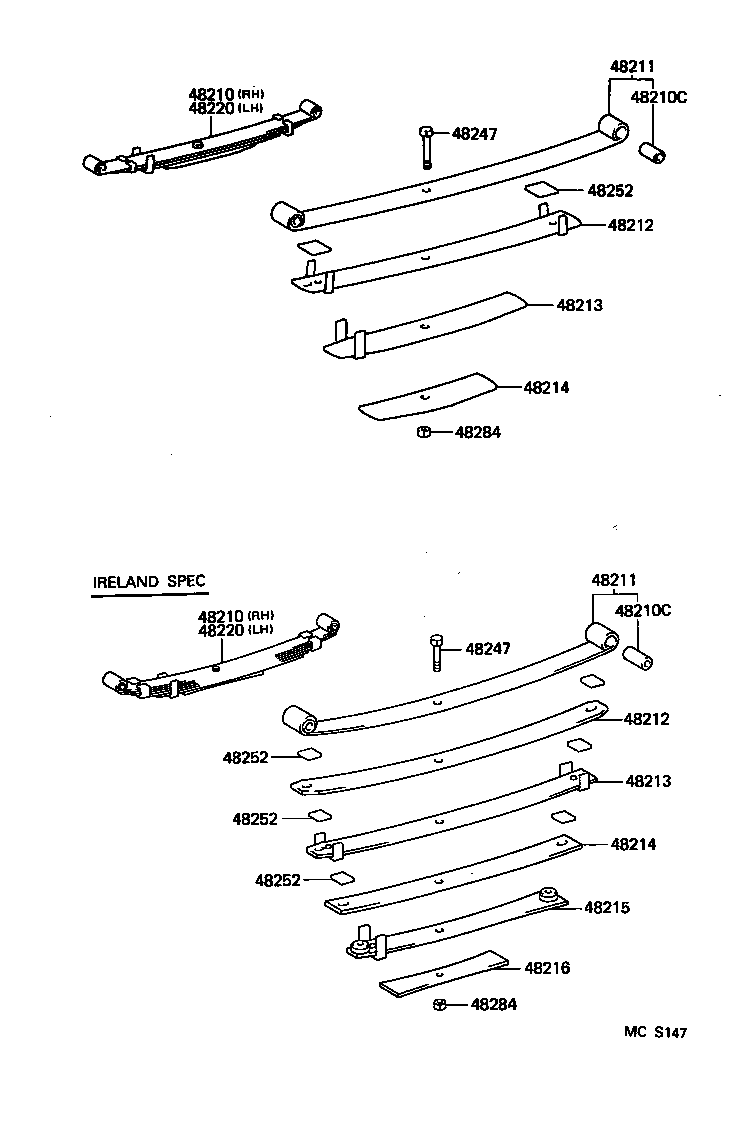

(9408- )CR27,YR29
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-28190 |
CR27,YR29 3-LEAF |
1 | ||
| 48210-28211 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48210-28112 |
CR27,YR29 4-LEAF |
1 | ||
| 48210-28191 |
CR27,YR29 3-LEAF |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-28190 |
CR27,YR29 3-LEAF |
1 | ||
| 48210-28211 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48210-28112 |
CR27,YR29 4-LEAF |
1 | ||
| 48210-28191 |
CR27,YR29 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
CR27,KR27,YR29 |
4 | ||
| 90389-14004 |
CR27,KR27,YR29 RR |
2 | ||
| 90389-14037 |
CR27,KR27,YR29 FR |
2 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
CR27,KR27,YR29 |
4 | ||
| 90389-14004 |
CR27,KR27,YR29 RR |
2 | ||
| 90389-14037 |
CR27,KR27,YR29 FR |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-28190 |
CR27,KR27,YR29 |
2 | ||
| 48201-28191 |
CR27,KR27,YR29 |
2 | ||
| 48201-28112 |
CR27,YR29 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-28190 |
CR27,KR27,YR29 |
2 | ||
| 48201-28191 |
CR27,KR27,YR29 |
2 | ||
| 48201-28112 |
CR27,YR29 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-28210 |
CR27,KR27,YR29 |
2 | ||
| 48202-28190 |
CR27,YR29 |
2 | ||
| 48202-28111 |
CR27,YR29 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-28210 |
CR27,KR27,YR29 |
2 | ||
| 48202-28190 |
CR27,YR29 |
2 | ||
| 48202-28111 |
CR27,YR29 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-28190 |
CR27,KR27,YR29 RH |
1 | ||
| 48204-28111 |
CR27,YR29 LH |
1 | ||
| 48203-28111 |
CR27,YR29 RH |
1 | ||
| 48204-28190 |
CR27,KR27,YR29 LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-28190 |
CR27,KR27,YR29 RH |
1 | ||
| 48204-28111 |
CR27,YR29 LH |
1 | ||
| 48203-28111 |
CR27,YR29 RH |
1 | ||
| 48204-28190 |
CR27,KR27,YR29 LH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-28111 |
CR27,YR29 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-28111 |
CR27,YR29 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-28151 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28171 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48220-28150 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28072 |
CR27,YR29 4-LEAF |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-28151 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28171 |
CR27,KR27,YR29 3-LEAF |
1 | ||
| 48220-28150 |
CR27,YR29 3-LEAF |
1 | ||
| 48220-28072 |
CR27,YR29 4-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
CR27,KR27,YR29 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48147-36051 |
CR27,KR27,YR29 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CR27,KR27,YR29 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
CR27,KR27,YR29 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
CR27,KR27,YR29 |
2 | ||
