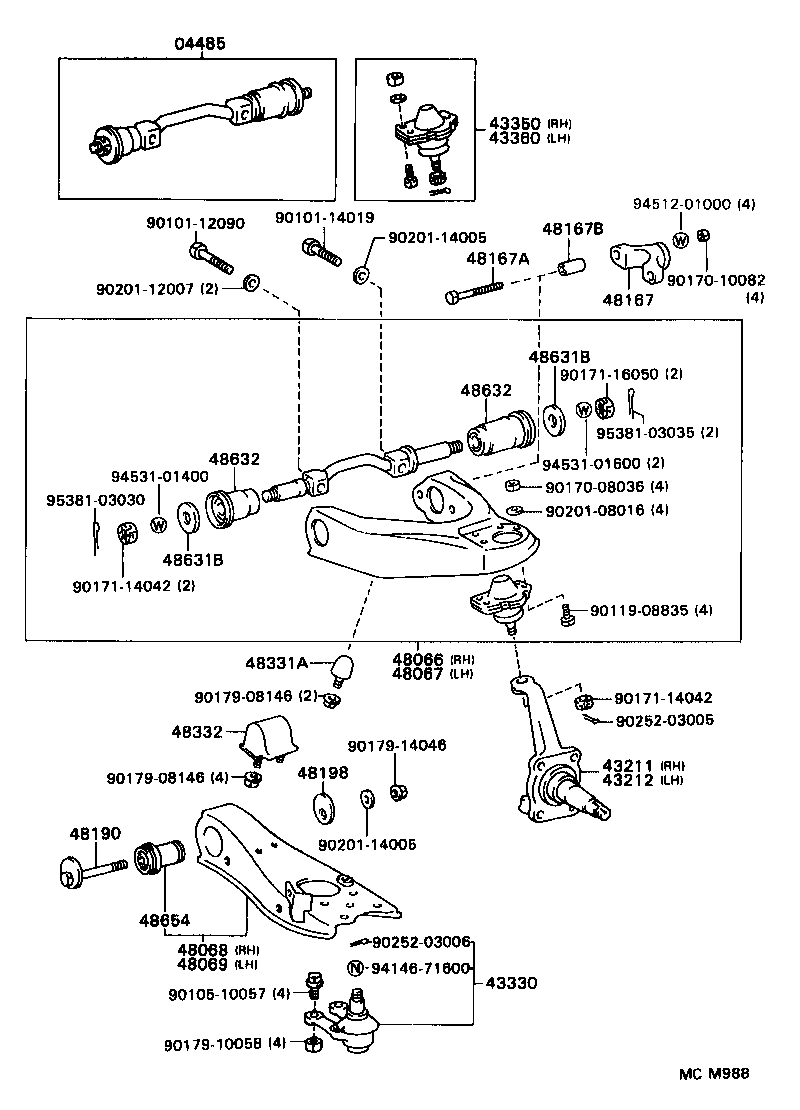

Toyota Liteace van wagon CR27 FRONT AXLE ARM & STEERING KNUCKLE

Part #	Description	Period	Qty
04485 - SHAFT KIT, UPPER SUSPENSION ARM
04485-28020	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
43211 - KNUCKLE, STEERING, RH
43211-28021	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
43212 - KNUCKLE, STEERING, LH
43211-28021	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-29175	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
43350 - JOINT ASSY, FRONT UPPER BALL, RH
43350-29076	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
43360 - JOINT ASSY, FRONT UPPER BALL, LH
43350-29076	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48610-28013	CR2#,KR2#,YR2#	01/1992 - 11/1994	1
48610-28030	CR2#,YR2#	11/1994 - 01/1995	1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48630-28013	CR2#,KR2#,YR2#	01/1992 - 11/1994	1
48630-28030	CR2#,YR2#	11/1994 - 01/1995	1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28070	CR2#,KR2#,YR2#	01/1992 - 04/1994	1
48068-28080	CR2#,YR2#	04/1994 - 01/1995	1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28070	CR2#,KR2#,YR2#	01/1992 - 04/1994	1
48069-28080	CR2#,YR2#	04/1994 - 01/1995	1
48167 - ARM, TORQUE
48106-27040	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
48167A - BOLT(FOR TORQUE ARM SETTING)
90101-10177	CR2#,KR2#,YR2#	01/1992 - 01/1995	4
48167B - TUBE(FOR TORQUE ARM SETTING BOLT)
90440-17029	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
48190 - CAM ASSY, CAMBER ADJUST
48190-27020	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
48198 - CAM, CAMBER ADJUST, NO.2
48198-27010	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
48331A - BUMPER, FRONT SPRING, NO.1
48305-30030	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
48332 - BUMPER, FRONT SPRING, NO.2
48331-27060	CR2#,KR2#,YR2#	01/1992 - 11/1994	2
48331-27051	CR2#,YR2#	11/1994 - 01/1995	2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02048	CR2#,KR2#,YR2# RR	01/1992 - 11/1994	2
90560-16019	CR2#,YR2# FR	11/1994 - 01/1995	2
90948-02049	CR2#,KR2#,YR2# FR	01/1992 - 11/1994	2
90560-14023	CR2#,YR2# RR	11/1994 - 01/1995	2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02048	CR2#,KR2#,YR2# RR	01/1992 - 11/1994	2
90560-16019	CR2#,YR2# FR	11/1994 - 01/1995	2
90948-02049	CR2#,KR2#,YR2# FR	01/1992 - 11/1994	2
90560-14023	CR2#,YR2# RR	11/1994 - 01/1995	2
48632 - BUSH, UPPER ARM
48632-27010	CR2#,KR2#,YR2# FR	01/1992 - 11/1994	2
48632-28050	CR2#,YR2# FR	11/1994 - 01/1995	2
48635-28010	CR2#,KR2#,YR2# RR	01/1992 - 11/1994	2
48635-28060	CR2#,YR2# RR	11/1994 - 01/1995	2
48632 - BUSH, UPPER ARM
48632-27010	CR2#,KR2#,YR2# FR	01/1992 - 11/1994	2
48632-28050	CR2#,YR2# FR	11/1994 - 01/1995	2
48635-28010	CR2#,KR2#,YR2# RR	01/1992 - 11/1994	2
48635-28060	CR2#,YR2# RR	11/1994 - 01/1995	2
48654 - BUSH, LOWER ARM
48061-27011	CR2#,KR2#,YR2#	01/1992 - 01/1995	2
Common parts
90101-12090
90101-14019
90105-10057
90119-08835
90170-08036
90170-10082
90171-14042
90171-16050
90179-08146
90179-10058
90179-14046
90201-08016
90201-12007
90201-14005
90252-03005
90252-03006
94146-71600
94512-01000
94531-01400
94531-01600
95381-03030
95381-03035

CR27LV-MRSBEW (1992)

(9201- )
