CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon

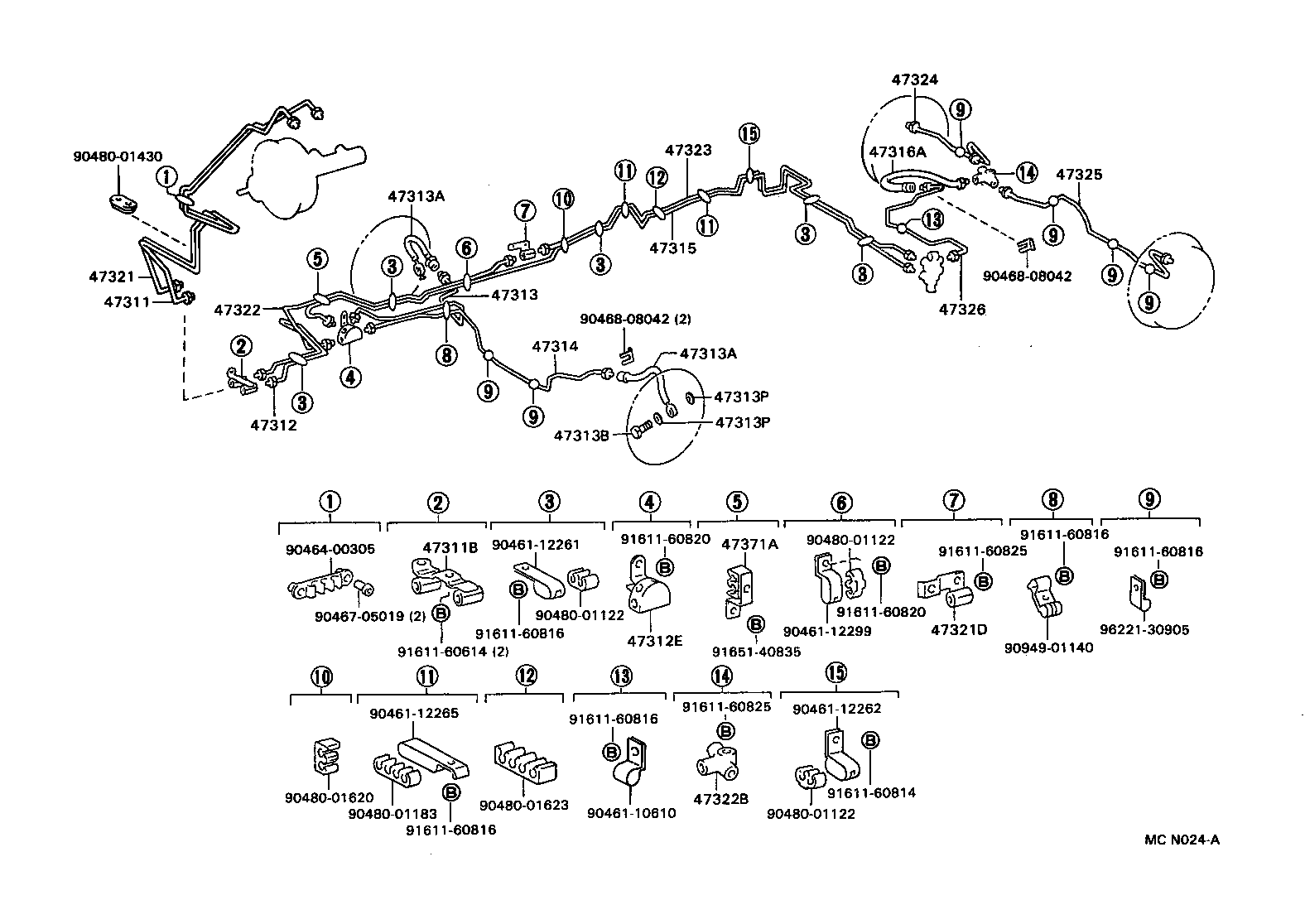

ILLUST NO. 1 OF 2(9201- )CR27,KR27,YR29..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-28350 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10097 |
CR2#,KR2#,YR2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-28190 |
CR27,KR27,YR29 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90414-10014 |
CR2#,KR2#,YR2# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-28110 |
CR27,KR27,YR29 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02505 |
CR27,KR27,YR29 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02505 |
CR27,KR27,YR29 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CR27,KR27,YR29 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CR27,KR27,YR29 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CR27,KR27,YR29 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-28120 |
CR27,KR27,YR29 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-28160 |
CR27,KR27,YR29 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02442 |
CR27,KR27,YR29 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-28350 |
CR2#,KR2#,YR2#..LHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10133 |
CR27,KR27,YR29 |
1 | ||
| 90412-10063 |
CR27,KR27,YR29 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-28180 |
CR27,KR27,YR29 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
CR27,KR27,YR29 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-28290 |
CR27,KR27,YR29 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-28170 |
CR27,KR27 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-28170 |
CR27,KR27 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-28150 |
CR27,KR27,YR29 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-28030 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 90461-10610 | ||||
| 90461-12261 | ||||
| 90461-12262 | ||||
| 90461-12265 | ||||
| 90461-12299 | ||||
| 90464-00305 | ||||
| 90467-05019 | ||||
| 90468-08042 | ||||
| 90480-01122 | ||||
| 90480-01183 | ||||
| 90480-01430 | ||||
| 90480-01620 | ||||
| 90480-01623 | ||||
| 90949-01140 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91651-40835 | ||||
| 96221-30905 | ||||

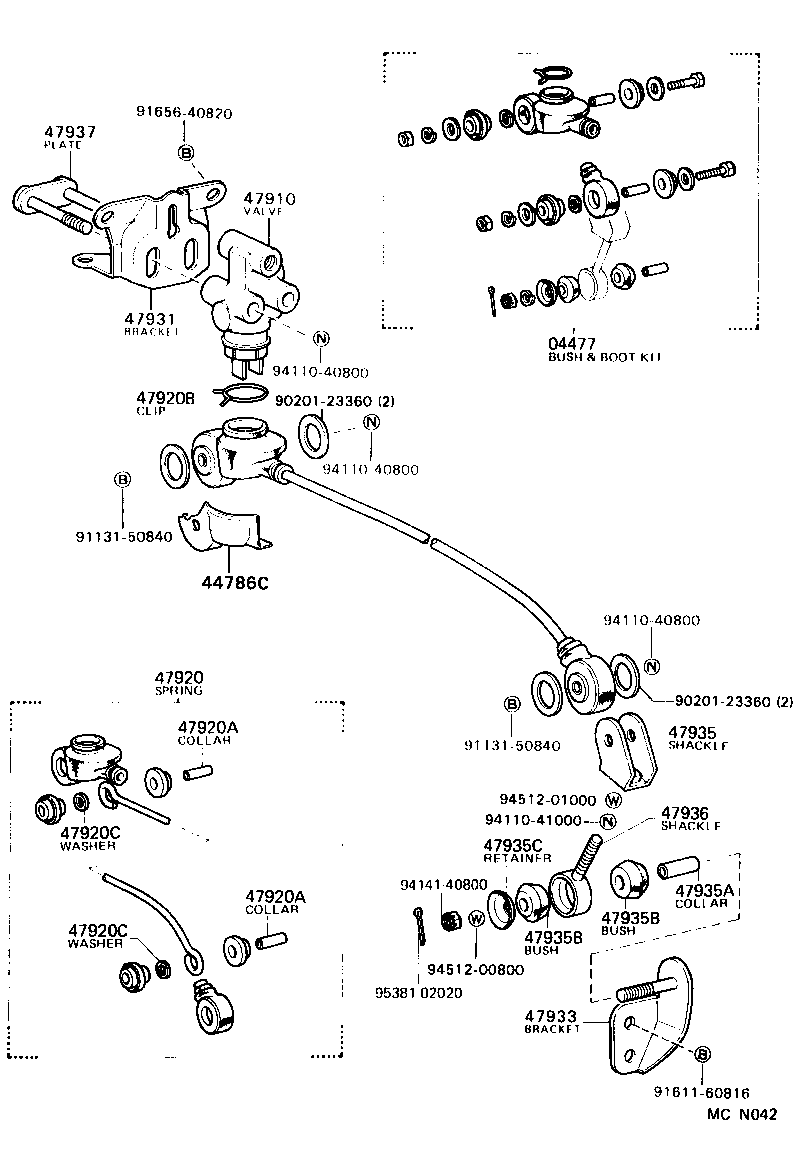

ILLUST NO. 2 OF 2(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
CR2#,KR2#,YR2# |
1 | ||
| 44786C - INSULATOR, LOAD SENSING VALVE HEAT | ||||
| 44786-28040 |
CR2#,KR2#,YR2# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-28110 |
CR27,KR27,YR29 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-28080 |
CR27,KR27 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
CR2#,KR2#,YR2# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
CR2#,KR2#,YR2# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
CR2#,KR2#,YR2# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
CR2#,KR2#,YR2# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
CR2#,KR2#,YR2# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-28030 |
CR2#,KR2#,YR2# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-28060 |
CR27,KR27,YR29 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-28010 |
CR2#,KR2#,YR2# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
CR2#,KR2#,YR2# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
CR2#,KR2#,YR2# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
CR2#,KR2#,YR2# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
CR2#,KR2#,YR2# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
CR2#,KR2#,YR2# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
CR2#,KR2#,YR2# |
1 | ||
| Common parts | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 91656-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
